13156
13236
13242
480
480
92002
92026
92026A
92143
92144
92145
92145A
92153
92161
92200

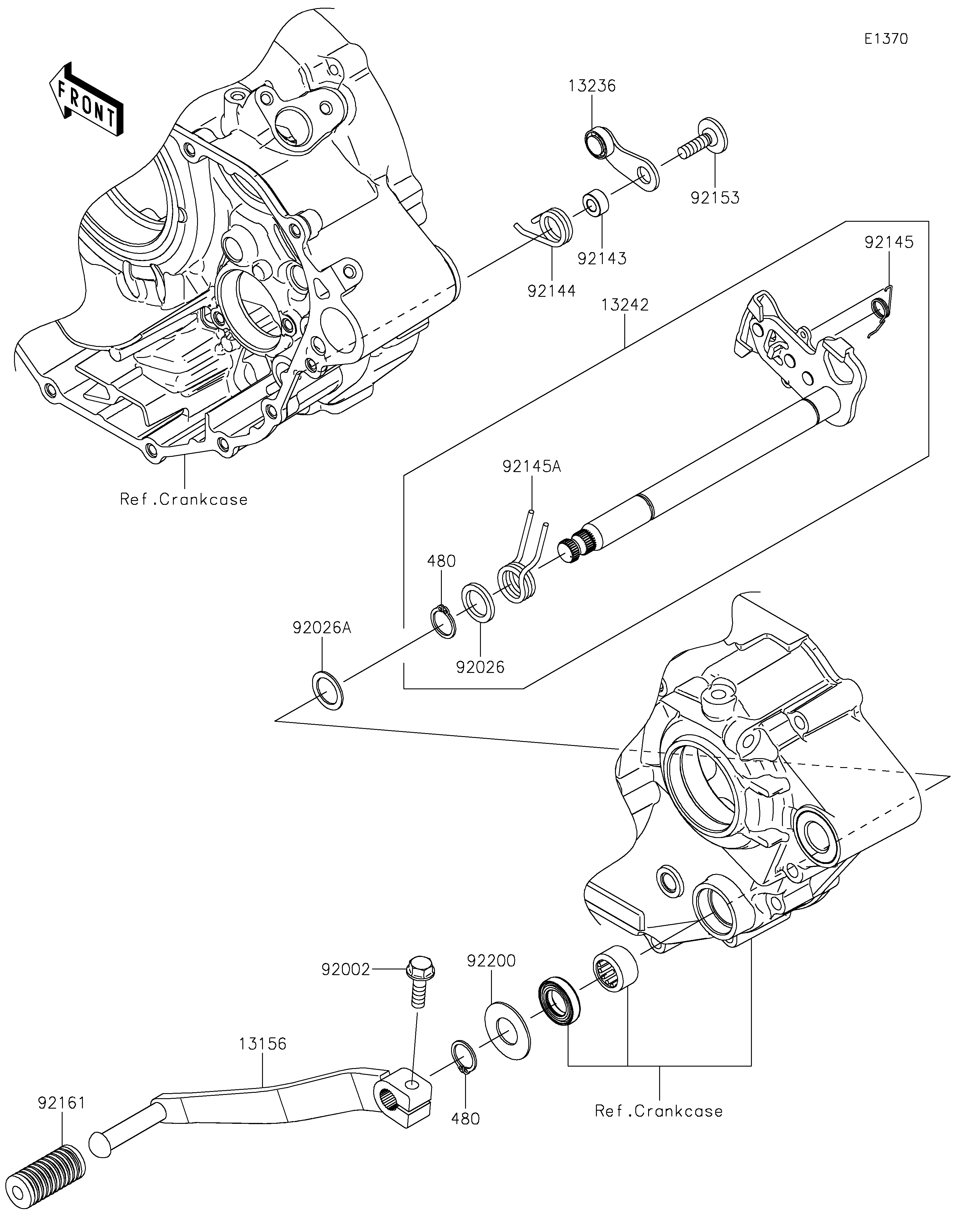

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-CHANGE,PEDAL 13156 13156-0668 1
LEVER-COMP,POSITION 13236 13236-0818 1
LEVER-ASSY-CHANGE 13242 13242-0158 1
CIRCLIP-TYPE-C,14MM 480 480J1400 2
BOLT,6X20 92002 92002-1237 1
SPACER,14X20X2.3 92026 92026-0107 1
SPACER,14X20X1.0 92026A 92026-1534 1
COLLAR 92143 92143-1595 1
SPRING,GEAR POSITION 92144 92144-1523 1
SPRING 92145 92145-0414 1
SPRING,RETURN 92145A 92145-0415 1
BOLT,6X20 92153 92153-1505 1
DAMPER,CHANGE PEDAL 92161 92161-2089 1
WASHER 92200 92200-0265 1
