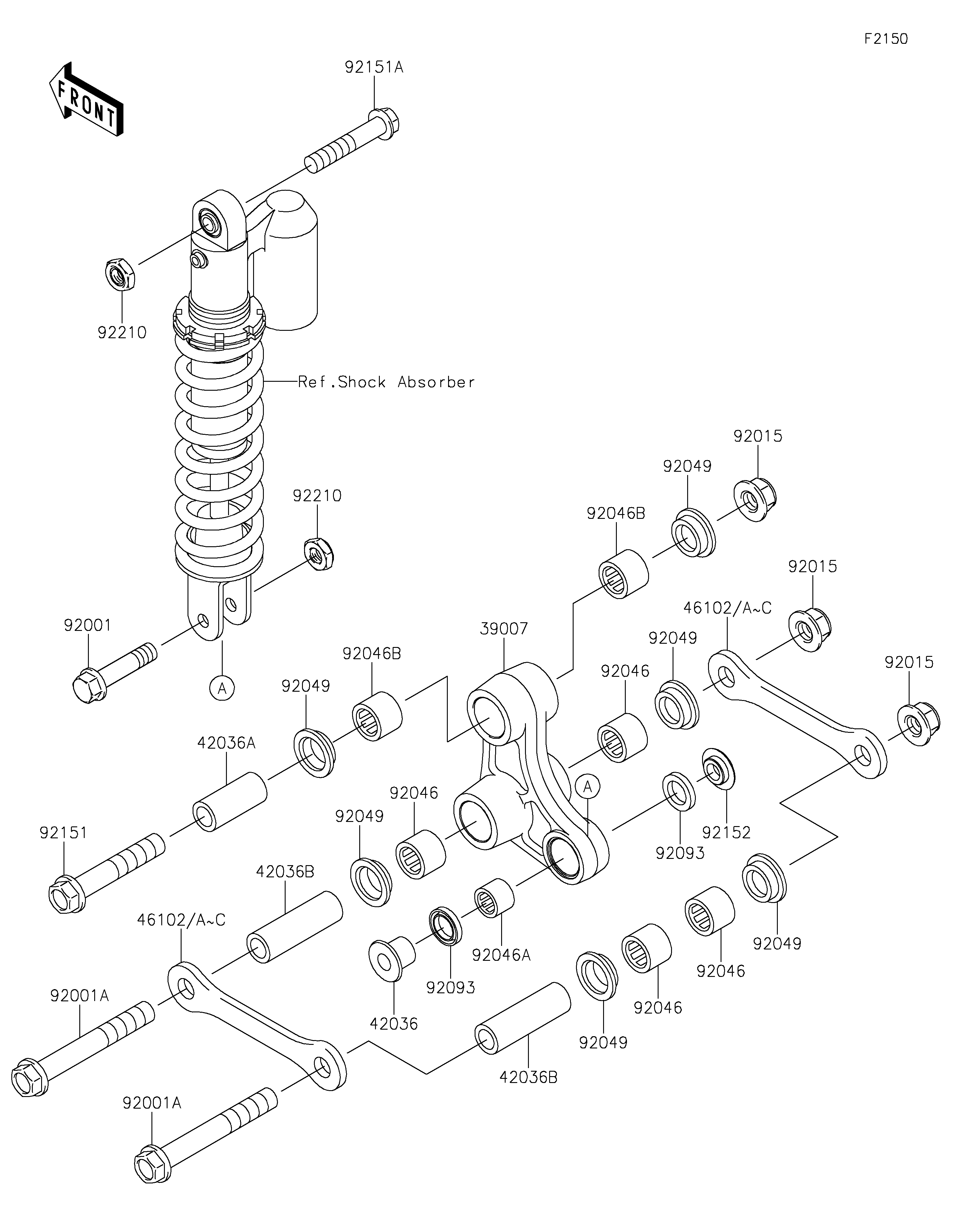

2020 KX™65 - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
39007
42036
42036A
42036B
42036B
46102
46102
46102A
46102A
46102B
46102B
46102C
46102C
92001
92001A
92001A
92015
92015
92015
92046
92046
92046
92046
92046A
92046B
92046B
92049
92049
92049
92049
92049
92049
92093
92093
92151
92151A
92152
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1299 1
SLEEVE 42036 42036-1351 1
SLEEVE,12X18X40 42036A 42036-1364 1
SLEEVE,12X18X61 42036B 42036-1370 2
ROD,SUSPENSION,L=88.3 46102 46102-1430 2 (OPTION)
ROD,SUSPENSION,L=87.3 46102A 46102-1431 2 (OPTION)
ROD,SUSPENSION,L=86.3 46102B 46102-1432 2
ROD,SUSPENSION,L=85.3 46102C 46102-1433 2 (OPTION)
BOLT,FLANGED,10X44 92001 92001-1499 1
BOLT,FLANGED,12X88 92001A 92001-1693 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 3
BEARING-NEEDLE,18BM2416 92046 92046-1144 4
BEARING-NEEDLE,16BM2212 92046A 92046-1192 1
BEARING-NEEDLE,HK1812 92046B 92046-1271 2
SEAL-OIL 92049 92049-1328 6
SEAL 92093 92093-1436 2
BOLT,FLANGED,12X67 92151 92151-1766 1
BOLT,FLANGED,10X54 92151A 92151-1785 1
COLLAR 92152 92152-1139 1
NUT,LOCK,10MM 92210 92210-1184 2
