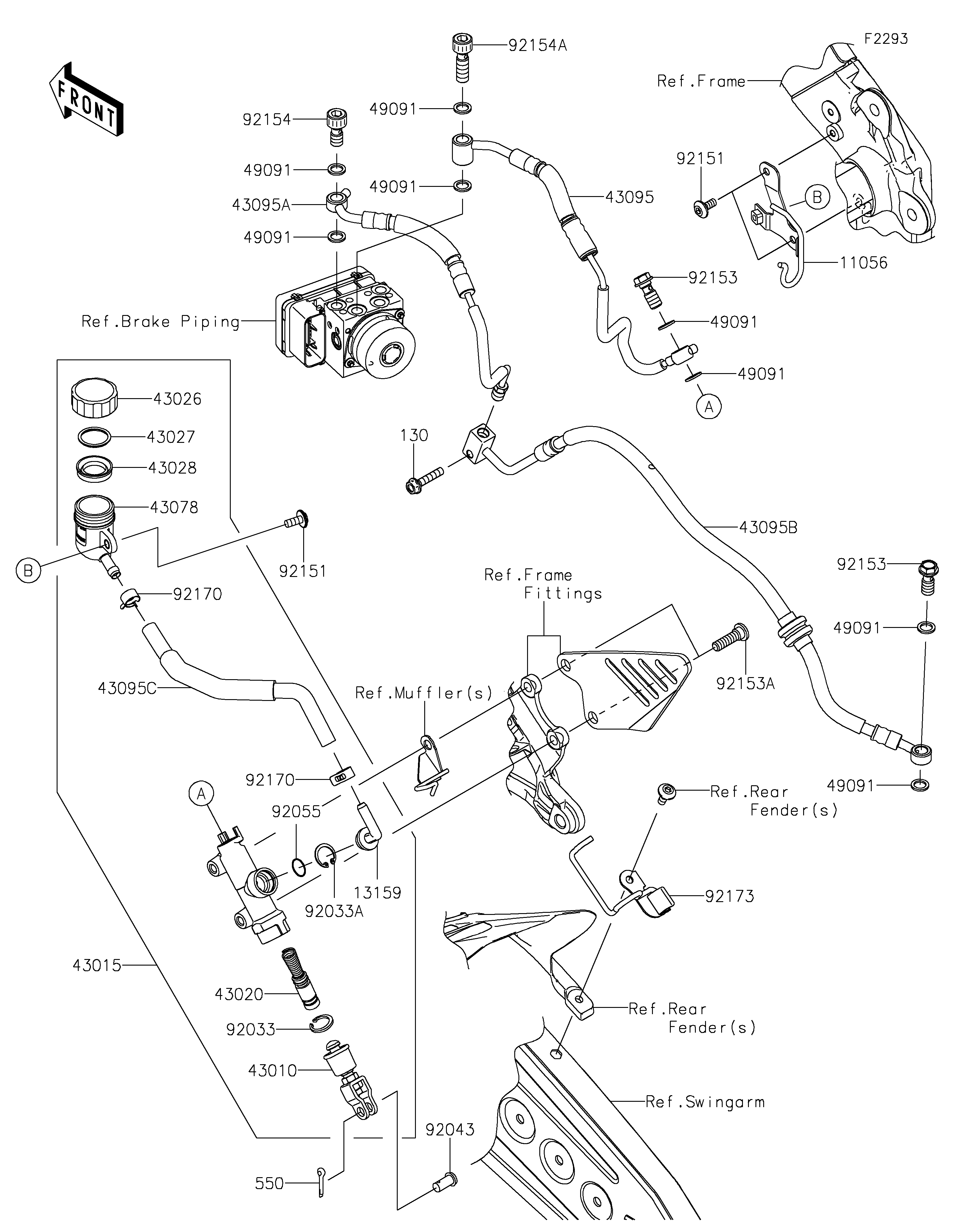

2016 Ninja ZX-6R ABS - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11056
130
13159
43010
43015
43020
43026
43027
43028
43078
43095
43095A
43095B
43095C
49091
49091
49091
49091
49091
49091
49091
49091
550
92033
92033A
92043
92055
92151
92151
92153
92153
92153A
92154
92154A
92170
92170
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-2051 1
BOLT-FLANGED,6X30 130 130BA0630 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0575 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1070 1
PLATE-DIAPHRAGM 43027 43027-1054 1
DIAPHRAGM 43028 43028-1073 1
RESERVOIR 43078 43078-1102 1
HOSE-BRAKE,RR,MC-HU,JOINT 43095 43095-0731 1
HOSE-BRAKE,RR,HU-MC,JOINT 43095A 43095-0732 1
HOSE-BRAKE,RR,HU-CALIPER 43095B 43095-0736 1
HOSE-BRAKE,RR MC 43095C 43095-0737 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 8
PIN-COTTER,2.0X15 550 550AA2015 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN,8X17 92043 92043-0104 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,SOCKET,6X14 92151 92151-1654 3
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,SOCKET,8X30 92153A 92153-1624 2
BOLT,BANJO,10X20.8 92154 92154-1121 1
BOLT,BANJO,10X32.3 92154A 92154-1122 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP 92173 92173-1048 1
