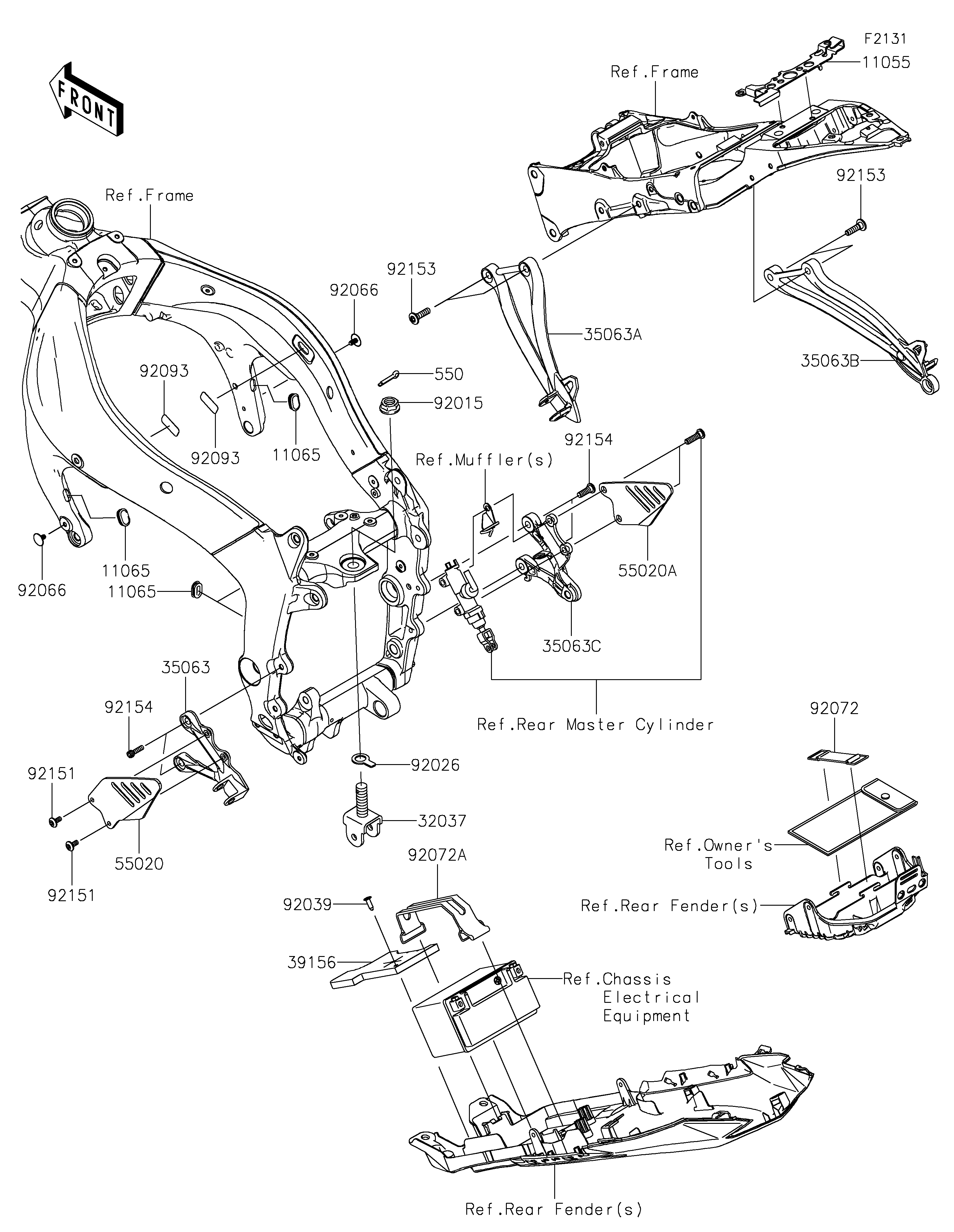

2016 Ninja ZX-6R ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11055
11065
11065
11065
32037
35063
35063A
35063B
35063C
39156
550
55020
55020A
92015
92026
92039
92066
92066
92072
92072A
92093
92093
92151
92151
92153
92153
92154
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HELMET HOLDER 11055 11055-1011 1
CAP 11065 11065-0095 4
BRACKET-SHOCKABSORBER 32037 32037-1887 1
STAY,FR,LH,F.S.BLACK 35063 35063-0160-18R 1
STAY,RR,LH,F.S.BLACK 35063A 35063-0444-18R 1
STAY,RR,RH,F.S.BLACK 35063B 35063-0445-18R 1
STAY,FR,RH,F.S.BLACK 35063C 35063-0590-18R 1
PAD 39156 39156-1000 1
PIN-COTTER,3X25 550 550S3025 1
GUARD,HEEL,LH 55020 55020-0859 1
GUARD,HEEL,RH 55020A 55020-0860 1
NUT,FLANGED,16MM 92015 92015-1881 1
SPACER,16.5X26X2 92026 92026-0747 1
RIVET 92039 92039-0068 1
PLUG,6X17 92066 92066-0751 2
BAND 92072 92072-012 1
BAND,L=168 92072A 92072-1306 1
SEAL 92093 92093-0154 2
BOLT,SOCKET,6X14 92151 92151-1654 2
BOLT,SOCKET,8X30 92153 92153-1630 4
BOLT,SOCKET,8X25 92154 92154-1149 4
