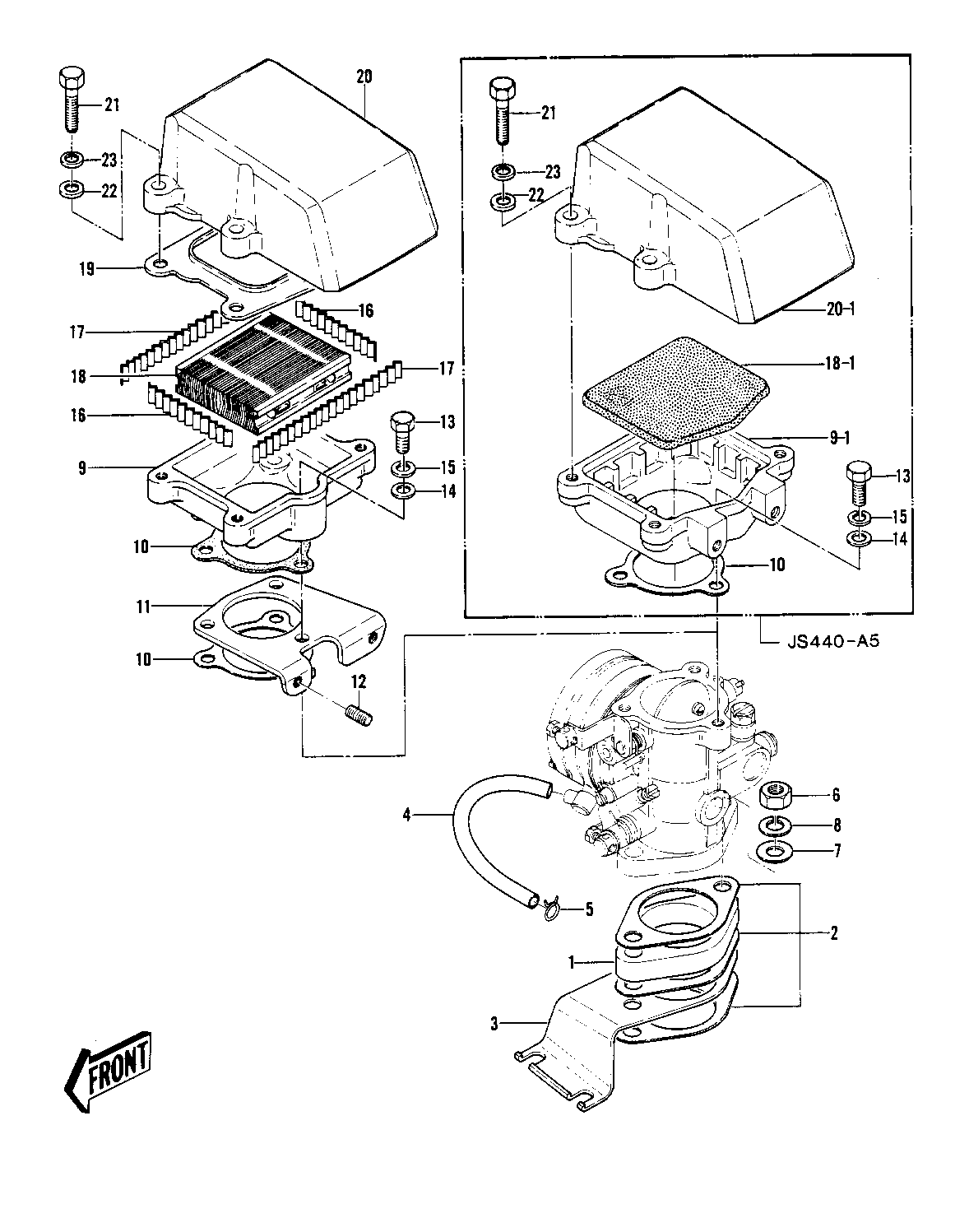

1981 JS440 - CARBURETOR BRACKETS/FLAME ARRESTER ('79-

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
INSULATOR 1 16061-511 1
GASKET,INSULATOR 2 11009-3786 3
BRACKET,CONTROL 3 11034-3004 1
PIPE,PULS 4 92059-518 1
CLAMP,SPARK PLUG CAP 5 92037-1173 1
NUT,8MM 6 312R0800 2
WASHER 7 410S0800 2
WASHER SPRING 8MM 8 461S0800 2
CASE,FLAME ARRESTER 9 59021-527-9G 1
GASKET 10 11060-3702 2
BRACKET,CARBURETOR 11 11034-3003 1
STUD,6X12 12 171R0612 2
BOLT,HEX HEAD,6X25 13 110R0625 3
WASHER 14 410S0600 3
WASHER-SPRING,6MM 15 461S0600 3
SPRING 16 92081-544 2
SPRING 17 92081-545 2
ARRESTER,FLAME 18 59006-502 1
PLATE,FLAME ARRESTER 19 59086-540 1
COVER,AIR INTAKE 20 59036-563 1
BOLT,6X30 21 92001-3022 4
WASHER 22 410S0600 4
WASHER-SPRING,6MM 23 461S0600 4
