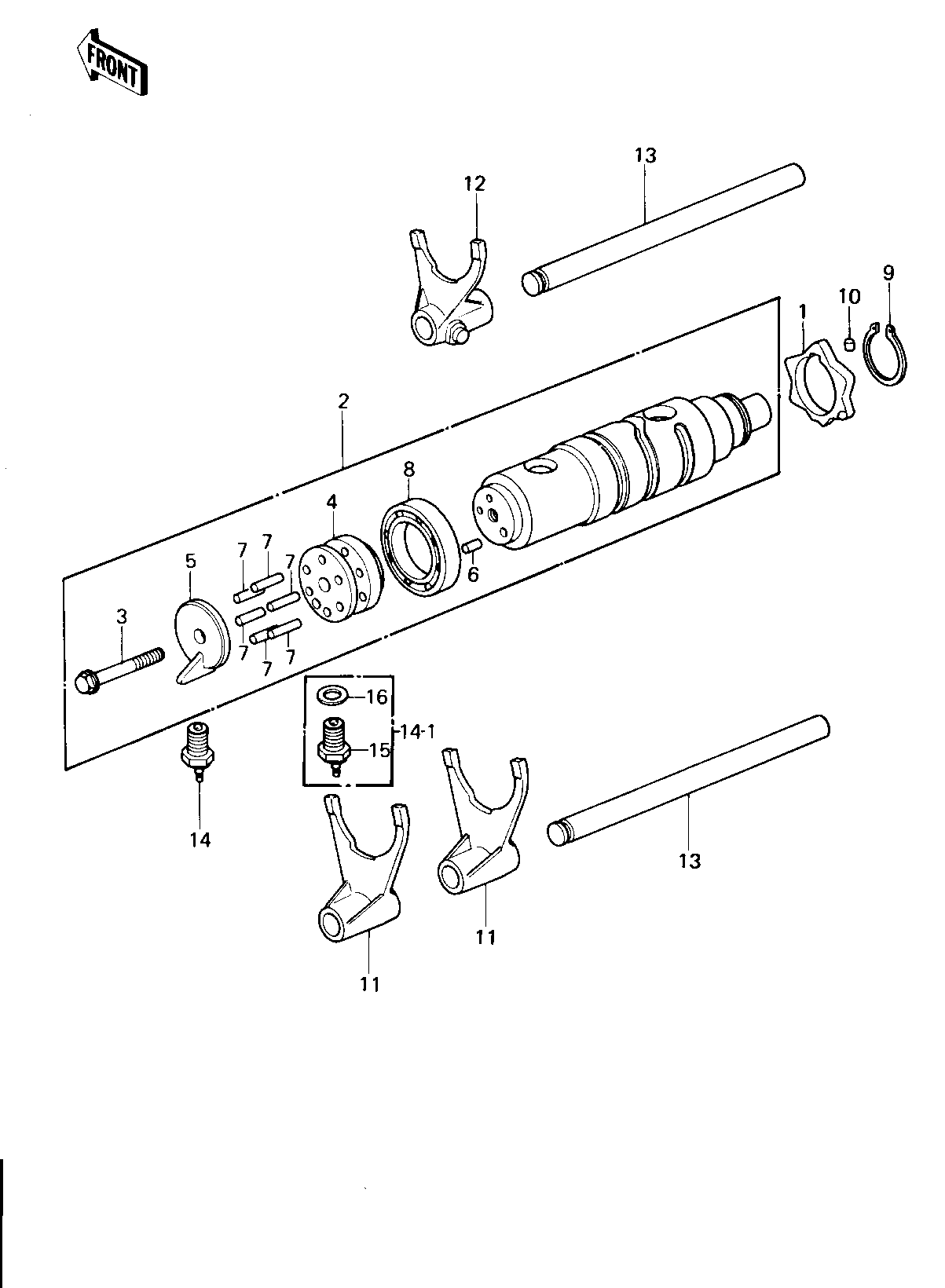

1980 KZ1300-B2 - GEAR CHANGE DRUM & FORKS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAM-CHANGE DRUM | 1 | 13145-1058 | 1 | ||
| DRUM ASSY,CHANGE | 2 | 13239-1020 | 1 | ||
| BOLT,FLANGED,6X45 | 3 | 130G0645 | 1 | ||
| HOLDER,BEARING | 4 | 13091-1032 | 1 | ||
| HOLDER,DRUM PIN | 5 | 13091-1033 | 1 | ||
| PIN DOWEL 4X8 | 6 | 610A0408 | 1 | ||
| PIN GEAR CHANGE DRUM | 7 | 92042-014 | 6 | ||
| BEARING,BALL,#6906 | 8 | 92045-1016 | 1 | ||
| CIRCLIP,30MM | 9 | 480J3000 | 1 | ||
| PIN-DOWEL,4X6 | 10 | 610A0406 | 1 | ||
| FORK,SHIFT,LOW,2ND,3D | 11 | 13140-1019 | 2 | ||
| FORK,SHIFT,4TH & TOP | 12 | 13140-1020 | 1 | ||
| ROD,SHIFT,12X173 | 13 | 49047-1008 | 2 | ||
| SWITCH,NEUTRAL | 14 | 13151-5002 | 1 | E/NO. 000101~010783 | |
| SWITCH,NEUTRAL | 14-1 | 13151-5002 | 1 | ||
| SWITCH,NEUTRAL | 15 | 13151-1007 | 1 | E/NO. 010784~ | |
| GASKET CHECK VALVE | 16 | 92065-058 | 1 | E/NO. 010784~ |
| CAM-CHANGE DRUM | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DRUM ASSY,CHANGE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X45 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,BEARING | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,DRUM PIN | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN DOWEL 4X8 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN GEAR CHANGE DRUM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL,#6906 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,30MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL,4X6 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FORK,SHIFT,LOW,2ND,3D | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FORK,SHIFT,4TH & TOP | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,SHIFT,12X173 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SWITCH,NEUTRAL | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO. 000101~010783 |
| SWITCH,NEUTRAL | |
| REF # | 14-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,NEUTRAL | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO. 010784~ |
| GASKET CHECK VALVE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO. 010784~ |
