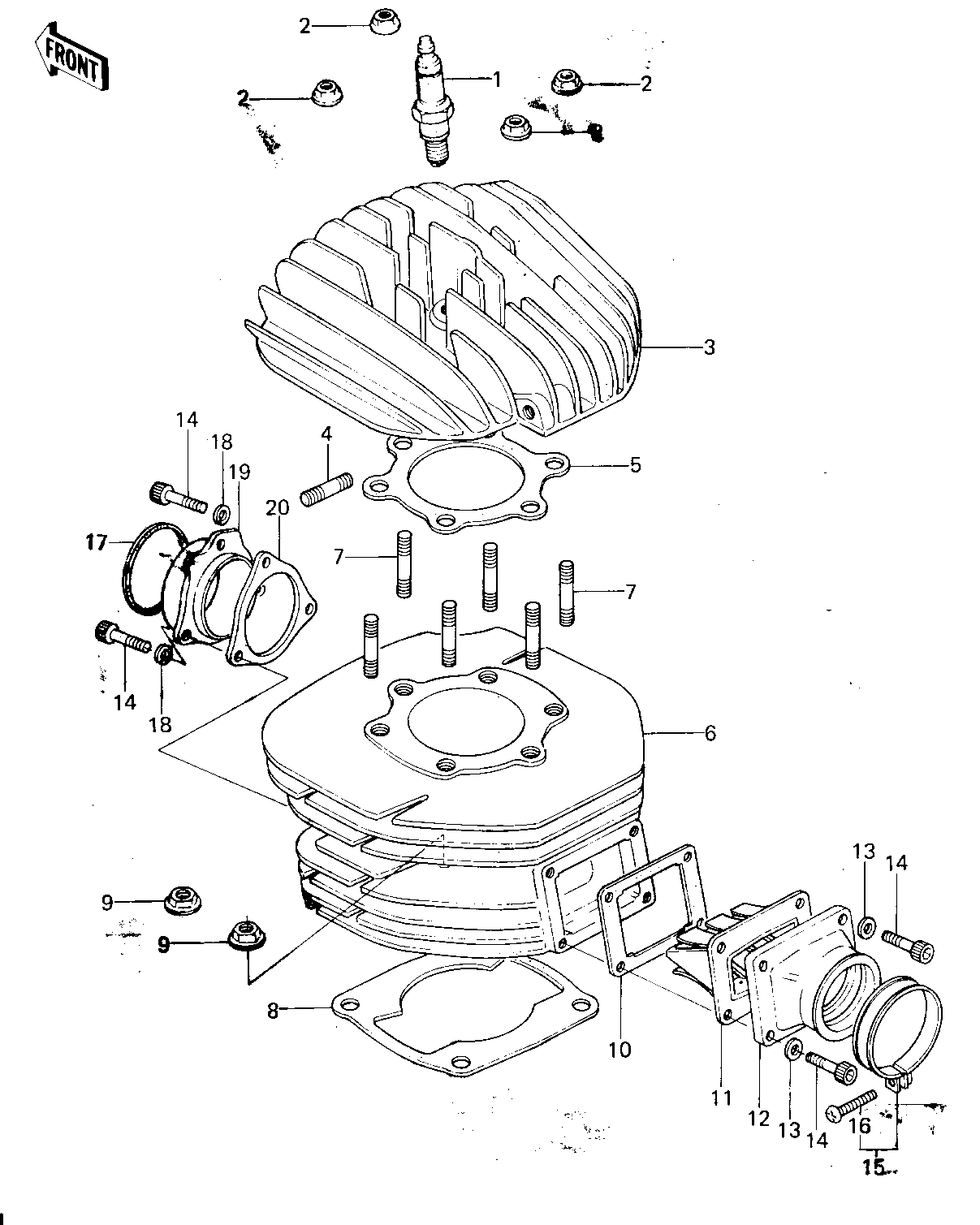

1979 KX250-A5 - CYLINDER HEAD/CYLINDER/REED VALVE (78-79
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPARK PLUG B9EV | 1 | B9EV | |||
| SPARK PLUG BR9EV | 1 | 92070-3002 | |||
| NUT,8M/M | 2 | 92015-1014 | |||
| CYLINDER HEAD,F BLACK | 3 | 11001-1031 | |||
| STUD,10X18 | 4 | 172G1018 | |||
| GASKET,CYL HEAD | 5 | 11004-1012 | |||
| CYLINDER,ELECTRO-FUSE | 6 | 11005-1034 | KX250-A4 | ||
| CYLINDER,ELECTRO-FUSE | 6 | 11005-1034 | KX250-A5+ | ||
| STUD 8X40 | 7 | 172G0840 | |||
| GASKET,CYLINDER BASE | 8 | 11009-038 | |||
| NUT,10M/M | 9 | 92015-1021 | |||
| GASKET,REED VALVE | 10 | 11009-1018 | |||
| VALVE ASSY,REED | 11 | 12021-1001 | KX250-A4 | ||
| VALVE ASSY,REED | 11 | 12021-1007 | KX250-A5 | ||
| HOLDER,CARBURETOR | 12 | 16065-1005 | |||
| WASHER PLAIN 6MM | 13 | 410B0600 | |||
| BOLT,SOCKET,6X25,BLAC | 14 | 120S0625 | |||
| CLAMP,CARBURETOR HLDR | 15 | 92037-116 | |||
| SCREW-PAN-CROS | 16 | 220B0535 | |||
| UNAVAILABLE IN PRICE BOOK | 17 | USE 56019-102 | |||
| GASKET,EXHAUST HOLDER | 17 | 11009-1123 | KX250-A5+ | ||
| WASHER SPRING 6MM | 18 | 461F0600 | |||
| HOLDER,EXHAUST PIPE | 19 | 18069-1001 | |||
| GASKET,EXHAUST PIPE | 20 | 11009-1017 |
