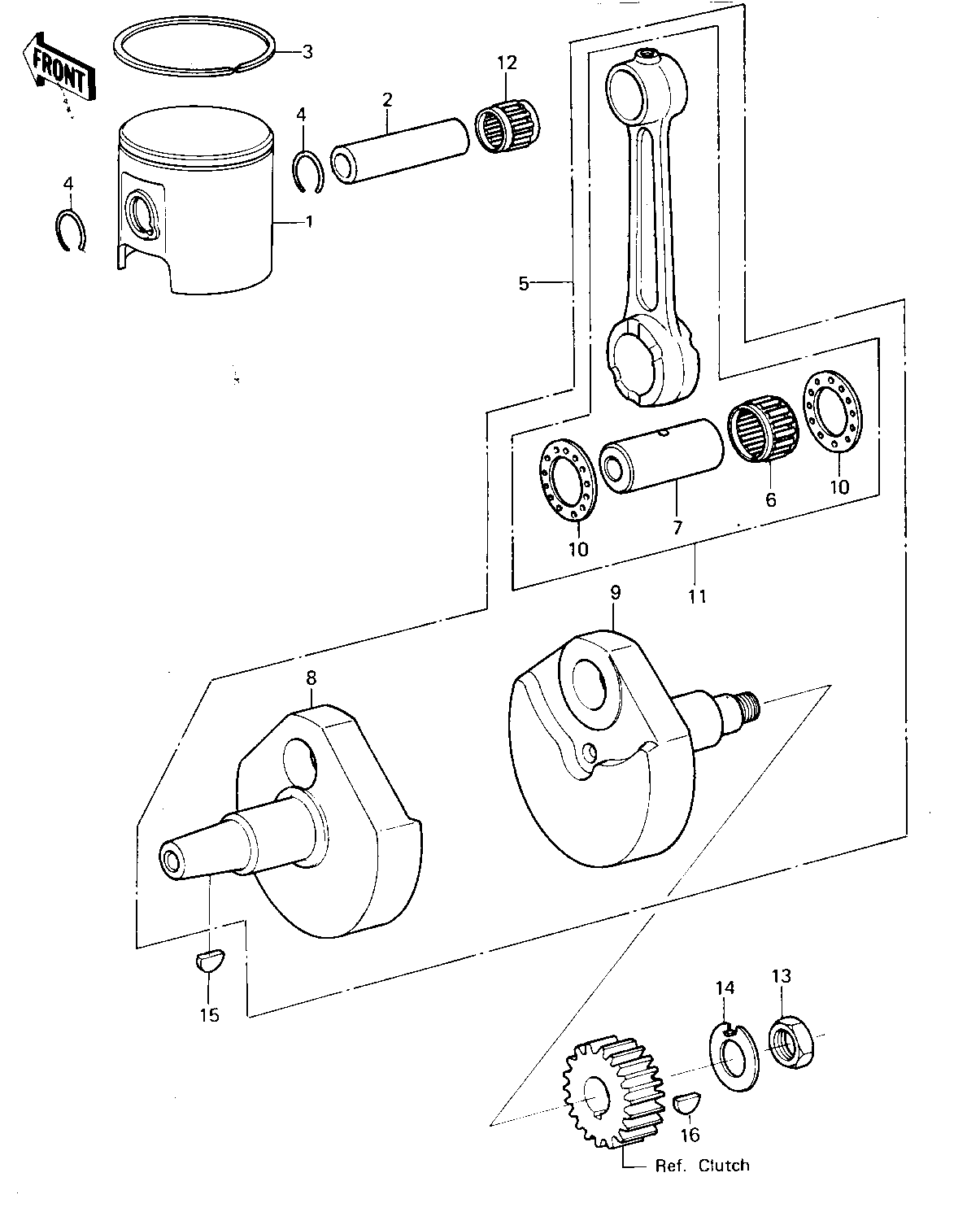

1980 KX125 - CRANKSHAFT/PISTON ('80 A6)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON-ENGINE | 1 | 13001-1052 | 1 | ||
| PIN-PISTON | 2 | 13002-1003 | 1 | ||
| RING,PISTON,S.T.D | 3 | 13003-1060 | 1 | ||
| CIRCLIP PISTON PIN | 4 | 92036-004 | 2 | ||
| CRANKSHAFT ASSY | 5 | 13031-1032 | 1 | ||
| NEEDLE BEARING,BIG EN | 6 | 13034-1002 | 1 | ||
| PIN,CRANK | 7 | 13035-1001 | 1 | ||
| CRANKSHAFT,L.H | 8 | 13037-1062 | 1 | ||
| CRANKSHAFT,R.H | 9 | 13037-1063 | 1 | ||
| WASHER SIDE | 10 | 92026-011 | 2 | ||
| CONNECTING ROD ASSY | 11 | 13044-5017 | 1 | ||
| NEEDLE BEARING,SML EN | 12 | 13033-1001 | 1 | ||
| NUT 12MM | 13 | 92015-006 | 1 | ||
| WASHER,LOCK | 14 | 92022-1063 | 1 | ||
| WOODRUFF KEY | 15 | 92038-001 | 1 | ||
| WOODRUFF KEY PRY PINI | 16 | 92038-003 | 1 |
| PISTON-ENGINE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,PISTON,S.T.D | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP PISTON PIN | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT ASSY | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NEEDLE BEARING,BIG EN | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,CRANK | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,L.H | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,R.H | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SIDE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CONNECTING ROD ASSY | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NEEDLE BEARING,SML EN | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 12MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY PRY PINI | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
