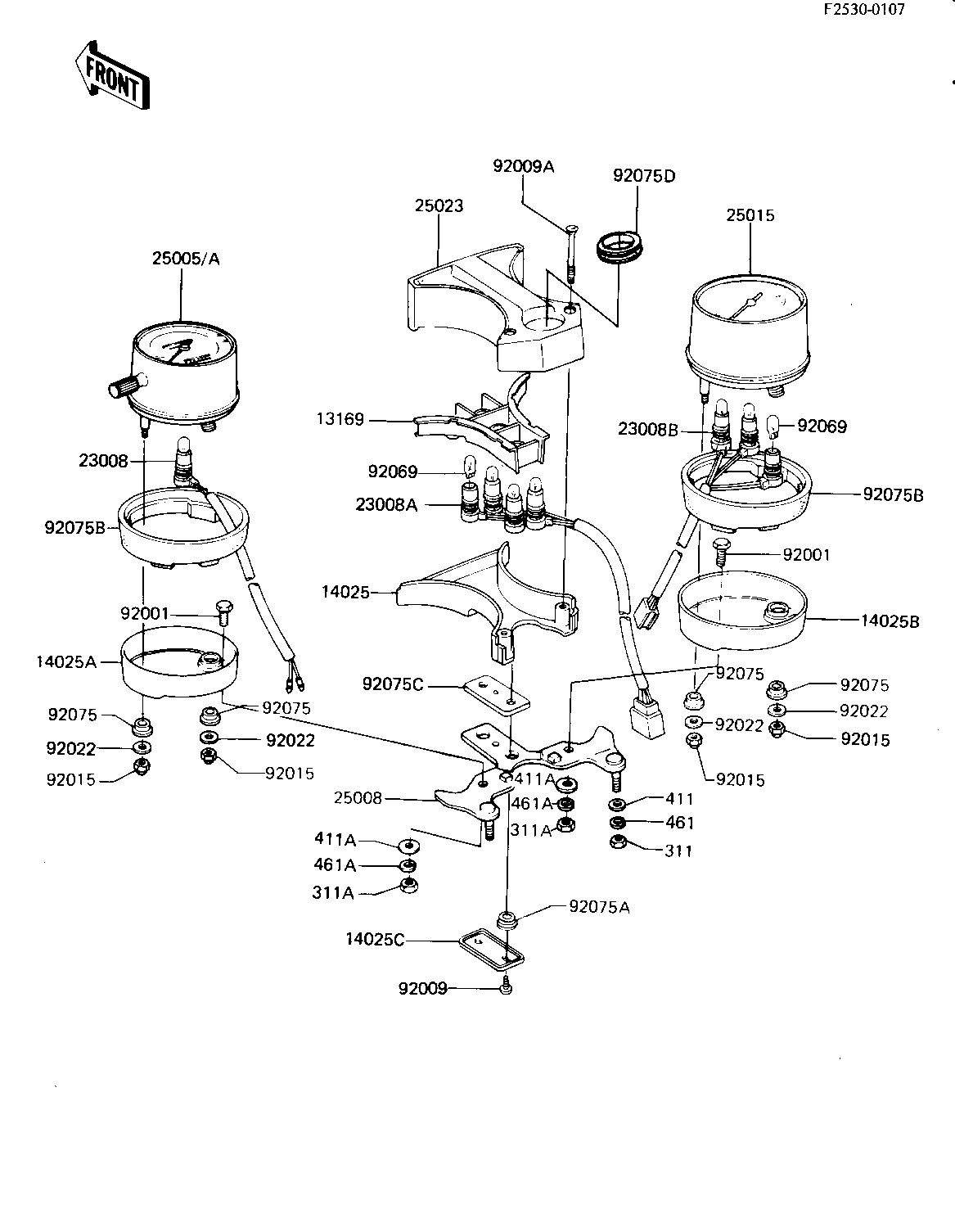

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,SOCKET 13169 13169-1133 1
COVER,PILOT BOX,LOWER 14025 14025-1093 1
COVER,SPEEDOMETER 14025A 14025-1094 1
COVER,TACHOMETER 14025B 14025-1095 1
COVER,PILOT BOX DAMPR 14025C 14025-1096 1
SOCKET-ASSY 23008 23008-1116 1
SOCKET-ASSY 23008A 23008-1119 1
SOCKET-ASSY,TACHOMETE 23008B 23008-1121 1
SPEEDOMETER,KPH (Canada) 25005 25005-1053 1 CN
SPEEDOMETER,MPH 25005A 25005-1165 1 US
BRACKET,METER 25008 25008-1021 1
TACHOMETER,X1000R/MIN 25015 25015-1068 1
COVER,PILOT BOX,UPPER 25023 25023-1008 1
BOLT,METER,8X16 92001 92001-1154 2
SCREW,TAPPING,4X10 92009 92009-1040 2
SCREW-CSK-RD-CROS,4X4 92009A 222C0445 2
NUT-CAP,5MM 92015 322C0500 4
WASHER,5.2X16X16X1.2T 92022 25009-004 4
BULB,12V3.4W 92069 92069-1007 8
DAMPER RUBBER-METER 92075 25019-013 4
DAMPER RUBBER,MET FIT 92075A 25019-023 2
DAMPER,METER 92075B 92075-1498 2
DAMPER,PILOT BOX 92075C 92075-1136 1
DAMPER,PILOT BOX 92075D 92075-1204 1
NUT 6MM 311 311B0600 2
NUT,8MM 311A 311B0800 2
WASHER PLAIN 6MM 411 411B0600 2
WASHER PLAIN 8MM 411A 411B0800 2
WASHER SPRING 6MM 461 461F0600 2
WASHER SPRING 8MM 461A 461F0800 2
