KLX®230SM

LIGHTWEIGHT SUPERMOTO FOR NIMBLE STREET RIDING

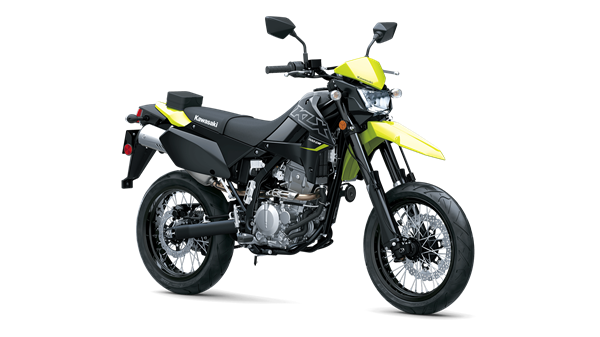

2023 KLX®230SM
SPECS
GALLERY
ACCESSORIES & MERCHANDISE
OFFERS

2023 KLX®230SM

OVERVIEW

SPECS GALLERY OFFERS

COMPARE LOCATE A DEALER

MSRP NON-ABS

$5,299
/
MSRP ABS

$5,599

$600 SAVINGS

Destination Charge $245

Commodity Surcharge $300

Dealer sets the actual destination charge, your price may vary.

Specifications and pricing are subject to change.

DISCOVER GREAT DEALS TODAY

Save up to $2,500 on select models* or receive promotional financing discounts** on qualified vehicle purchases. Click below for offer details.

START SAVING TODAY

MODEL SPECS

Select a Color

Select a View

SUPERMOTO-TUNED

LONG-TRAVEL SUSPENSION

17" FRONT & REAR WHEELS

WITH ROAD TIRES

Click on a technology to learn more.

Chassis Management Technology

ABS (Anti-lock Brake System)

POWER
Engine	4-stroke single, SOHC, air-cooled
Displacement	233cc
Bore x Stroke	67.0 x 66.0mm
Compression Ratio	9.4:1
Fuel System	DFI® with 32mm Keihin throttle body
Ignition	TCBI with Electronic Advance
Transmission	6-speed, return shift with wet multi-disc manual clutch
Final Drive	Chain

PERFORMANCE
Front Suspension / Wheel Travel	37mm telescopic fork/8.0 in
Rear Suspension / Wheel Travel	Uni-Trak® linkage system and single shock with adjustable spring preload/8.6 in
Front Tire	110/70-17
Rear Tire	120/70-17
Front Brakes	Single 300mm petal disc with a dual-piston caliper (and ABS)
Rear Brakes	Single 220mm petal disc with single-piston caliper (and ABS)

DETAILS
Frame Type	High-tensile steel, box-section perimeter
Rake/Trail	27.5°/4.6 in
Overall Length	80.7 in
Overall Width	32.9 in
Overall Height	44.1 in
Ground Clearance	9.1 in
Seat Height	33.3 in
Curb Weight	297.7 lb* (ABS), 299.9 lb* (ABS) CA Model / 295.5 lb* (non-ABS), 297.7 lb* (non-ABS) CA Model
Fuel Capacity	2.0 gal
Wheelbase	54.1 in
Color Choices	Lime Green, Oriental Blue
Warranty	12 Months
Kawasaki Protection Plus™ (optional)	12, 24, or 36 months

VIEW WARRANTY INFO DOWNLOAD SPECS

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2024 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
