32160
32160A
32160B
92045
92045
92049
92049A
92153
92153
92154
92154
92200
92200A
92210
92210A
92210B
92210B
92210C

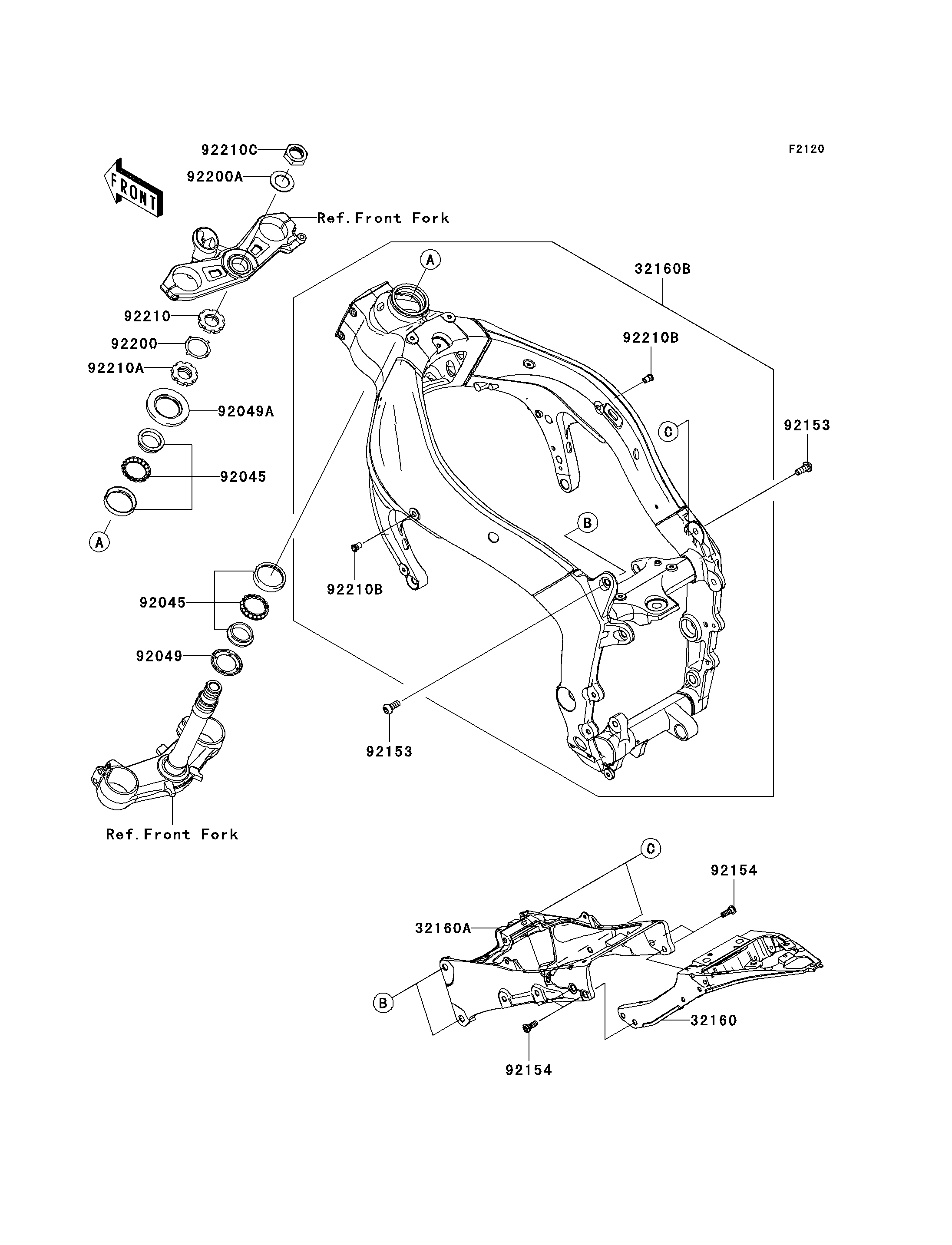

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,RR,RR 32160 32160-0398 1
FRAME-COMP,RR,FR 32160A 32160-0399 1
FRAME-COMP,FR 32160B 32160-0423 1
BEARING-BALL,SF07A17PX1V1 92045 92045-1384 2
SEAL-OIL,DS35X55X4 92049 92049-0022 1
SEAL-OIL,XMH 43 75 6.4J 92049A 92049-1382 1
BOLT,SOCKET,10X25 92153 92153-1136 4
BOLT,SOCKET,8X23 92154 92154-0077 4
WASHER 92200 92200-0036 1
WASHER,28.5X42X1.6 92200A 92200-0209 1
NUT,35MM 92210 92210-0095 1
NUT,35MM 92210A 92210-0096 1
NUT,6MM 92210B 92210-0099 2
NUT,28MM 92210C 92210-0209 1
