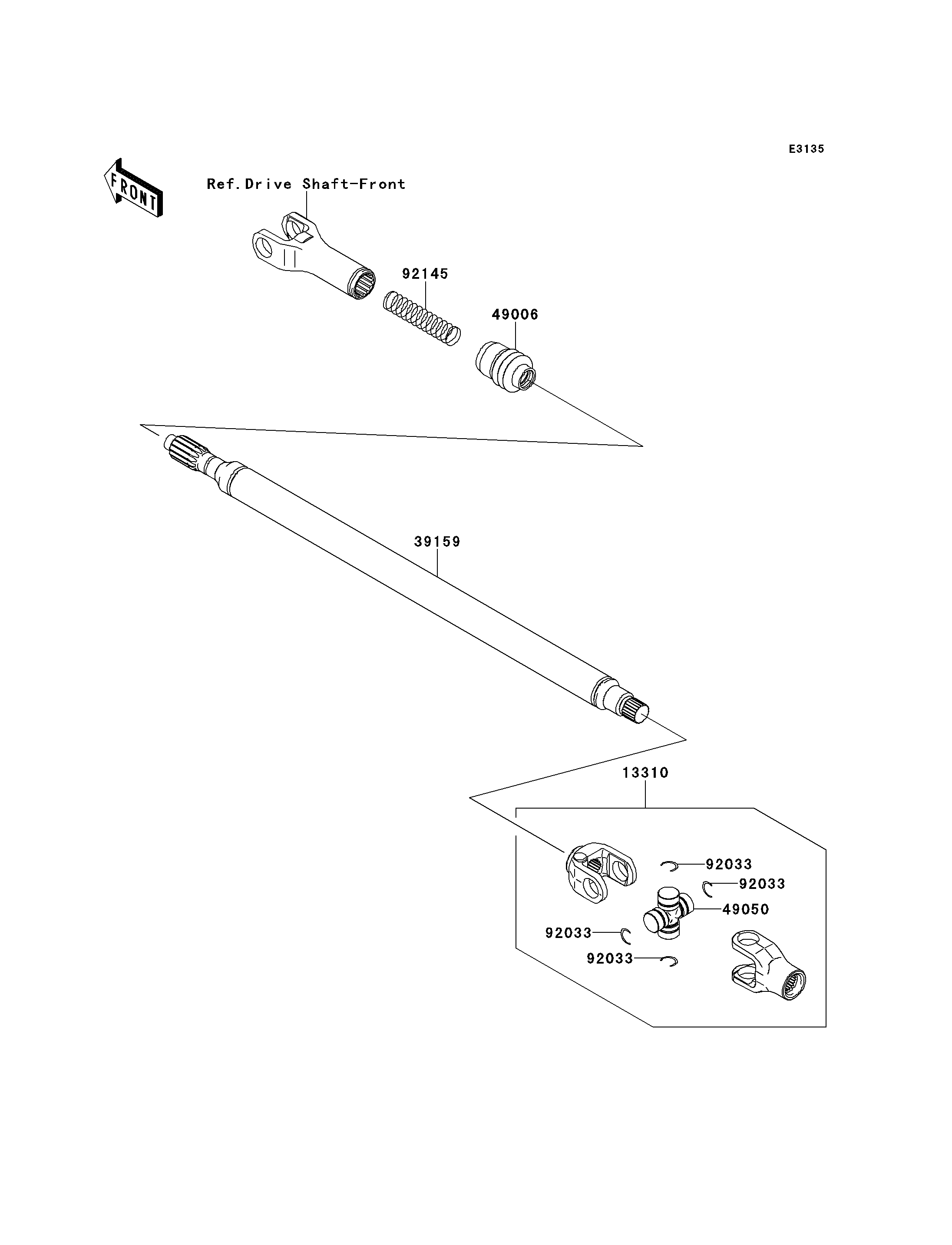

2012 TERYX® 750 FI 4x4 SPORT - Drive Shaft-Propeller

13310
39159
49006
49050
92033
92033
92033
92033
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-ASSY 13310 13310-0017 1
SHAFT-DRIVE 39159 39159-0037 1
BOOT 49006 49006-0089 1
SPIDER 49050 49050-1075 1
RING-SNAP 92033 92033-1030 4
SPRING 92145 92145-0247 1
