130
14092A
23007
23008
23017
49016
92015
92069A
92069B
92152
92152
92160
92160
92172
92200

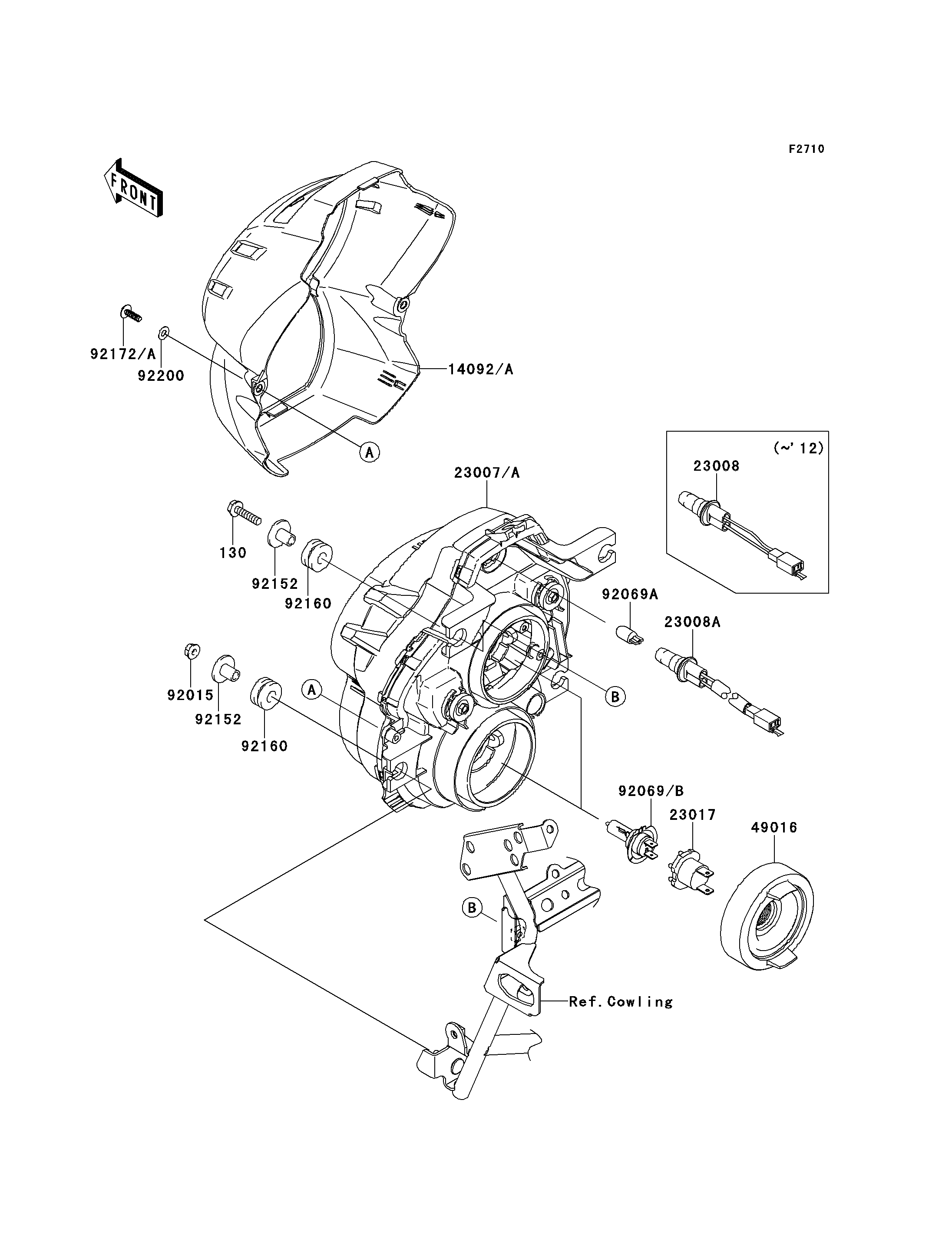

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BA0625 2
COVER,HEAD LAMP,M.SILVER 14092A 14092-0073-27E 1
LENS-COMP,HEAD LAMP 23007 23007-0149 1
SOCKET-ASSY,CITY LIGHT 23008 23008-0120 1
SOCKET,HEAD LAMP 23017 23017-0003 2
COVER-SEAL,HEAD LAMP 49016 49016-0075 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
BULB,12V 5W 92069A 92069-1016 1
BULB,12V 55W,H7 92069B 92069-1126 2
COLLAR 92152 92152-0048 4
DAMPER 92160 92160-1162 4
SCREW,TAPPING,5X16 92172 92172-0175 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
COVER,HEAD LAMP,F.S.BLACK 14092 14092-0073-18T 1 CAUS
