130
130
130
130
36040F
36040M
36040N
92039
92039
92039
92039
92152
92152
92152
92152
92161
92161A
92161A
92161A
92161A
92172
92172
92200
92200

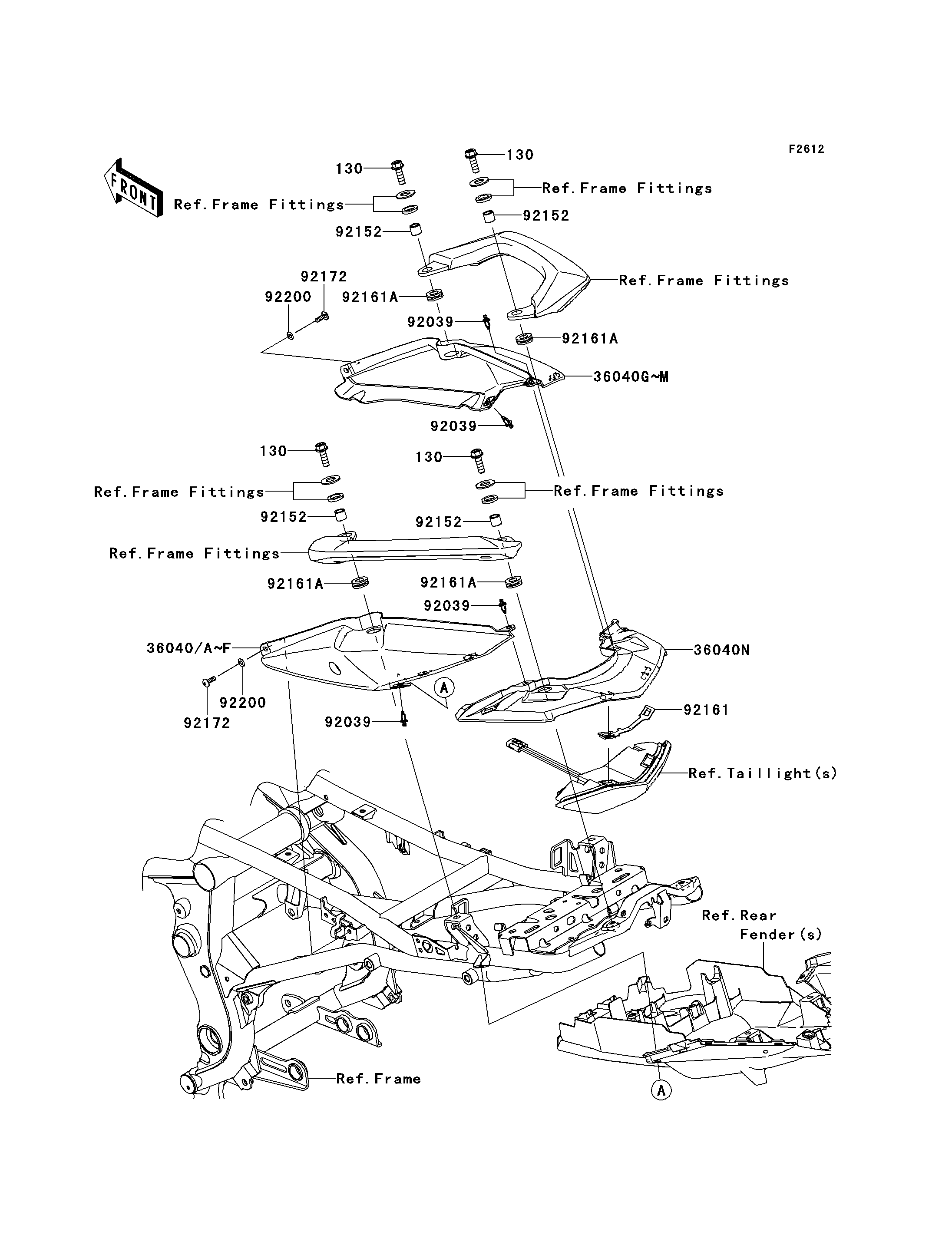

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130CA0830 4
COVER-TAIL,LH,M.S.BLACK 36040F 36040-0096-660 1
COVER-TAIL,RH,M.S.BLACK 36040M 36040-0097-660 1
COVER-TAIL,CNT 36040N 36040-0111 1
RIVET 92039 92039-0023 4
COLLAR,9.2X13.8X12.5 92152 92152-0546 4
DAMPER,TAIL LAMP 92161 92161-0808 1
DAMPER 92161A 92161-0868 4
SCREW,5X16 92172 92172-0322 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
