11056
11056
11060
11060
51049
51049
52005
52005
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
92093
92093
92152
92152
92153
92153
92153A
92153A
92171
92171
130
130
702
702

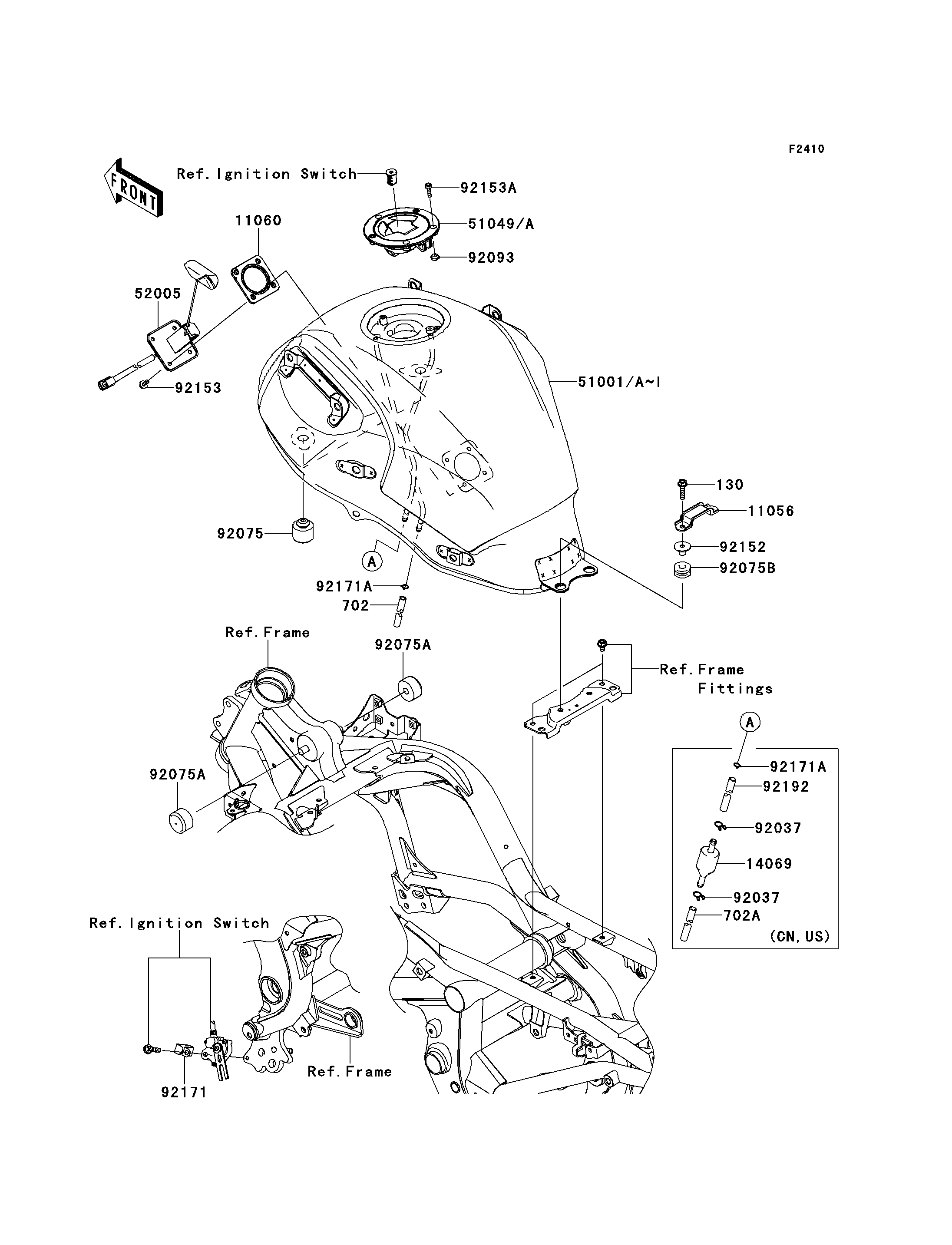

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT 11056 11056-0361 1
GASKET,FUEL GAUGE 11060 11060-1952 1
CAP-TANK,FUEL 51049 51049-0039 1
GAUGE,FUEL 52005 52005-0023 1
DAMPER 92075 92075-1002 2
DAMPER,FUEL TANK 92075A 92075-125 2
DAMPER 92075B 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.5X10X13.1 92152 92152-0910 2
BOLT,FLANGED,5X12 92153 92153-1421 4
BOLT,SOCKET,5X16 92153A 92153-1616 3
CLAMP 92171 92171-0911 1
BOLT-FLANGED,6X25 130 130BA0625 2
TUBE-RUBBER,6X9X750 702 702A06750 1
BREATHER,FUEL TANK 14069 14069-1004 1 CNUS
TANK-COMP-FUEL,P.S.YELLOW 51001 51001-0387-15G 1 CNUS
TANK-COMP-FUEL,M.F.S.BLACK 51001B 51001-0387-15V 1 US
TANK-COMP-FUEL,P.S.YELLOW 51001F 51001-0388-15G 1 CA
TANK-COMP-FUEL,M.F.S.BLACK 51001H 51001-0388-15V 1 CA
CLAMP,TUBE 92037 92037-147 2 CNUS
CLAMP,8X0.7 92171A 92171-1973 1 CA
CLAMP,8X0.7 92171A 92171-1973 2 CNUS
TUBE-RUBBER,7X10X100 702A 702A07100 1 CNUS
TUBE,BREATHER 92192 92192-0828 1 CNUS
