11012
11012
11012
11012
11065
11065
11065A
11065A
44008
44008
44008
44008
44013
44013
44013A
44013A
44023
44023
44023A
44023A
44026
44026
44026
44026
44028
44028
44028
44028
44037
44037
44039
44039
44045
44045
44045
44045
44065
44065
44065
44065
44065A
44065A
44065A
44065A
44071A
44071A
44071D
44071D
92026
92026
92026
92026
92033
92033
92033
92033
92049
92049
92049
92049
92055
92055
92055
92055
92066
92066
92093
92093
92093
92093
92150
92150
92150
92150
92152
92152
92152A
92152A
92153
92153
92153
92153
92161
92161
92161
92161
92200
92200
92200
92200
120
120

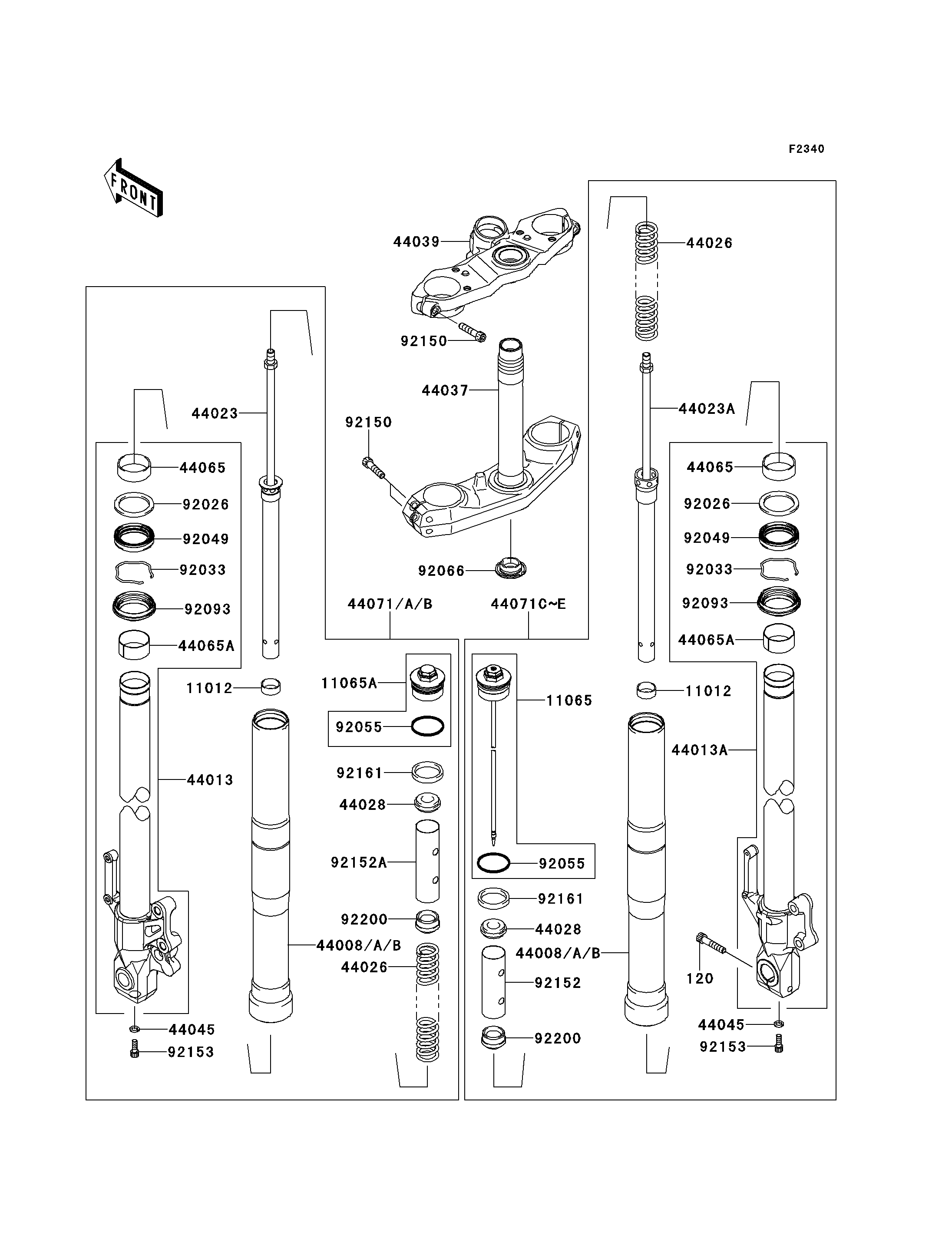

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1761 2
CAP,FORK BOLT COMP,RH 11065 11065-0196 1
CAP,FORK BOLT COMP,LH 11065A 11065-0197 1
PIPE-FORK OUTER,SILVER 44008 44008-0037-KX 2
PIPE-FORK INNER,LH,F.S.BLACK 44013 44013-0156-18R 1
PIPE-FORK INNER,RH,F.S.BLACK 44013A 44013-0157-18R 1
CYLINDER-SET-FORK,LH 44023 44023-0048 1
CYLINDER-SET-FORK,RH 44023A 44023-0049 1
SPRING-FRONT FORK 44026 44026-0097 2
GUIDE-FORK SPRING 44028 44028-1083 2
HOLDER-FORK UNDER 44037 44037-0053 1
HOLDER-FORK UPPER,P.SILVER 44039 44039-0064-458 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK,GUIDE 44065 44065-0001 2
BUSHING-FRONT FORK,SLIDE 44065A 44065-0002 2
DAMPER-ASSY,FORK,LH,SIL+BLK 44071A 44071-0674-30G 1
DAMPER-ASSY,FORK,RH,SIL+BLK 44071D 44071-0675-30G 1
SPACER,FORK OUTER 92026 92026-1276 2
RING-SNAP 92033 92033-1222 2
SEAL-OIL 92049 92049-0058 2
RING-O 92055 92055-0131 2
PLUG 92066 92066-0032 1
SEAL,DUST 92093 92093-0035 2
BOLT,SOCKET 92150 92150-1511 6
COLLAR,FORK,L=100 92152 92152-0497 1
COLLAR,FORK,L=117.5 92152A 92152-0498 1
BOLT,SOCKET,8X22 92153 92153-0028 2
DAMPER 92161 92161-0468 2
WASHER 92200 92200-1464 2
BOLT-SOCKET,8X40 120 120CB0840 1
PIPE-FORK OUTER,GRAY 44008A 44008-0037-11G 2 CAUS
DAMPER-ASSY,FORK,LH,GRAY+BLACK 44071B 44071-0674-30V 1 CAUS
DAMPER-ASSY,FORK,RH,GRAY+BLACK 44071E 44071-0675-30V 1 CAUS
