120
130
11055
13116
13236
13272
27010
43015
43020
43022
43026
43027
43028
43034
43095
43095A
49016
49091
49091
49091
49091
49091
49091
49091
92002
92002A
92015
92153
92153
92153A
92171
92171
92171
92172

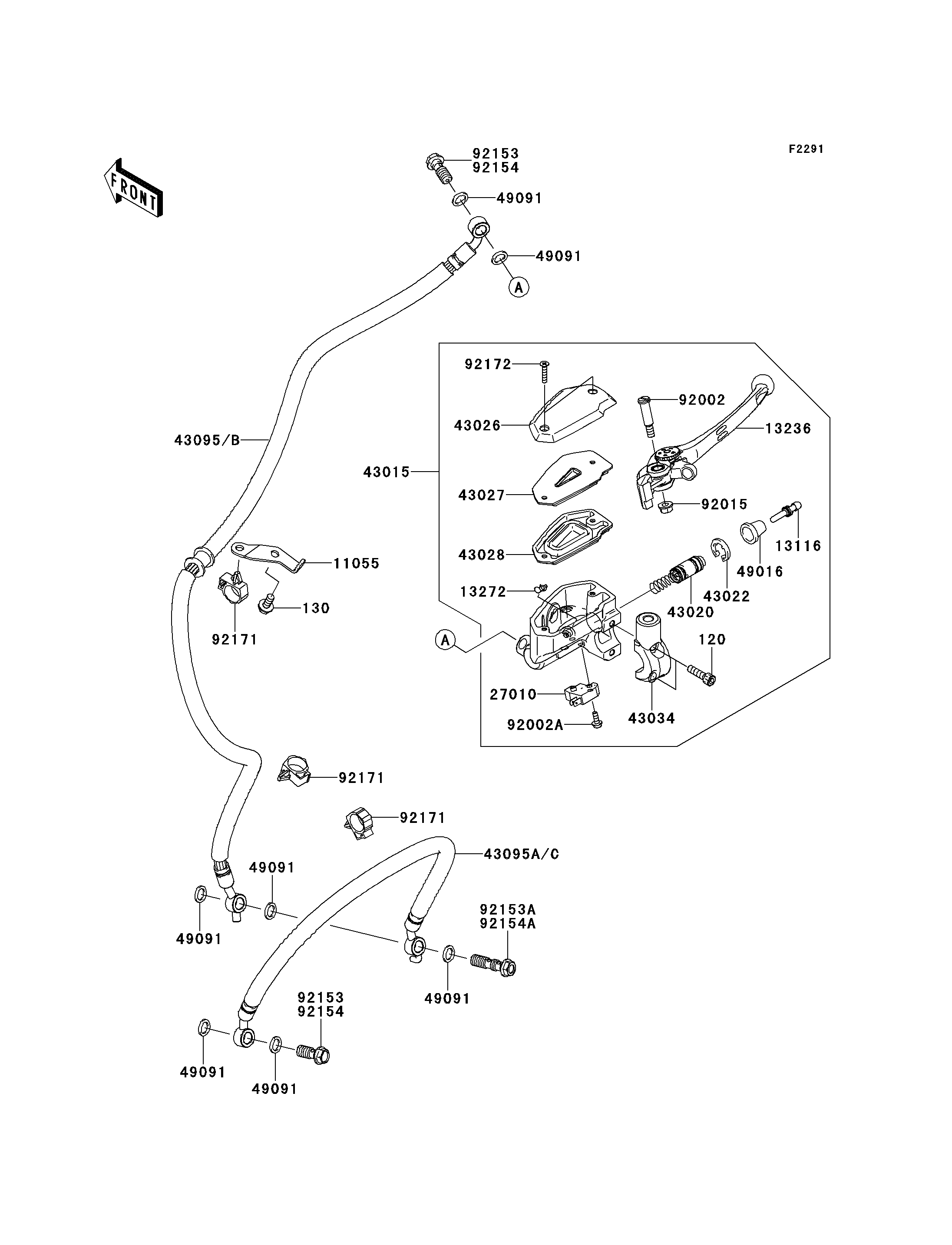

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X22 120 120CB0622 2
BOLT-FLANGED,6X14 130 130BA0614 1
BRACKET,BRAKE HOSE 11055 11055-1875 1
ROD-PUSH 13116 13116-0032 1
LEVER-COMP,FRONT BRAKE 13236 13236-0169 1
PLATE 13272 13272-0573 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0116 1
PISTON-COMP-BRAKE 43020 43020-0015 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-0019 1
PLATE-DIAPHRAGM 43027 43027-0008 1
DIAPHRAGM 43028 43028-0015 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0049 1
HOSE-BRAKE,FR,1017MM 43095 43095-0600 1
HOSE-BRAKE,FR,515MM 43095A 43095-0601 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 7
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
NUT,FLANGED,6MM 92015 92015-1528 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,OIL,L=37 92153A 92153-0628 1
CLAMP,BRAKE HOSE 92171 92171-0316 3
SCREW,4X20 92172 92172-0320 2
