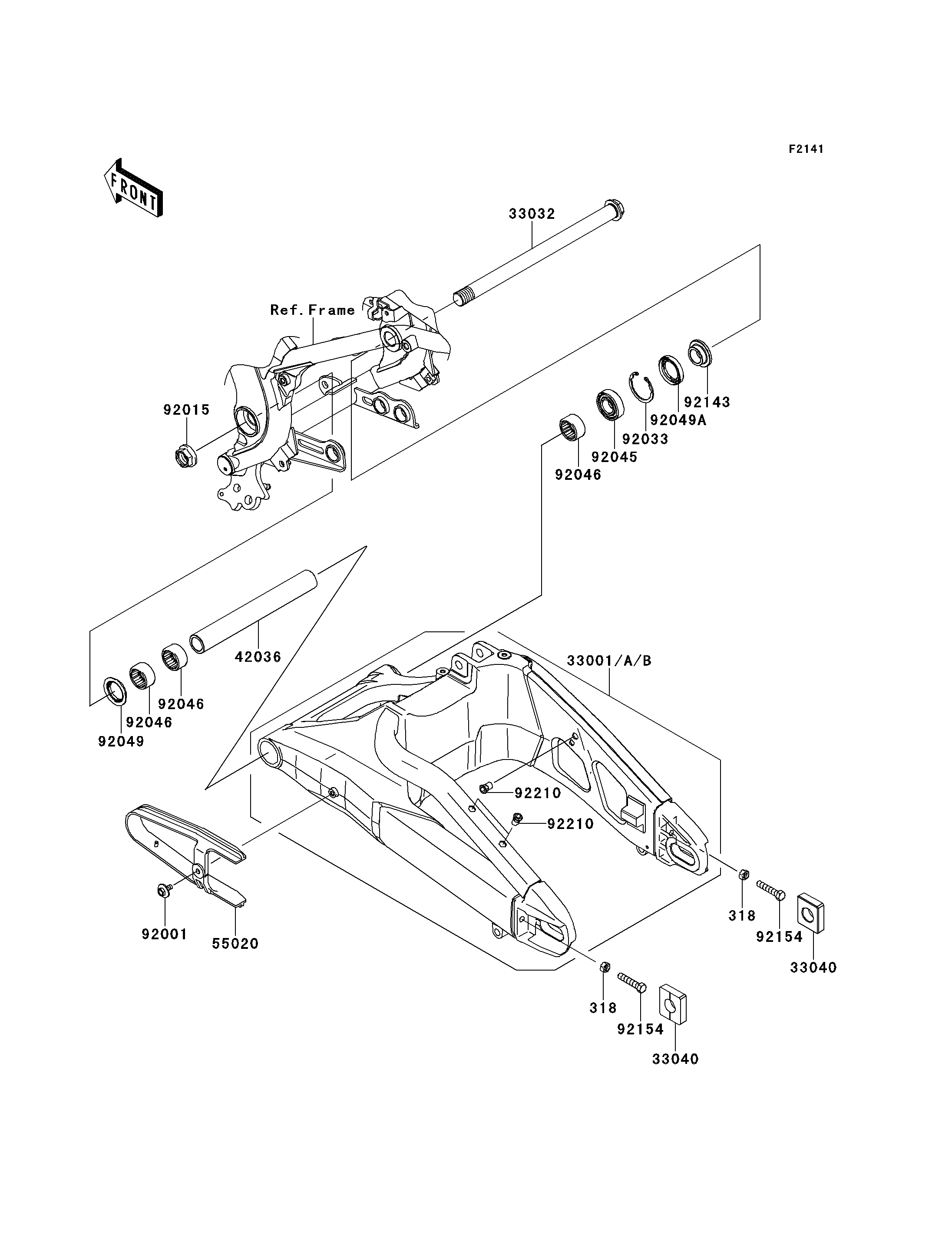

318
318
33001B
33032
33040
33040
42036
55020
92001
92015
92033
92045
92046
92046
92046
92049
92049A
92143
92154
92154
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-SMALL,8MM 318 318BA0800 2
ARM-COMP-SWING,P.SILVER 33001B 33001-0244-458 1
SHAFT-SWING ARM 33032 33032-1142 1
ADJUSTER-CHAIN 33040 33040-1109 2
SLEEVE,SWING ARM,L=219.5 42036 42036-0066 1
GUARD,CHAIN 55020 55020-0234 1
BOLT,6X16 92001 92001-1950 1
NUT,FLANGED,20MM 92015 92015-1724 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 3
SEAL-OIL 92049 92049-0132 1
SEAL-OIL 92049A 92049-0138 1
COLLAR,SWING ARM,RH,L=12.5 92143 92143-1727 1
BOLT,8X40 92154 92154-0288 2
NUT,POP,6MM,L=15 92210 92210-1397 3
ARM-COMP-SWING,F.S.BLACK 33001 33001-0244-18R 1 CAUS
