120
120
130
130
132
11054
11054A
11055C
11055D
35063
35063B
46019
46019A
53044
92027
92066
92066
92066A
92066A
92072
92075
92153
92153
92153A
92153A
92153B
92153B
92161
92161
92161A
92200
92200
92200A
92200A

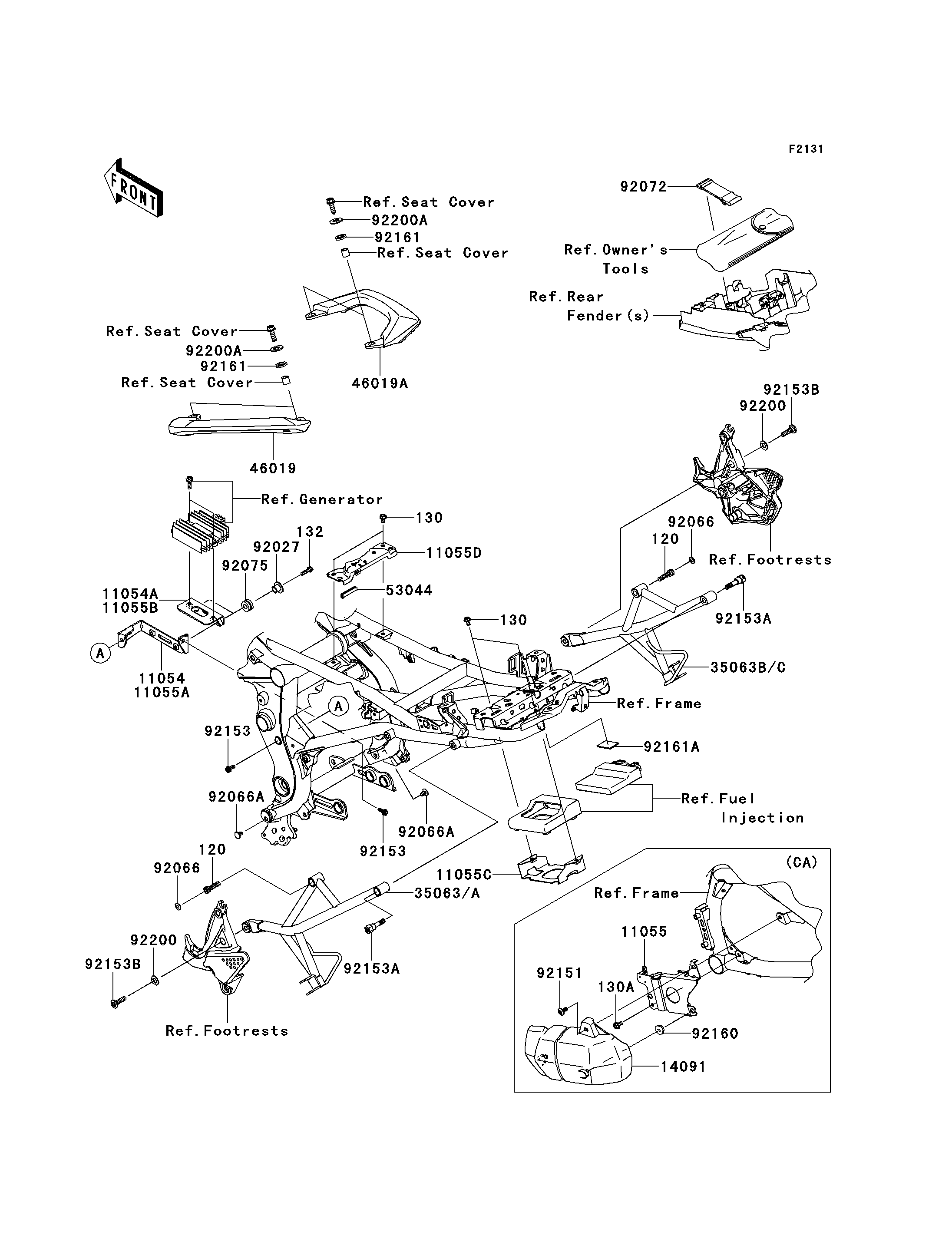

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X30 120 120CA0830 2
BOLT-FLANGED,6X10 130 130BA0610 4
BOLT-FLANGED-SMALL,6X22 132 132BB0622 2
BRACKET,REGULATOR 11054 11054-1283 1
BRACKET,REGULATOR 11054A 11054-1284 1
BRACKET,ECU 11055C 11055-1872 1
BRACKET,FUEL TANK 11055D 11055-1929 1
STAY,STEP,RR,LH,BLACK 35063 35063-0728-18R 1
STAY,STEP,RR,RH,BLACK 35063B 35063-0729-18R 1
GRIP-ASSY,LH 46019 46019-0030 1
GRIP-ASSY,RH 46019A 46019-0031 1
TRIM,L=40 53044 53044-1174 1
COLLAR,L=13.1,BLACK 92027 92027-1450 2
PLUG 92066 92066-0735 2
PLUG 92066A 92066-1103 2
BAND,TOOL 92072 92072-1176 1
DAMPER 92075 92075-209 2
BOLT,SOCKET,6X16 92153 92153-1517 2
BOLT 92153A 92153-1532 2
BOLT,SOCKET,8X30 92153B 92153-1630 2
DAMPER,14X22X3 92161 92161-0867 4
DAMPER,25X40X2 92161A 92161-1627 1
WASHER,10.2X20X1.6 92200 92200-0328 2
WASHER,8.2X26X3.2 92200A 92200-0568 4
BOLT-FLANGED,6X12 130A 130BB0612 1 CA
BRACKET,CANISTER 11055 11055-0586 1 CA
COVER,CANISTER 14091 14091-1586 1 CA
BOLT,SOCKET,6X14 92151 92151-1654 1 CA
DAMPER 92160 92160-1613 2 CA
