Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

11009
11012
16160
39062
39062A
39062B
39062C
43078
49054
92002
92002
92055
92154
92171
92171
92171A
92171A
92171B
92171B

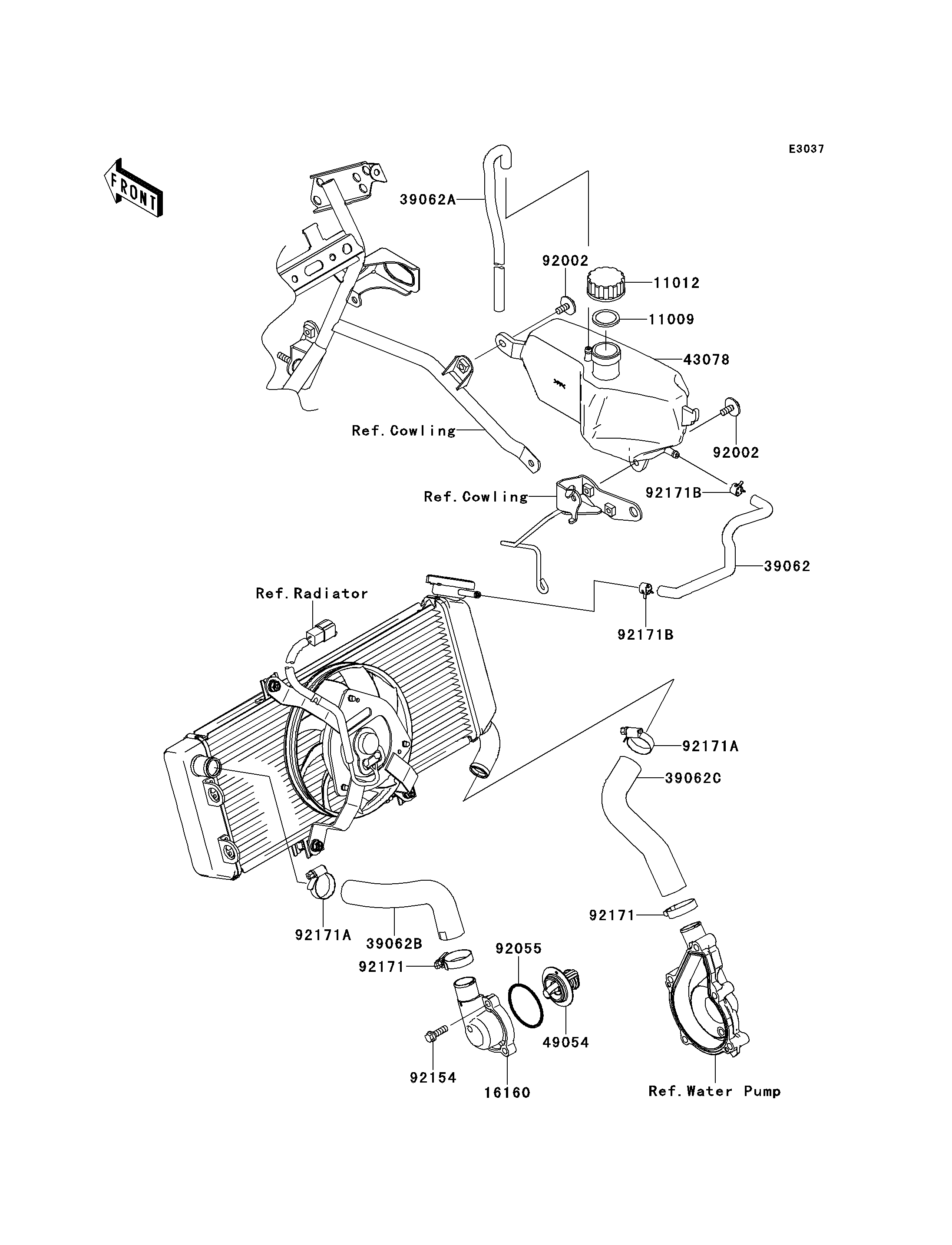

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BODY,THERMO 16160 16160-0181 1
HOSE-COOLING,RAD-RESERVOIR 39062 39062-0163 1
HOSE-COOLING,BREATHER 39062A 39062-0164 1
HOSE-COOLING,HEAD-RAD. 39062B 39062-0254 1
HOSE-COOLING,W.PUMP-RAD 39062C 39062-0265 1
RESERVOIR 43078 43078-0065 1
THERMOSTAT 49054 49054-0001 1
BOLT,6X16 92002 92002-1188 2
RING-O,44.7X2.4 92055 92055-0160 1
BOLT,FLANGED,6X20 92154 92154-0814 3
CLAMP 92171 92171-0261 2
CLAMP 92171A 92171-0337 2
CLAMP,10.5X8X0.7 92171B 92171-1992 2
