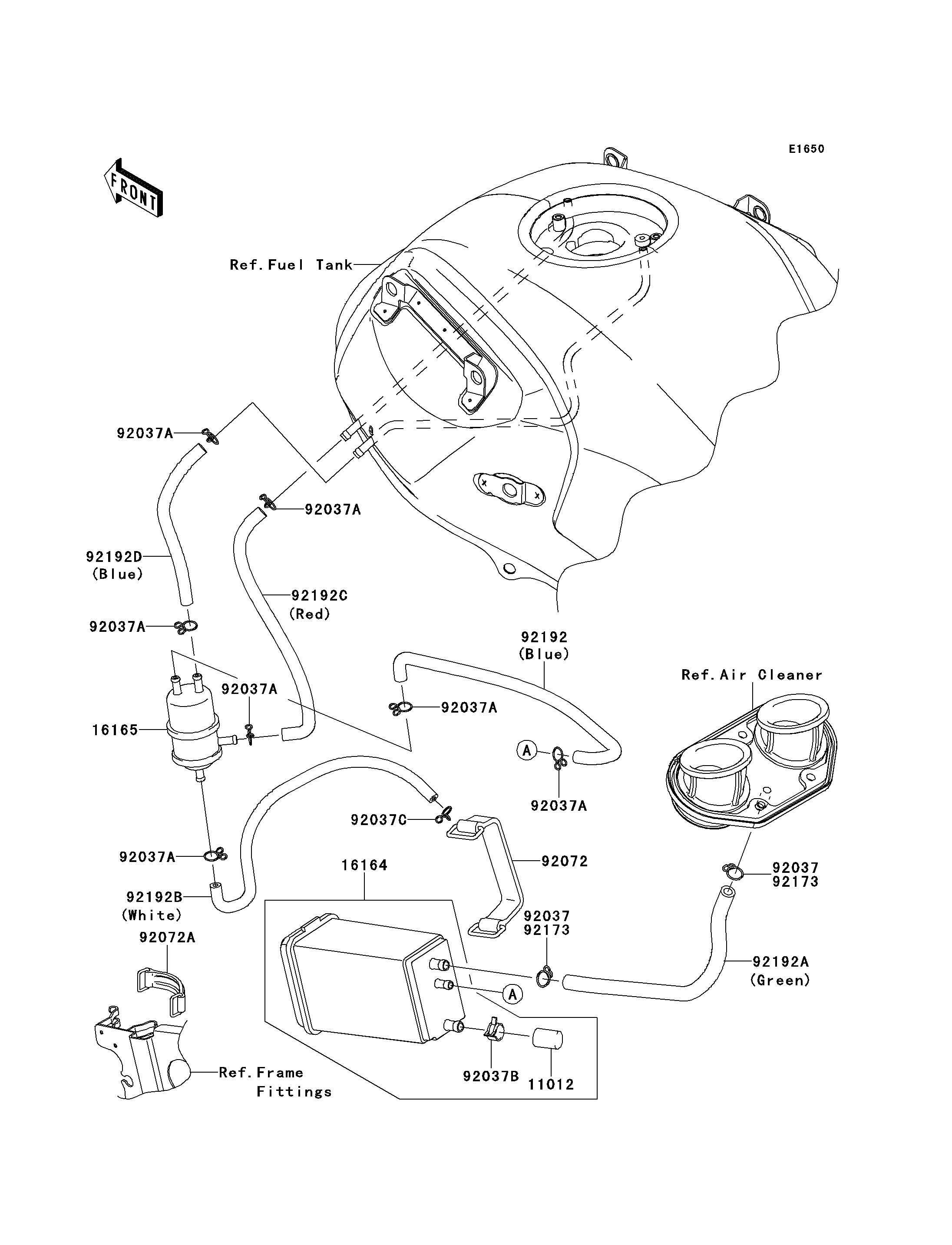

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CANISTER 11012 11012-1388 1 CA
CANISTER 16164 16164-1054 1 CA
SEPARATOR 16165 16165-1001 1 CA
CLAMP,TUBE 92037A 92037-147 7 CA
CLAMP,CANISTER 92037B 92037-1512 1 CA
CLAMP 92037C 92037-1712 1 CA
BAND 92072 92072-1384 1 CA
BAND,L=50 92072A 92072-1419 1 CA
CLAMP,11.5MM 92173 92173-0197 2 CA
TUBE,CANISTER-SEPARATOR,BLUE 92192 92192-0719 1 CA
TUBE,A/C-CANISTER,GREEN 92192A 92192-0720 1 CA
TUBE,SEPARATOR-THROBO,WHITE 92192B 92192-0721 1 CA
TUBE,SEPARATOR-TANK,RED 92192C 92192-0871 1 CA
TUBE,TANK-SEPARATOR,BLUE 92192D 92192-0872 1 CA
