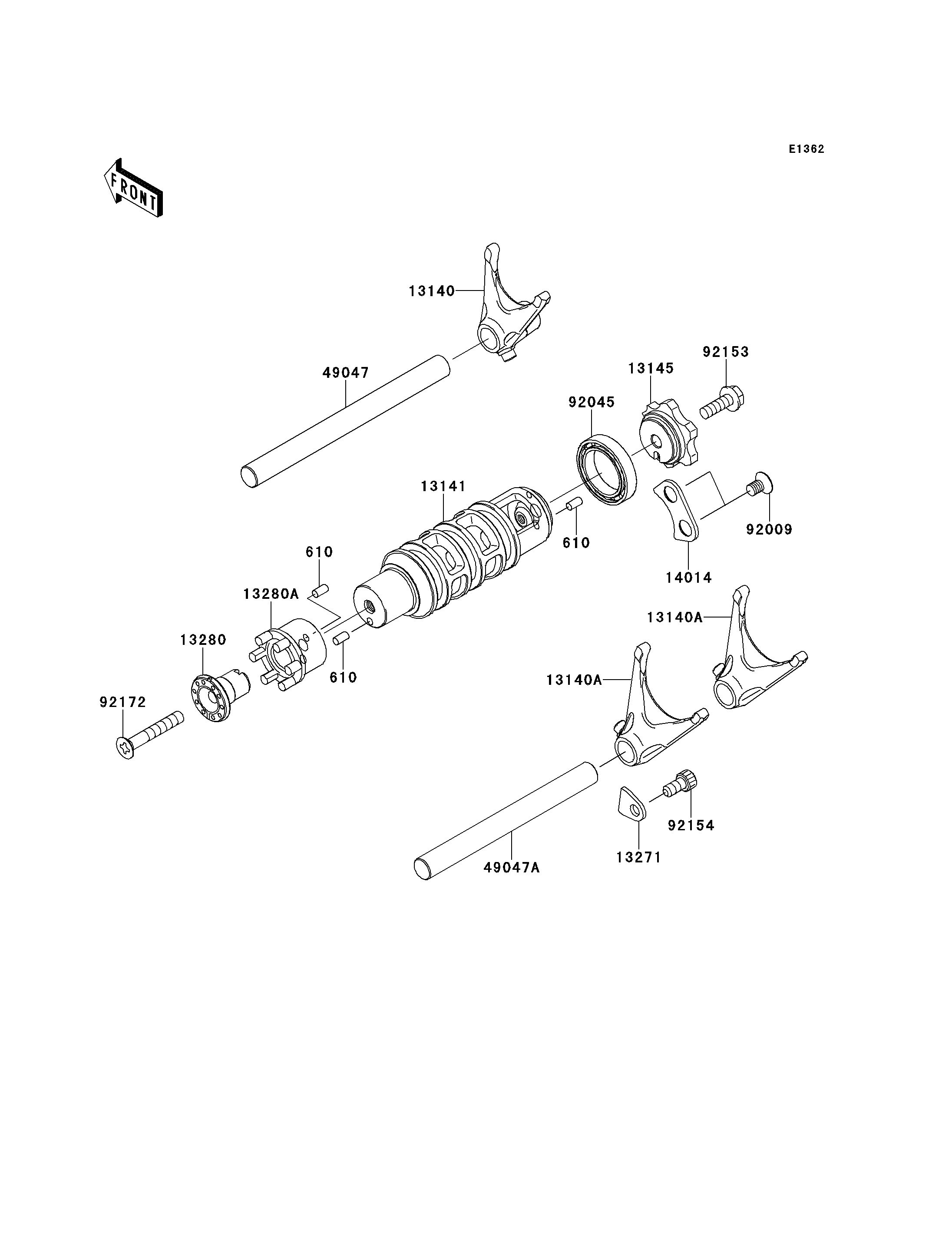

2012 VERSYS® - Gear Change Drum/Shift Fork(s)

610
610
610
13140
13140A
13140A
13141
13145
13271
13280
13280A
14014
49047
49047A
92009
92045
92153
92154
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X8 610 610A0408 3
FORK-SHIFT,INPUT 13140 13140-0025 1
FORK-SHIFT,OUTPUT 13140A 13140-0026 2
DRUM-CHANGE 13141 13141-0568 1
CAM-CHANGE DRUM 13145 13145-0020 1
PLATE 13271 13271-0626 1
HOLDER,NEUTRAL SWITCH 13280 13280-0183 1
HOLDER 13280A 13280-0192 1
PLATE-POSITION 14014 14014-0018 1
ROD-SHIFT,INPUT 49047 49047-0029 1
ROD-SHIFT,OUTPUT 49047A 49047-0030 1
SCREW,6X10 92009 92009-1375 2
BEARING-BALL,6805 92045 92045-1122 1
BOLT,FLANGED,6X18 92153 92153-0958 1
BOLT,SOCKET,6X12 92154 92154-0812 1
SCREW-CSK-CROS,6X40 92172 92172-0209 1
