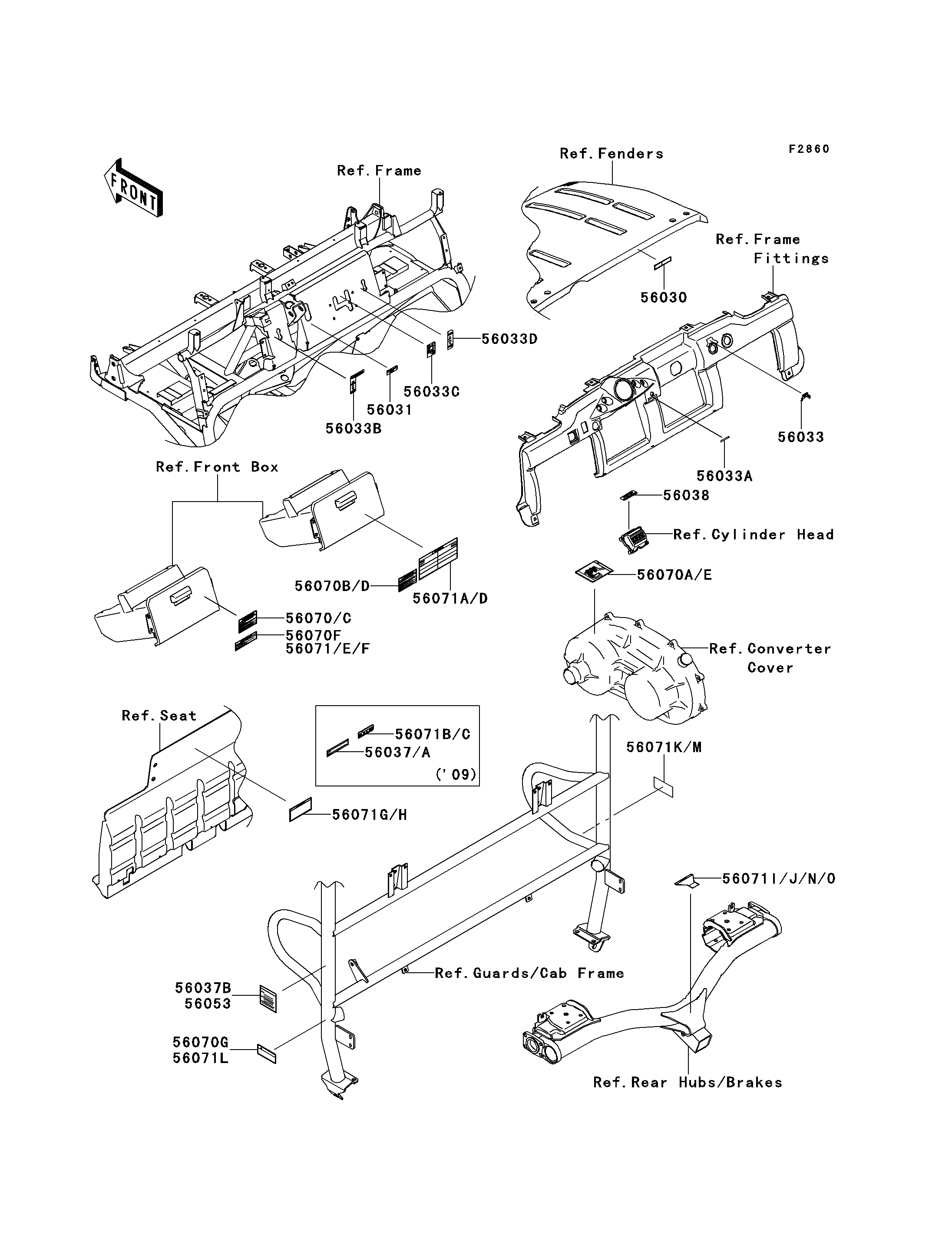

2012 MULE™ 4010 4x4 - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56031
56031
56033
56033
56033A
56033A
56033B
56033B
56033C
56033C
56033D
56033D
56038
56038
56053
56053
56070
56070
56070A
56070A
56070B
56070B
56070G
56070G
56071A
56071A
56071E
56071E
56071G
56071G
56071K
56071K
56071N
56071N
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,OPERATING HOOD 56030 56030-0267 1
LABEL-MANUAL,BRAKE FLUID LEVEL 56031 56031-1818 1
LABEL-MANUAL,IGNITION 56033 56033-0212 1
LABEL-MANUAL,POWER STEERING 56033A 56033-0213 1
LABEL-MANUAL,DIFF MODE 56033B 56033-1183 1
LABEL-MANUAL,SHIFT 56033C 56033-1186 1
LABEL-MANUAL,2WD/4WD 56033D 56033-1187 1
LABEL-BRAND 56038 56038-2782 1
LABEL-SPECIFICATION,TIRE 56053 56053-7534 1
LABEL-WARNING,OFF-HIGHWAY 56070 56070-0050 1
LABEL-WARNING,HOT SURFACES 56070A 56070-0051 1
LABEL-WARNING,BONNET OPERATION 56070B 56070-0053 1
LABEL-WARNING,BED RAISED 56070G 56070-7515 1
LABEL-WARNING,GENERAL 56071A 56071-0101 1
LABEL-WARNING,SHIFT CAUTION 56071E 56071-0128 1
LABEL-WARNING,CARGO BED 56071G 56071-0136 1
LABEL-WARNING,GASOLINE 56071K 56071-7501 1
LABEL-WARNING,TRAILER HITCH 56071N 56071-7511 1
LABEL-SPECIFICATION,TIRE,FRN 56037B 56037-1904 1 CN
LABEL,OFF-HIGHWAY,FRN 56070C 56070-0055 1 CN
LABEL-WARNING,BONNET OPERATION 56070D 56070-0058 1 CN
LABEL-WARNING,HOT SURFACES,FRN 56070E 56070-1207 1 CN
LABEL-WARNING,GENERAL,FRN 56071D 56071-0109 1 CN
LABEL-WARNING,SHIFT CAUTION,FRN 56071F 56071-0129 1 CN
LABEL-WARNING,CARGO BED,FRN 56071H 56071-0138 1 CN
LABEL,BED RAISED,FRN 56071L 56071-7504 1 CN
LABEL,GASOLINE,FRN 56071M 56071-7505 1 CN
LABEL-WARNING,TRAILER HITCH,FRN 56071O 56071-7512 1 CN
