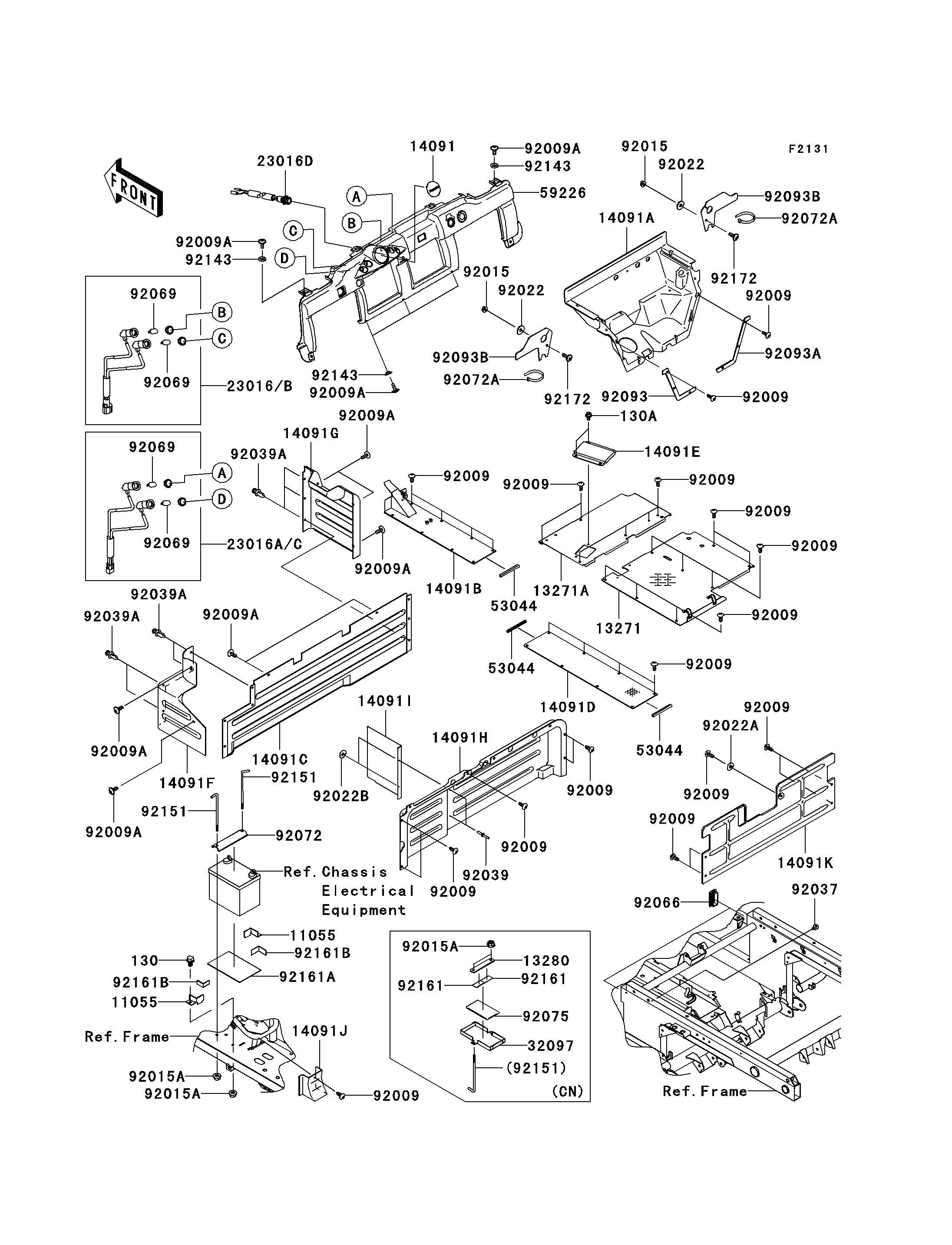

2009 Mule 4010 Trans4x4 - Frame Fittings
13271
13271
13271A
13271A
14091
14091
14091A
14091A
14091B
14091B
14091C
14091C
14091D
14091D
14091E
14091E
14091F
14091F
14091G
14091G
14091H
14091H
14091I
14091I
14091J
14091J
14091K
14091K
23016
23016
23016A
23016A
23016D
23016D
53044
53044
53044
53044
53044
53044
59226
59226
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92022
92022
92022
92022
92022A
92022A
92022B
92022B
92037
92037
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
130A
130A
92066
92066
92069
92069
92069
92069
92069
92069
92069
92069
92072A
92072A
92072A
92072A
92093
92093
92093A
92093A
92093B
92093B
92093B
92093B
92143
92143
92143
92143
92143
92143
92151
92151
92151
92151
92172
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,FLOOR,RH | 13271 | 13271-7602 | 1 | ||
| PLATE,FLOOR,RH | 13271A | 13271-7606 | 1 | ||
| COVER,SPEEDOMETER,F.BLACK | 14091 | 14091-0929-6Z | 1 | ||
| COVER,FLOOR | 14091A | 14091-1378 | 1 | ||
| COVER,FLOOR,CNT,FR | 14091B | 14091-1692 | 1 | ||
| COVER,FRONT SEAT,CNT | 14091C | 14091-7531 | 1 | ||
| COVER,FLOOR,CNT,RR | 14091D | 14091-7535 | 1 | ||
| COVER | 14091E | 14091-7536 | 1 | ||
| COVER,FRONT SEAT,LH | 14091F | 14091-7541 | 1 | ||
| COVER,FRONT SEAT,RH | 14091G | 14091-7542 | 1 | ||
| COVER,FRONT SEAT,RR,LWR | 14091H | 14091-7549 | 1 | ||
| COVER,FUEL TANK | 14091I | 14091-7550 | 1 | ||
| COVER,PARKING CABLE | 14091J | 14091-7551 | 1 | ||
| COVER,REAR SEAT,LWR | 14091K | 14091-7557 | 1 | ||
| LAMP-ASSY,PARKING&WATER TEMP | 23016 | 23016-0018 | 1 | ||
| LAMP-ASSY,DFI&OIL PRESSURE | 23016A | 23016-0031 | 1 | ||
| LAMP-ASSY,LED | 23016D | 23016-7501 | 1 | ||
| TRIM,L=111 | 53044 | 53044-7502 | 3 | ||
| PANEL-CONTROL,F.BLACK | 59226 | 59226-0012-6Z | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 50 | ||
| SCREW,6X16 | 92009A | 92009-1621 | 12 | ||
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 2 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 2 | ||
| WASHER,7X18X1.2 | 92022A | 92022-1545 | 1 | ||
| WASHER,4.3X12.5X1 | 92022B | 92022-1949 | 2 | ||
| CLAMP,HOSE | 92037 | 92037-1827 | 1 | ||
| RIVET | 92039 | 92039-1150 | 2 | ||
| RIVET | 92039A | 92039-1229 | 7 | ||
| BOLT-FLANGED,6X10 | 130A | 130BB0610 | 2 | ||
| PLUG | 92066 | 92066-7505 | 2 | ||
| BULB,12V 1.7W,T10 | 92069 | 92069-1059 | 4 | ||
| BAND,L=368.3 | 92072A | 92072-3872 | 2 | ||
| SEAL,FRONT FENDER,LH | 92093 | 92093-1293 | 1 | ||
| SEAL,FRONT FENDER,RH | 92093A | 92093-1294 | 1 | ||
| SEAL,LOWER COVER | 92093B | 92093-1295 | 2 | ||
| COLLAR | 92143 | 92143-1087 | 5 | ||
| BOLT,BATTERY | 92151 | 92151-1897 | 2 | ||
| SCREW,6X18 | 92172 | 92172-0002 | 2 | ||
| BRACKET | 11055 | 11055-0433 | 2 | CAUS | |
| HOLDER,BATTERY | 13280 | 13280-7505 | 1 | CN | |
| CASE-BATTERY | 32097 | 32097-7501 | 1 | CN | |
| NUT,FLANGED,8MM | 92015A | 92015-1406 | 2 | CN | |
| NUT,FLANGED,8MM | 92015A | 92015-1406 | 4 | CAUS | |
| BOLT-FLANGED,8X14 | 130 | 130BA0814 | 2 | CAUS | |
| BAND | 92072 | 92072-0112 | 1 | CAUS | |
| DAMPER | 92075 | 92075-1076 | 1 | CN | |
| DAMPER | 92161 | 92161-0032 | 2 | CN | |
| DAMPER | 92161A | 92161-0578 | 1 | CAUS | |
| DAMPER | 92161B | 92161-0580 | 2 | CAUS |
