14091
14091A
14091B
14091C
14092
35004
53064
53064
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92015C
92015C
92015C
92015C
92015C
92143
92143
92143A
92143A
92143A
92143A
92171
92171
92172
92172
92200
92200
92210
92210
92210
99999

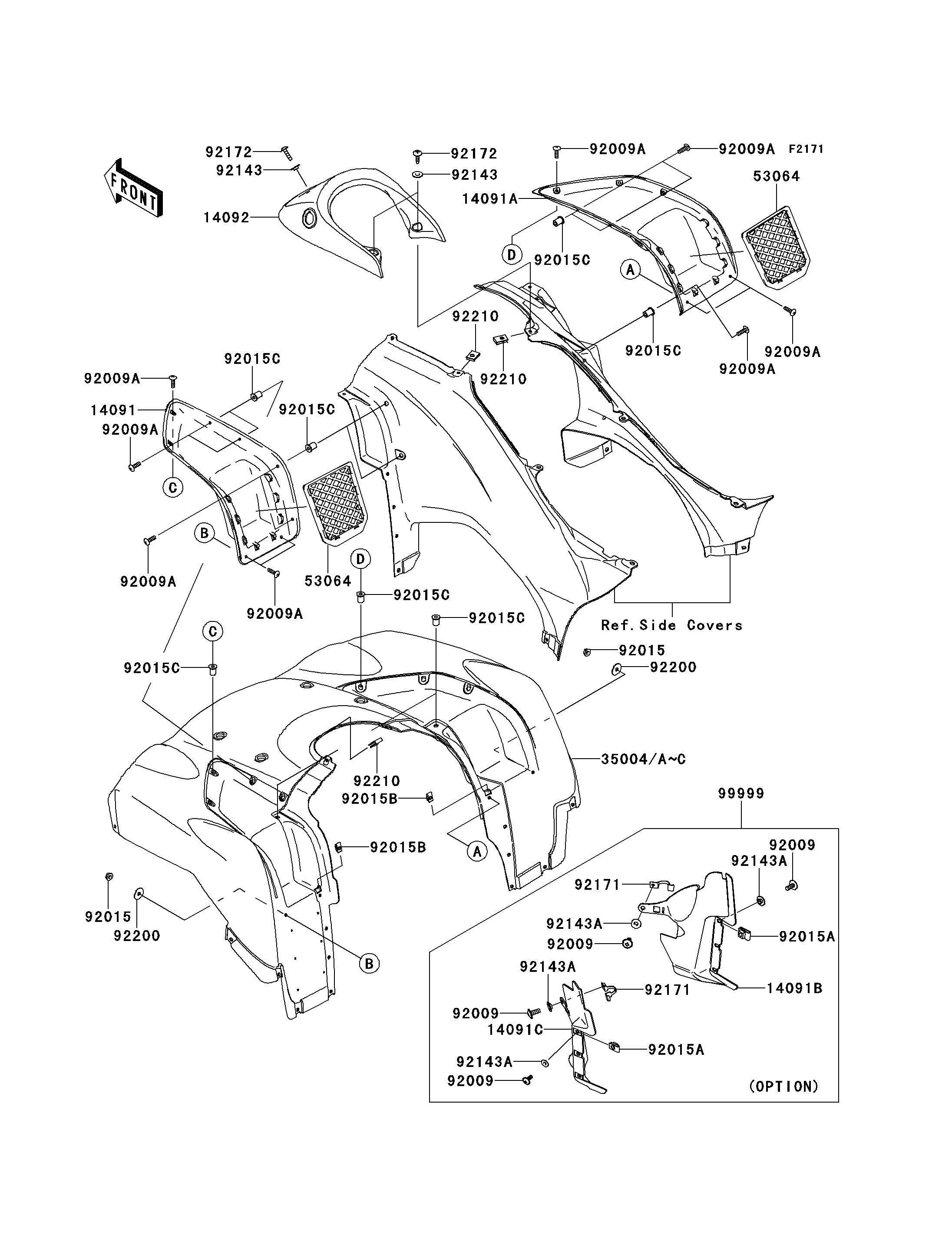

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,POCKET,LH,F.BLACK 14091 14091-0135-6Z 1
COVER,POCKET,RH,F.BLACK 14091A 14091-0136-6Z 1
COVER,SIDE,INNER,RH 14091B 14091-0179 1 (OPTION)
COVER,SIDE,INNER,LH 14091C 14091-0337 1 (OPTION)
COVER,TOP,F.BLACK 14092 14092-0769-6Z 1
FENDER-FRONT,D.R.RED 35004 35004-0106-16L 1
NET-CARGO 53064 53064-0002 2
SCREW,6X16 92009 92009-1621 8 (OPTION)
SCREW,5X18 92009A 92009-1655 17
NUT,FLANGED,5MM 92015 92015-1259 2
NUT,6MM 92015A 92015-1602 6 (OPTION)
NUT,5MM 92015B 92015-1710 2
NUT,WELL,5MM 92015C 92015-1757 15
COLLAR 92143 92143-1087 3
COLLAR 92143A 92143-1087 8 (OPTION)
CLAMP 92171 92171-0223 2 (OPTION)
SCREW,TAPPING,6X20 92172 92172-0488 3
WASHER,5.5X20X1.2 92200 92200-0284 2
NUT,LEAF SPRING,6MM 92210 92210-0624 3
INNER FENDER KIT 99999 99999-0055 1 (OPTION)
