120
670
12046
12048
12053
12053A
13234
13271
13271A
49118
92055
92057
92152
92153
92153
92154
92154A

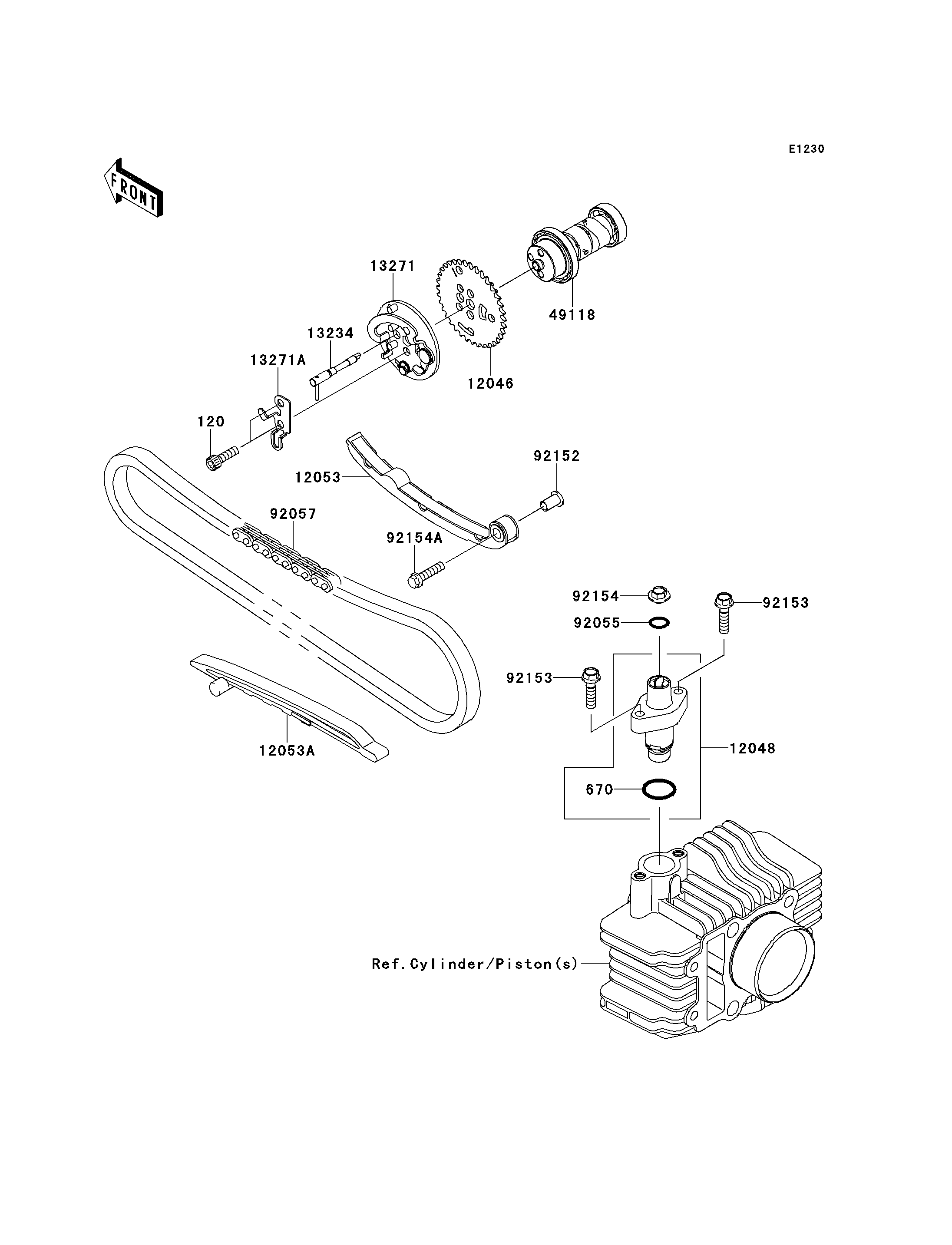

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120CA0620 2
O RING,21MM 670 670D2021 1
SPROCKET 12046 12046-0059 1
TENSIONER-ASSY 12048 12048-1164 1
GUIDE-CHAIN,LOOSE 12053 12053-0006 1
GUIDE-CHAIN 12053A 12053-1461 1
SHAFT-COMP 13234 13234-0033 1
PLATE 13271 13271-0948 1
PLATE 13271A 13271-0950 1
CAMSHAFT-COMP 49118 49118-0131 1
RING-O,9.8X2.4 92055 92055-0060 1
CHAIN,CAM,94L 92057 92057-0127 1
COLLAR,CHAIN GUIDE 92152 92152-1369 1
BOLT,6X25 92153 92153-1185 2
BOLT,FLANGED,6X6 92154 92154-0536 1
BOLT,FLANGED,6X25 92154A 92154-1156 1
