11055
11065
16014
16021
16073
16163
21176
26031
31064
49033
49056
49056
59071
59071
59071
92055
92055
92055A
92072
92072
92072
92072
92145
92161
92171
92172
92172
92172A
92172B
92191
92192
92192A
92192A
92192B
92192C
92192D

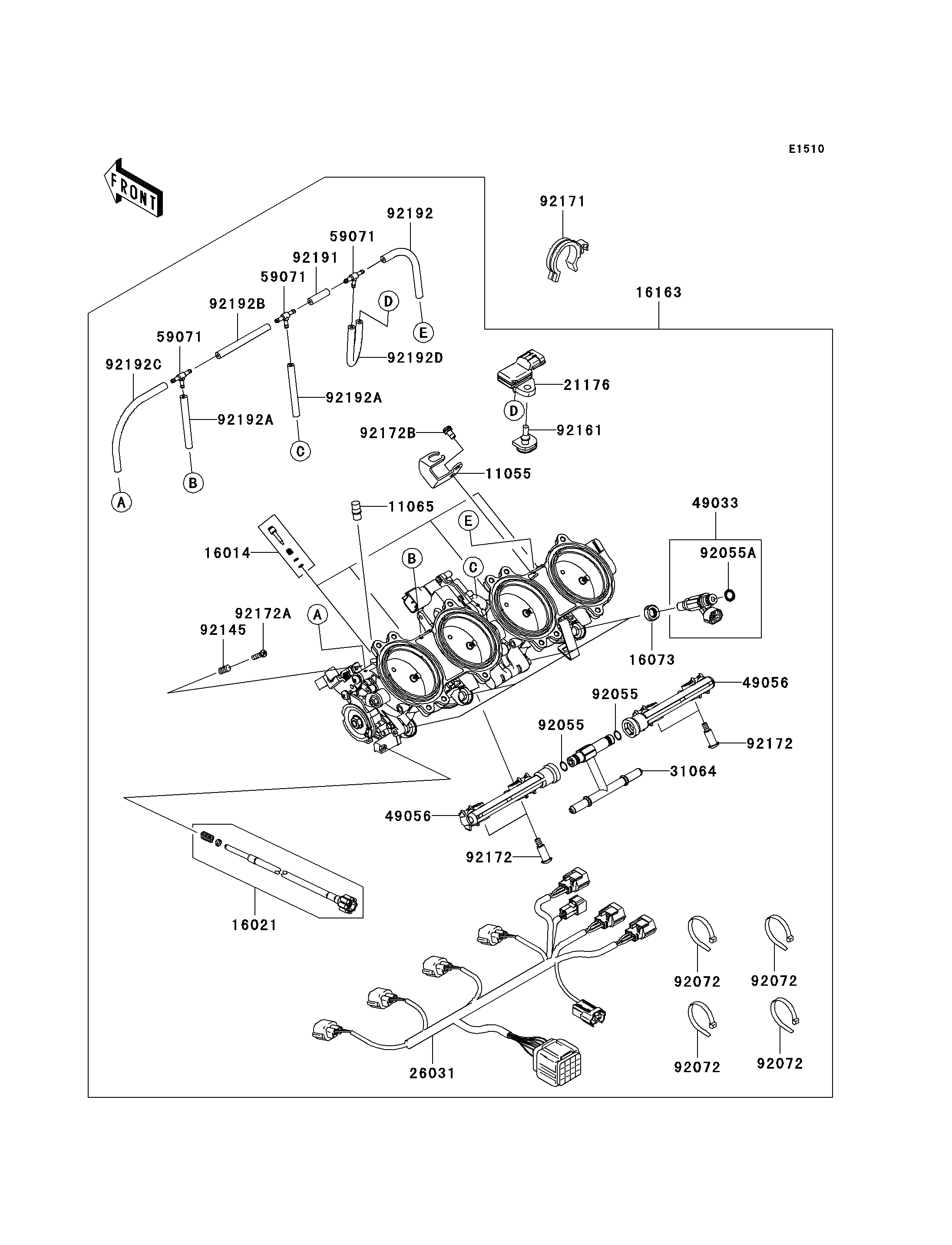

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11055 11055-1257 1
CAP 11065 11065-0282 4
SCREW-PILOT AIR 16014 16014-0002 4
SCREW-THROTTLE STOP 16021 16021-0020 1
INSULATOR 16073 16073-3707 4
THROTTLE-ASSY,TTK43 16163 16163-0115 1
SENSOR,PRESSURE 21176 21176-0058 1
HARNESS,THROTTLE SUB 26031 26031-0580 1
PIPE-COMP,FUEL 31064 31064-0023 1
NOZZLE-INJECTION 49033 49033-0011 4
PIPE-INJECTION 49056 49056-0024 2
JOINT,3WAY,T 59071 59071-3752 3
RING-O 92055 92055-0064 2
RING-O,INJECTION NOZZLE 92055A 92055-1622 4
BAND,SUB-HARNESS 92072 92072-0012 AR
SPRING,THROTTLE SYNCRO 92145 92145-0055 1
DAMPER 92161 92161-0041 1
CLAMP 92171 92171-0359 1
SCREW,PIPE INJECTION 92172 92172-0064 4
SCREW,THROTTLE SYNCRO 92172A 92172-0065 1
SCREW 92172B 92172-0393 1
TUBE,3X7X25 92191 92191-0020 1
TUBE,3X7X95 92192 92192-0018 1
TUBE,3X7X55 92192A 92192-0106 2
TUBE 92192B 92192-0739 1
TUBE,3X7X120 92192C 92192-0740 1
TUBE 92192D 92192-0741 1
