11061
11061A
13280
14043
49034
92066
92151
92154

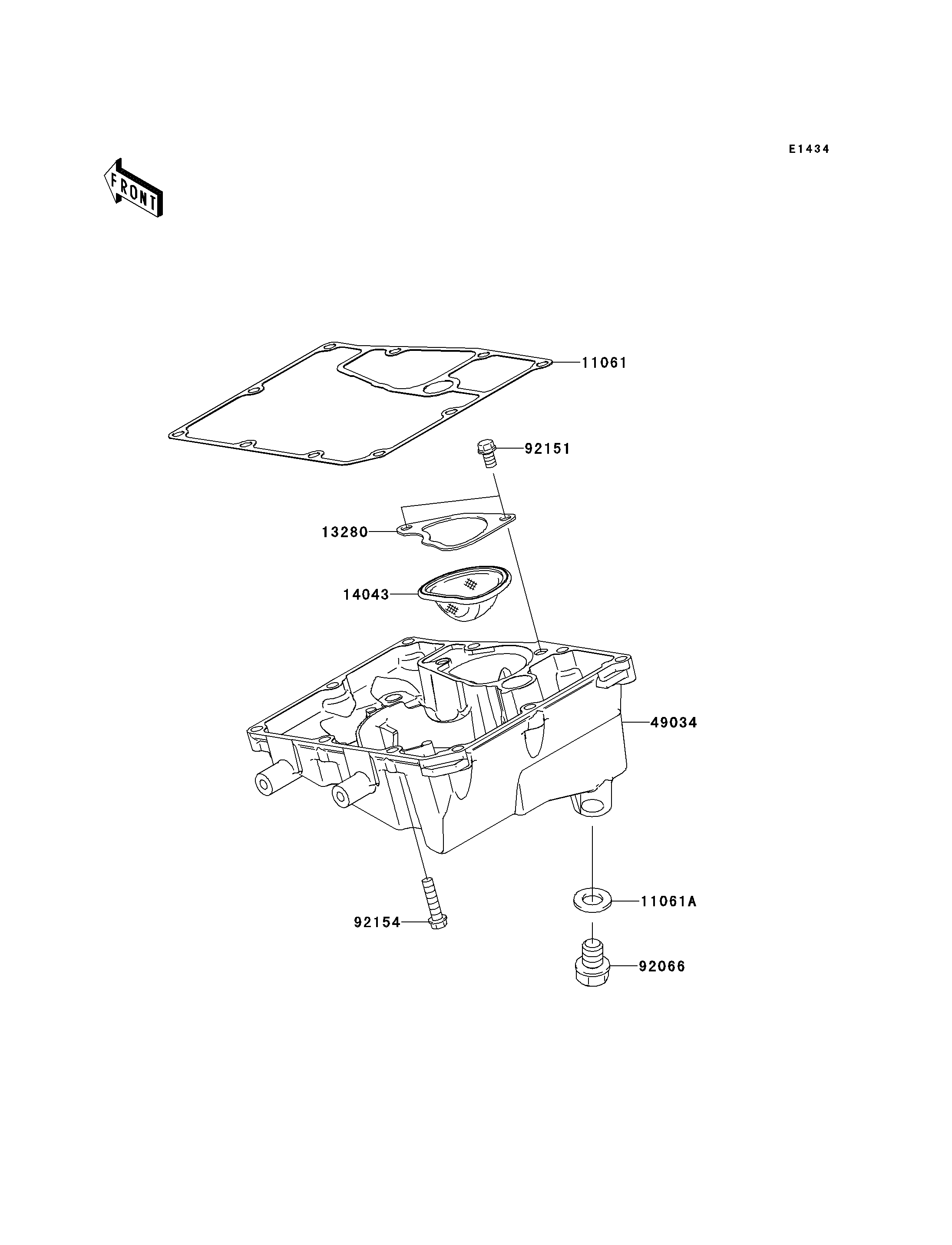

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11061 11061-0167 1
GASKET,12X22X2 11061A 11061-0417 1
HOLDER,OIL FILTER 13280 13280-0134 1
FILTER,OIL(SCAVENGE) 14043 14043-0008 1
PAN-OIL 49034 49034-0030 1
PLUG,OIL DRAIN,12X15 92066 92066-0767 1
BOLT,FLANGED-SMALL,6X10 92151 92151-1389 2
BOLT,FLANGED,6X25 92154 92154-0819 10
