11055
11056
55028C
55028G
92022
92022
92039
92039
92151
92151
92151A
92151A
92154
92154
92161
92200
92200
92210
92210

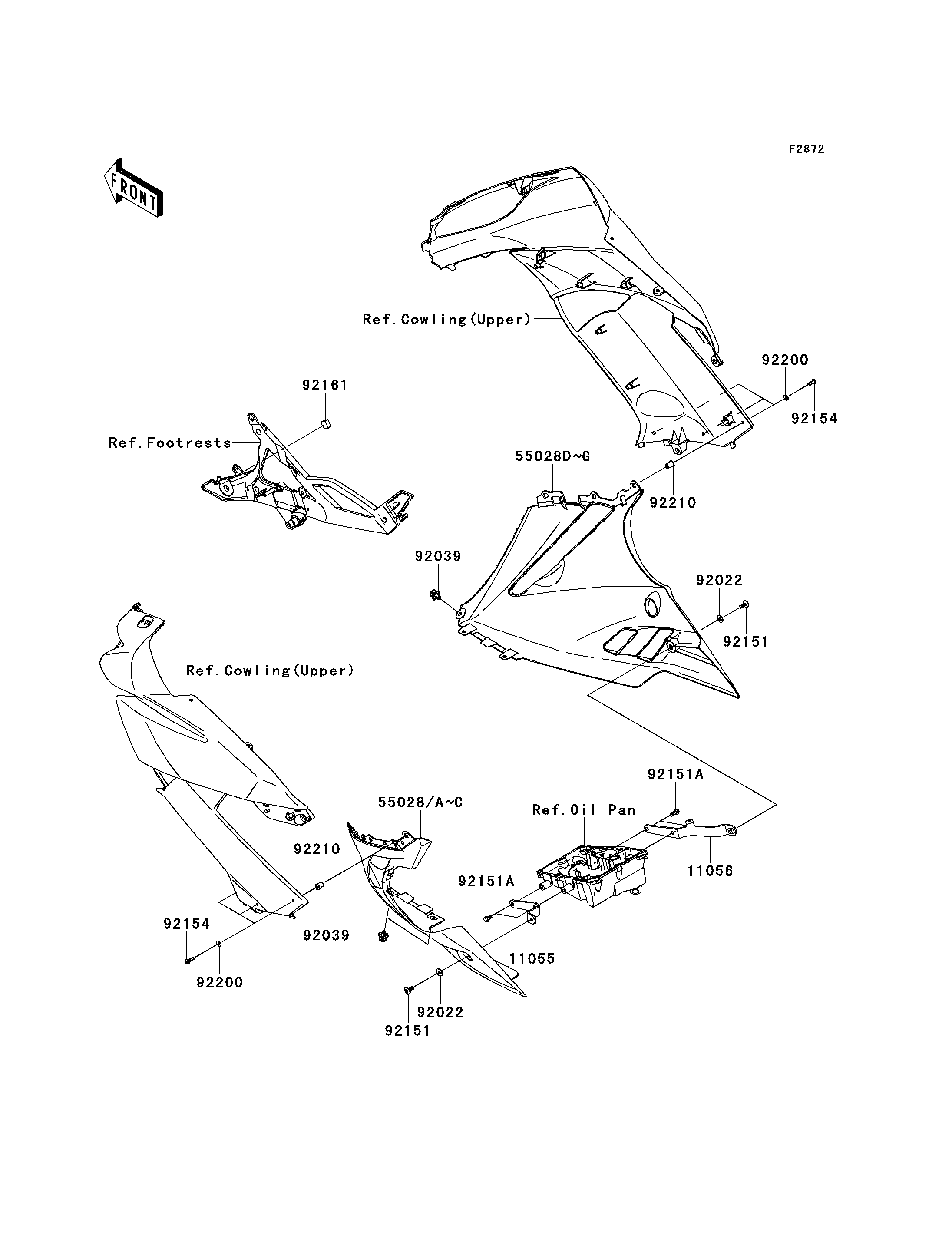

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR COWLING,LH 11055 11055-1242 1
BRACKET,LWR COWLING,RH 11056 11056-0590 1
COWLING,LWR,LH,F.S.BLACK 55028C 55028-0238-18T 1
COWLING,LWR,RH,F.S.BLACK 55028G 55028-0239-18T 1
WASHER,6.5X16X1.0 92022 92022-1654 2
RIVET,HOLE 8MM 92039 92039-0014 3
BOLT,SOCKET,6X14 92151 92151-1654 2
BOLT,FLANGED,6X14 92151A 92151-1755 4
BOLT,SOCKET,5X16 92154 92154-0182 6
DAMPER 92161 92161-0557 1
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 6
NUT,WELL,5MM 92210 92210-0498 6
