311
311
11055
11055A
11055A
14091
35019
35023
35023A
55020
92039
92039
92154
92154
92154A
92161
92161
92200
92200
92200A
92200A
92210

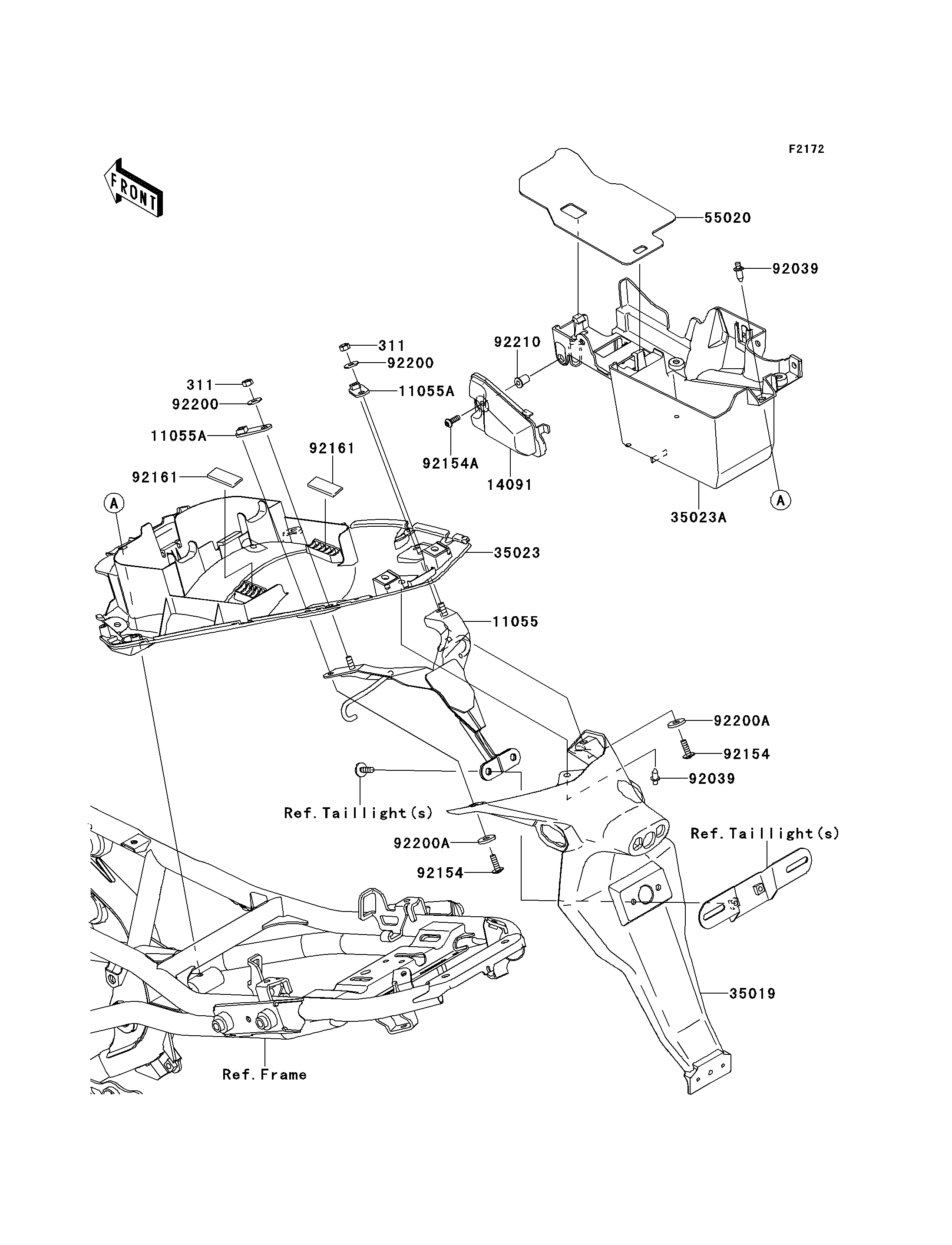

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,6MM 311 311AA0600 2
BRACKET,FLAP 11055 11055-0587 1
BRACKET 11055A 11055-0843 2
COVER,SWITCH MAINTENANCE 14091 14091-1678 1
FLAP 35019 35019-0075 1
FENDER-REAR,RR 35023 35023-0142 1
FENDER-REAR,FR 35023A 35023-0163 1
GUARD,HEAT 55020 55020-0220 1
RIVET 92039 92039-1283 2
BOLT,SOCKET,6X18 92154 92154-0139 2
BOLT,SOCKET,5X16 92154A 92154-0182 1
DAMPER 92161 92161-0773 2
WASHER,6.5X17X1 92200 92200-0430 2
WASHER,6.5X14X1 92200A 92200-1388 2
NUT,WELL,5MM 92210 92210-0498 1
