35004E
35004G
35004I
92151
92151
92154
92154
92172
92200
92200
92200A
92210
92210
92210
92210

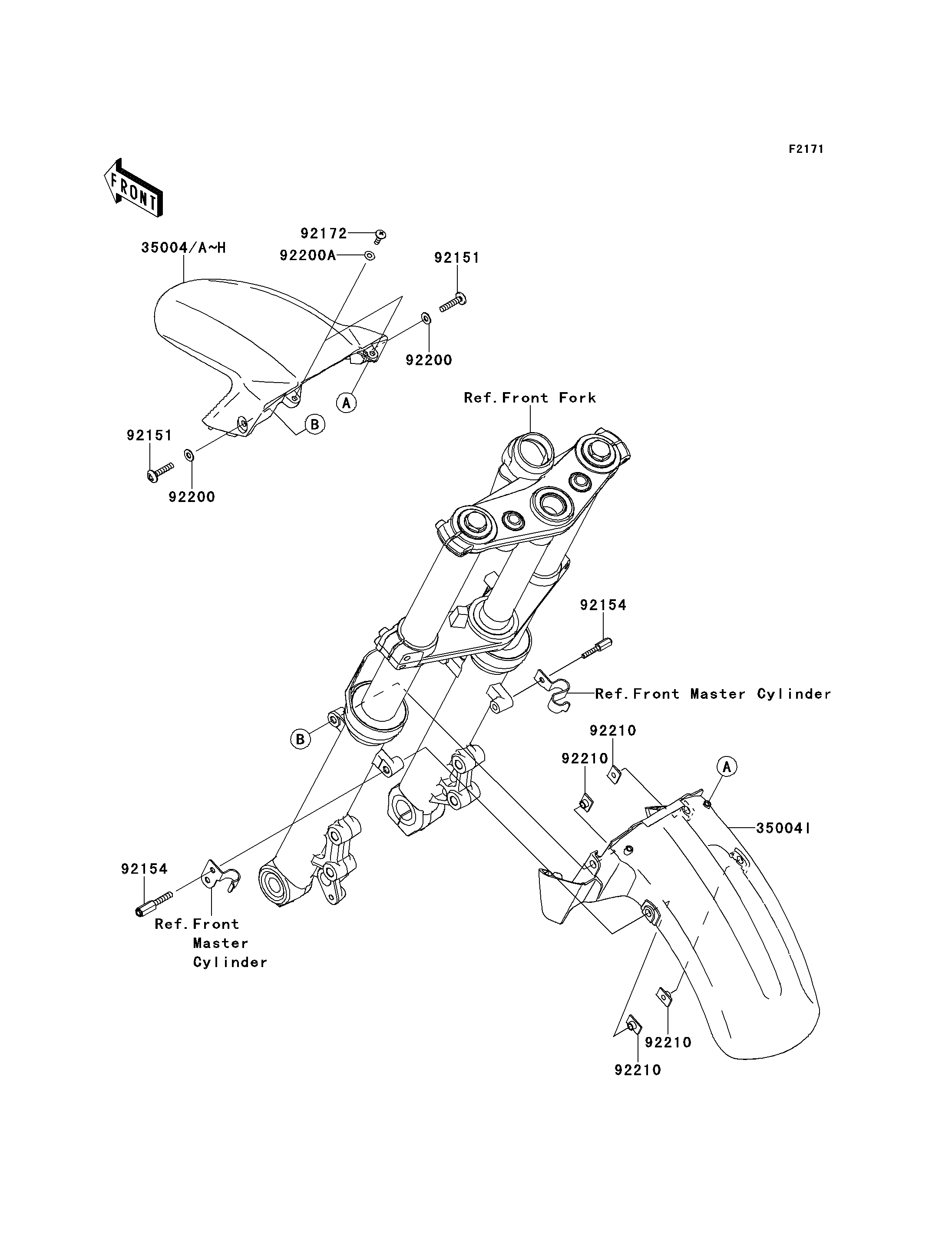

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,FR,C.B.ORANGE 35004E 35004-0110-15T 1
FENDER-FRONT,FR,M.S.BLACK 35004G 35004-0110-15Z 1
FENDER-FRONT,RR 35004I 35004-0111 1
BOLT,SOCKET,6X30 92151 92151-1605 2
BOLT 92154 92154-0305 2
SCREW,TAPPING,5X16 92172 92172-0427 2
WASHER,6.5X14X1 92200 92200-1388 2
WASHER,NYLON,5.3X11.5X0.5 92200A 92200-1480 2
NUT,PLATE,6MM 92210 92210-1352 4
