120
461
13107
13107
13194
13280
16085
16085A
21039
21040
21040
21040
21040
21163
26006
26006
26011
27010
39076
92015
92026
92055
92055A
92055A
92055A
92055B
92055B
92071
92151
92153
92153
92210

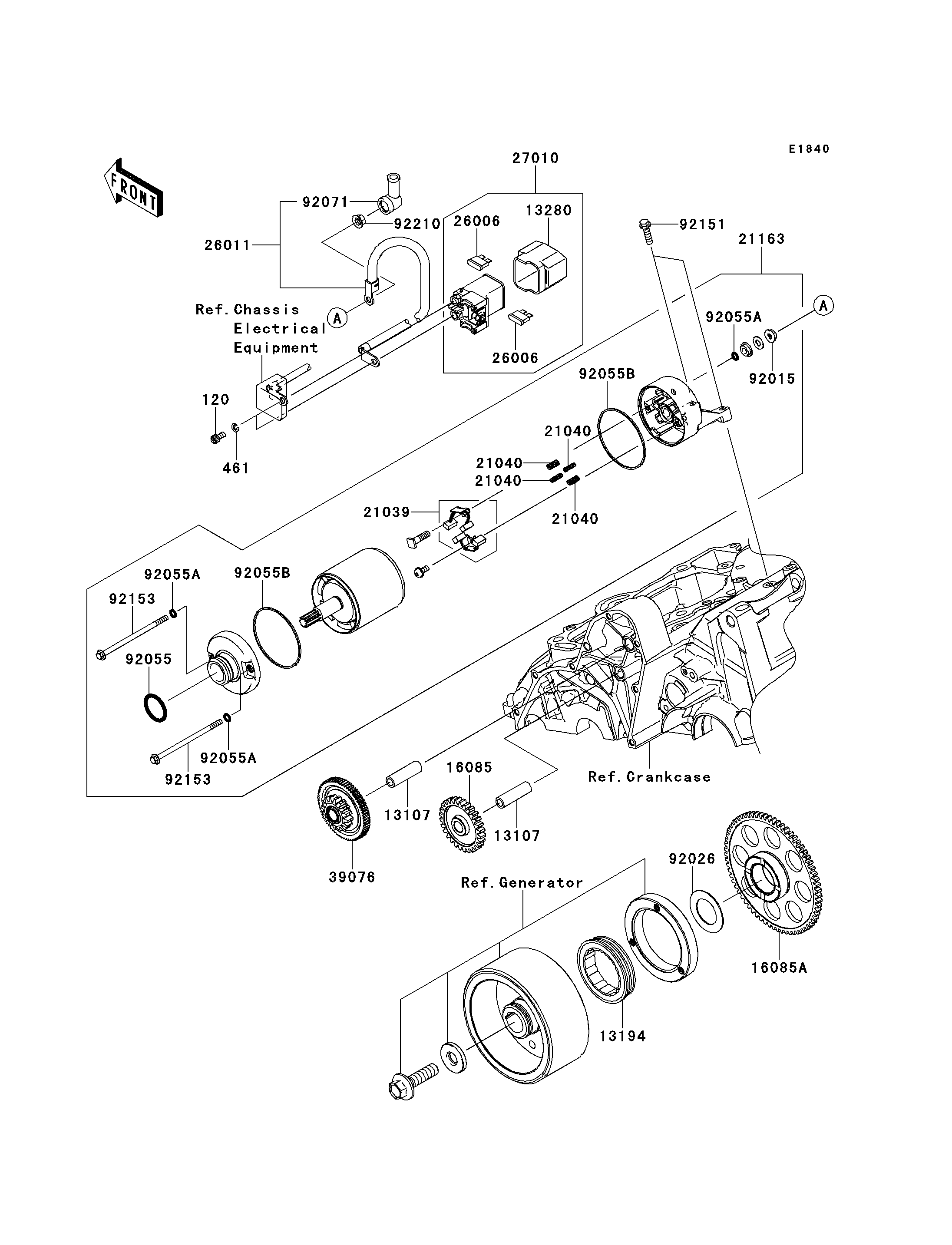

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X10 120 120CB0610 2
WASHER-SPRING,6MM,BLACK 461 461DB0600 2
SHAFT,IDLE GEAR 13107 13107-1106 2
CLUTCH-ONEWAY 13194 13194-1083 1
HOLDER 13280 13280-0301 1
GEAR,IDLE,28T 16085 16085-0074 1
GEAR,67T 16085A 16085-0076 1
BRUSH,CARBON 21039 21039-0004 1
SPRING-BRUSH 21040 21040-0003 4
STARTER-ELECTRIC 21163 21163-0040 1
FUSE,BLADE,30A,GREEN 26006 26006-1006 2
WIRE-LEAD 26011 26011-0205 1
SWITCH,MAGNETIC 27010 27010-0099 1
LIMITER,16T&66T 39076 39076-0006 1
NUT,STARTER MOTOR 92015 92015-1476 1
SPACER,29.1X47.5X1.2 92026 92026-087 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 3
RING-O,STARTER MOTOR 92055B 92055-1381 2
GROMMET 92071 92071-0024 1
BOLT,6X22 92151 92151-1937 2
BOLT 92153 92153-1783 2
NUT,6MM 92210 92210-0188 1
