120
130
130
130
130A
130A
11009
11009
11009A
11056
11056A
11061
11061
18018
18088
18088A
18091
49107
49107A
49107B
49107C
92161
92161
92170
92170
92170
92170
92170
92170
92170
92170
92170
92171
92171
92200
92200
92200
92210
92210
92210

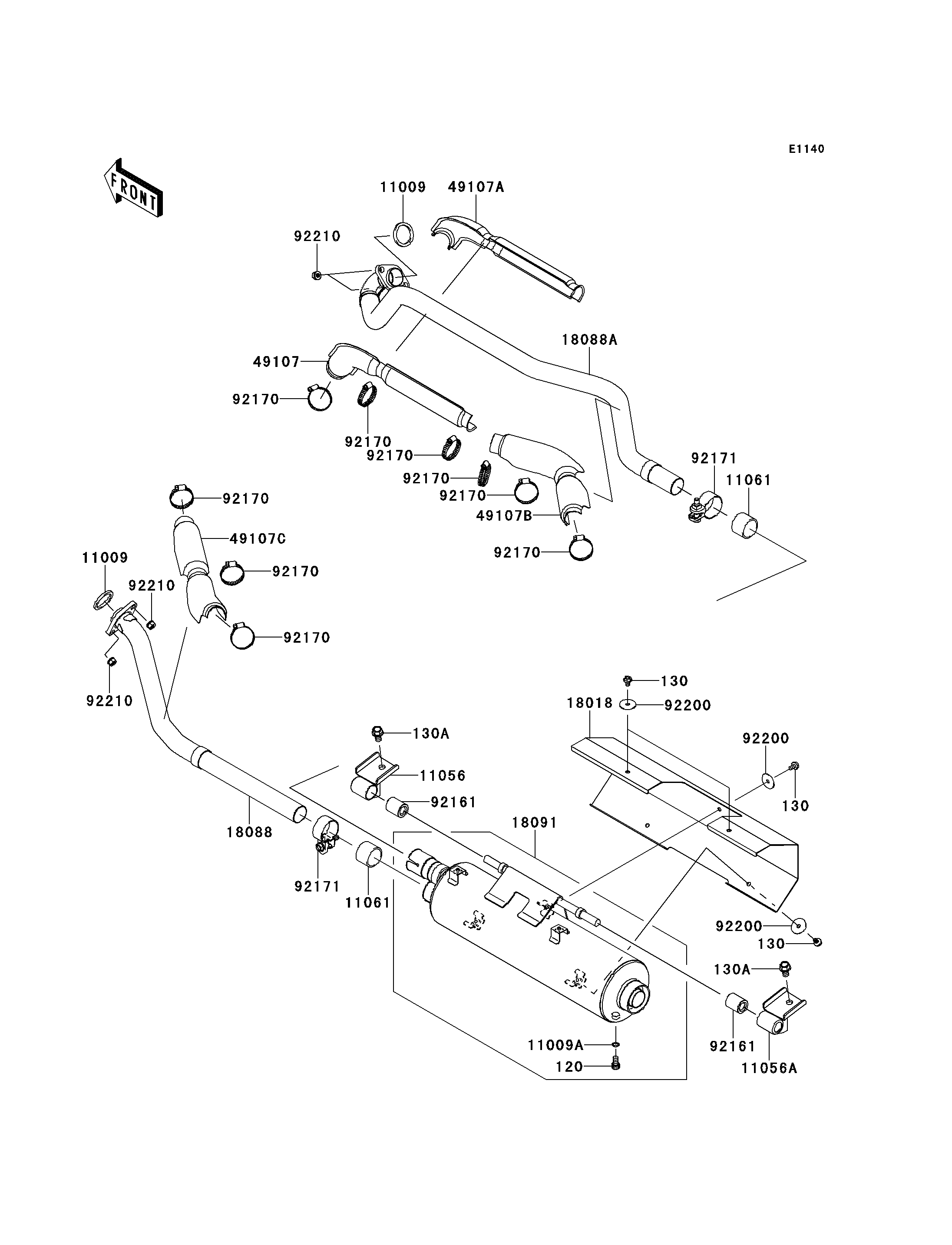

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X14 120 120CB0814 1
BOLT-FLANGED,6X10 130 130BD0610 5
BOLT-FLANGED,10X16 130A 130CA1016 2
GASKET,EXHAUST HOLDER 11009 11009-1894 2
GASKET 11009A 11009-3028 1
BRACKET,MUFFLER,FR 11056 11056-0532 1
BRACKET,MUFFLER,RR 11056A 11056-0533 1
GASKET,MUFFLER CONNECTING 11061 11061-0360 2
PLATE-HEAT GUARD 18018 18018-0553 1
PIPE-EXHAUST,RR 18088 18088-0713 1
PIPE-EXHAUST,FR 18088A 18088-0728 1
BODY-COMP-MUFFLER 18091 18091-0841 1
COVER-EXHAUST PIPE,FR-F,LH 49107 49107-0715 1
COVER-EXHAUST PIPE,FR-F,RH 49107A 49107-0716 1
COVER-EXHAUST PIPE,FR-R 49107B 49107-0717 1
COVER-EXHAUST PIPE,RR 49107C 49107-0718 1
DAMPER 92161 92161-0961 2
CLAMP 92170 92170-1036 9
CLAMP 92171 92171-1330 2
WASHER,6.5X12X2 92200 92200-0511 5
NUT,8MM 92210 92210-1242 4
