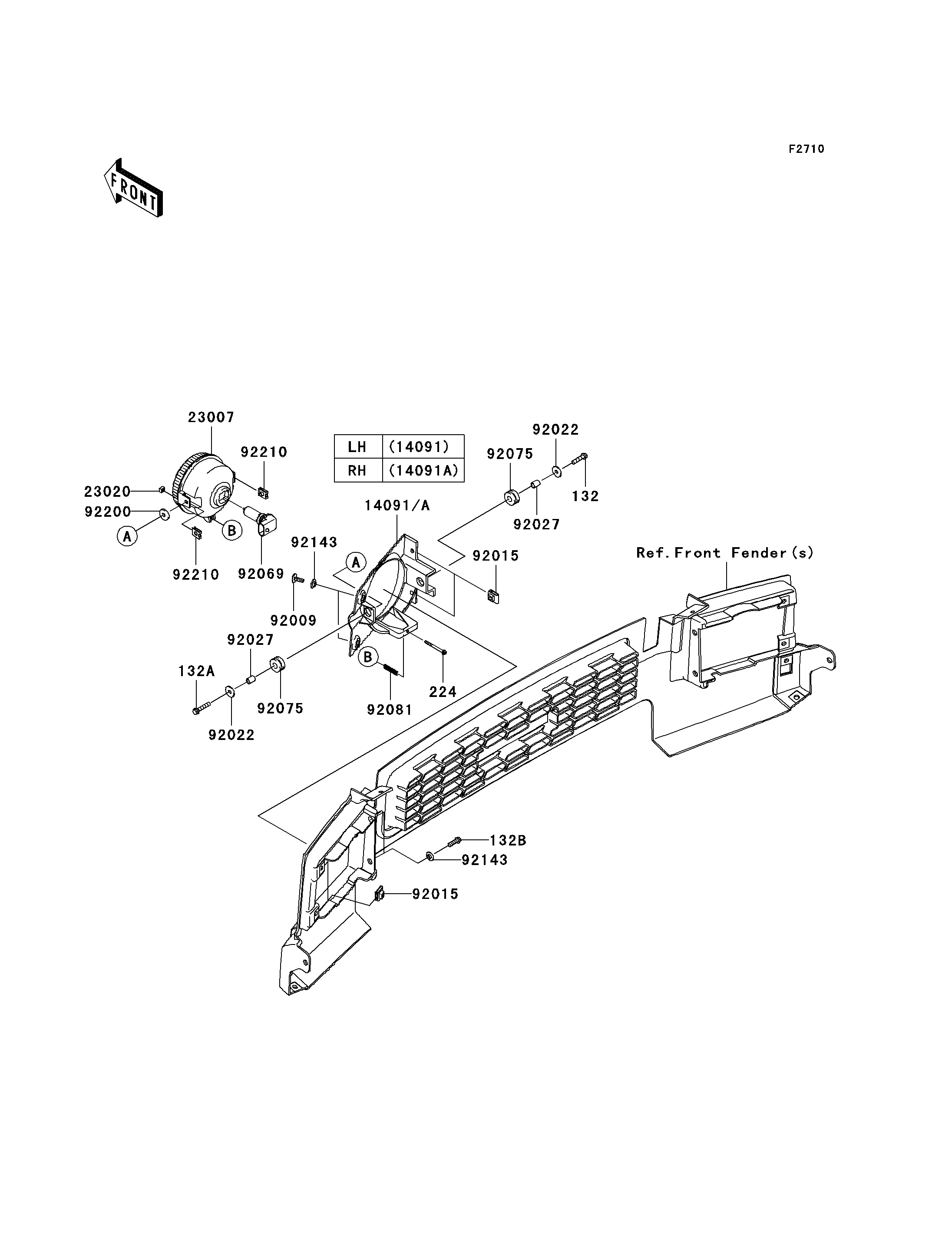

2010 Mule 4010 Trans4x4 Diesel Realtree APG HD - Headlight(s)

132
132A
132B
224
14091
14091A
23007
23020
92009
92015
92015
92022
92022
92027
92027
92069
92075
92075
92081
92143
92143
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132BA0625 2
BOLT-FLANGED-SMALL,6X30 132A 132BA0630 2
BOLT-FLANGED-SMALL,6X20 132B 132BB0620 4
SCREW-PAN-WP-CROS,4X45 224 224AA0445 2
COVER,HEAD LAMP,LH 14091 14091-0827 1
COVER,HEAD LAMP,RH 14091A 14091-0828 1
LENS-COMP,HEAD LAMP 23007 23007-0096 2
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
SCREW,6X16 92009 92009-1621 4
NUT,CLAMP,6MM 92015 92015-1678 8
WASHER,6.5X20X1.6 92022 92022-125 4
COLLAR,6.8X10X12 92027 92027-162 4
BULB,12V 35/35W 92069 92069-0019 2
DAMPER 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
COLLAR 92143 92143-1087 8
WASHER,6.5X20X3.2 92200 92200-0359 2
NUT 92210 92210-1125 4
