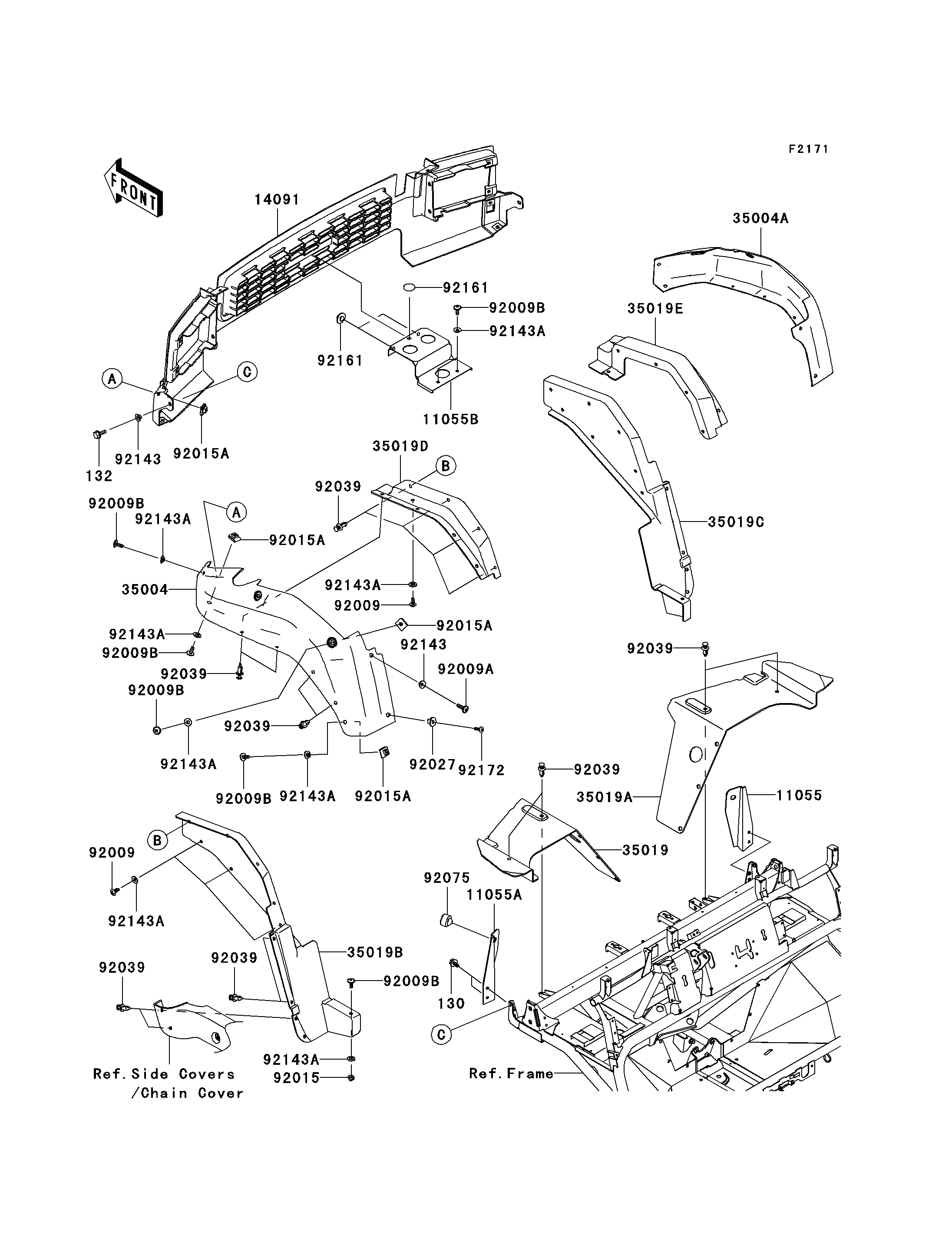

2010 Mule 4010 Trans4x4 Diesel Realtree APG HD - Front Fender(s)

130
132
11055
11055A
11055B
14091
35004
35004A
35019
35019A
35019B
35019C
35019D
35019E
92009
92009
92009A
92009B
92009B
92009B
92009B
92009B
92009B
92015
92015A
92015A
92015A
92015A
92027
92039
92039
92039
92039
92039
92039
92039
92075
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92161
92161
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BB0614 4
BOLT-FLANGED-SMALL,6X20 132 132BB0620 2
BRACKET 11055 11055-0917 1
BRACKET 11055A 11055-0918 1
BRACKET 11055B 11055-0954 1
COVER,FRONT GRILL,CAMOUFLAGE 14091 14091-0976-16P 1
FENDER-FRONT,SIDE,LH,F.BLACK 35004 35004-0123-6Z 1
FENDER-FRONT,SIDE,RH,F.BLACK 35004A 35004-0124-6Z 1
FLAP,FR,LH 35019 35019-0062 1
FLAP,FR,RH 35019A 35019-0063 1
FLAP,SIDE,RR,LH 35019B 35019-0064 1
FLAP,SIDE,RR,RH 35019C 35019-0065 1
FLAP,SIDE,MIDDLE,LH 35019D 35019-0068 1
FLAP,SIDE,MIDDLE,RH 35019E 35019-0069 1
SCREW,TAPPING,6X16 92009 92009-1166 8
SCREW,6X22,BLACK 92009A 92009-1256 2
SCREW,6X16 92009B 92009-1621 14
NUT,LOCK,FLANGED,6MM 92015 92015-1675 2
NUT,CLAMP,6MM 92015A 92015-1678 10
COLLAR 92027 92027-1767 2
RIVET 92039 92039-1229 28
DAMPER 92075 92075-015 2
COLLAR 92143 92143-1057 4
COLLAR 92143A 92143-1087 22
DAMPER,RUBBER 92161 92161-1200 3
SCREW 92172 92172-1072 2
