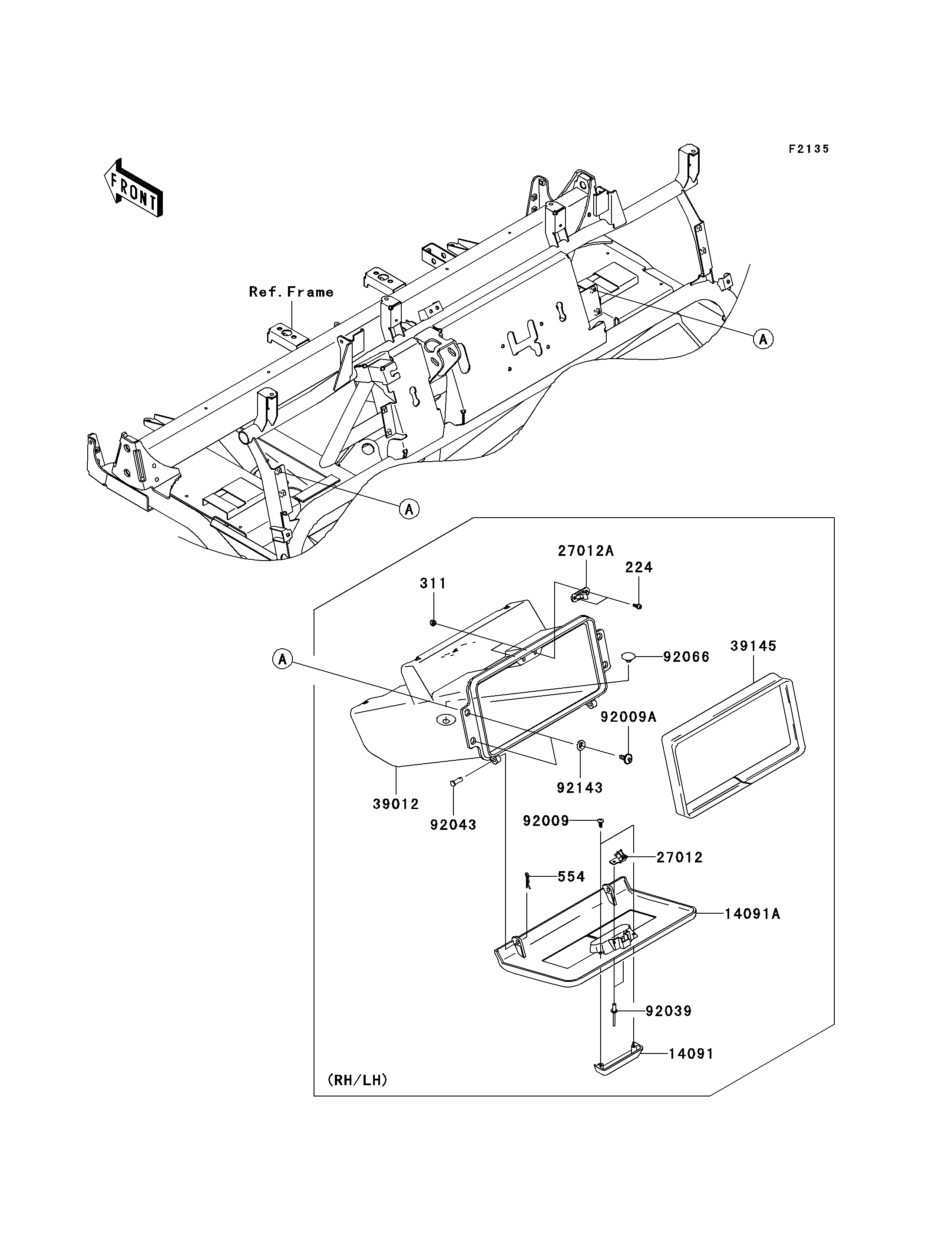

2010 Mule 4010 Trans4x4 Diesel Realtree APG HD - Front Box

224
311
554
14091
14091A
27012
27012A
39012
39145
92009
92009A
92039
92043
92066
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS,4X12 224 224AB0412 4
NUT-HEX 311 311AB0400 4
PIN-SNAP 554 554DA0600 4
COVER,STORAGE GRIP,S.M.BROWN 14091 14091-1659-275 2
COVER,CONTROL PANEL,CAMOUFLAGE 14091A 14091-1660-16P 2
HOOK 27012 27012-1607 2
HOOK 27012A 27012-1612 2
CASE-STORAGE,RH,S.M.BROWN 39012 39012-1061-275 2
TRIM-SEAL,L=774 39145 39145-1130 2
SCREW,TAPPING,4X12 92009 92009-1444 4
SCREW,6X16 92009A 92009-1621 8
RIVET 92039 92039-1041 4
PIN,6X14.5 92043 92043-125 4
PLUG 92066 92066-1485 2
COLLAR 92143 92143-1087 8
