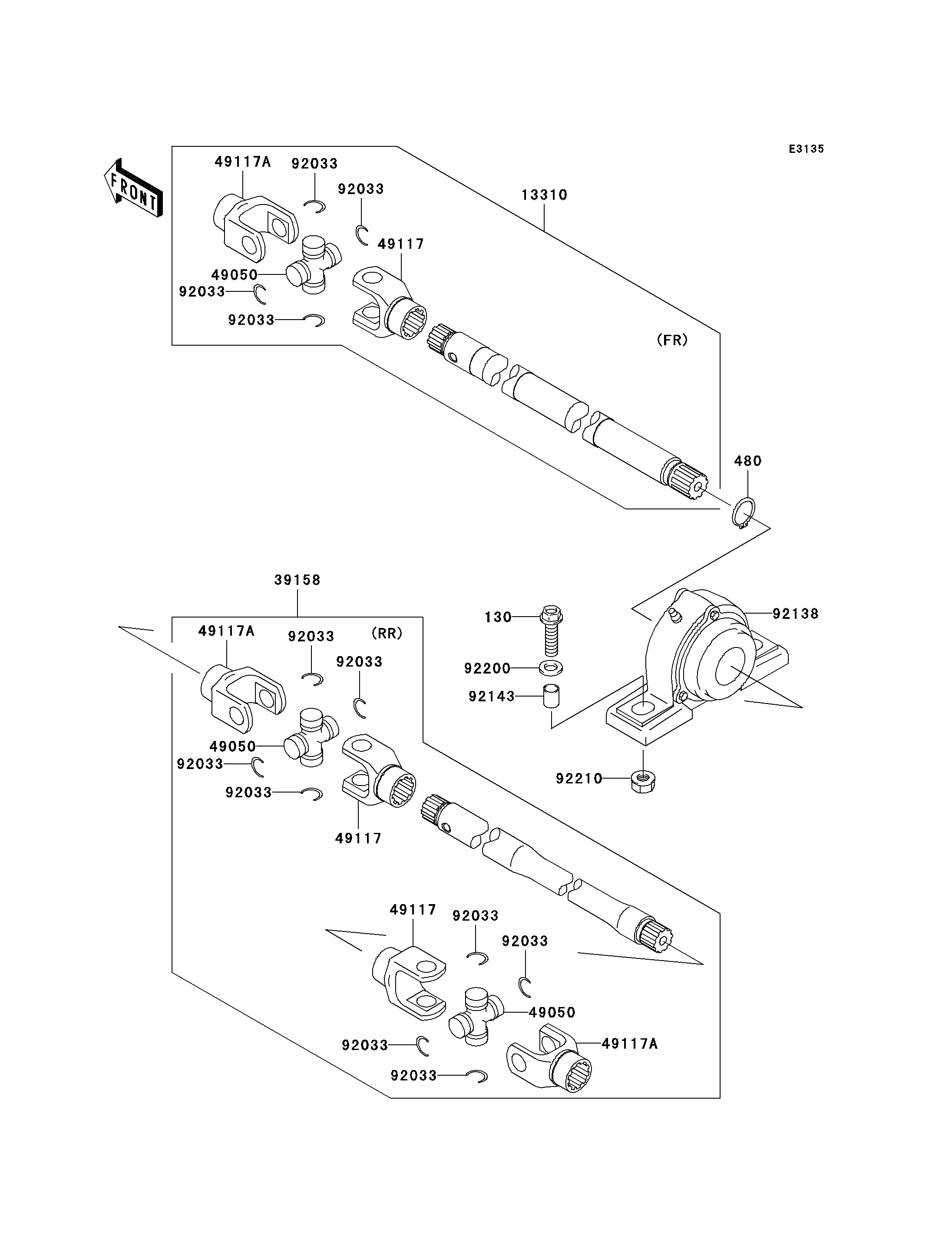

Mule 3010 Trans4x4 Hardwoods Green HD - Drive Shaft-Propeller

130
480
13310
39158
49050
49050
49050
49117
49117
49117
49117A
49117A
49117A
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92138
92143
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X35 130 130J1035 2
CIRCLIP-TYPE-C,25MM 480 480J2500 1
SHAFT-ASSY 13310 13310-1027 1
SHAFT-ASSY-DRIVE,RR PROPELLER 39158 39158-7501 1
SPIDER 49050 49050-1075 3
YOKE,DRIVE 49117 49117-1095 3
YOKE,DRIVE 49117A 49117-1096 3
RING-SNAP 92033 92033-1030 12
BEARING-COMP 92138 92138-1052 1
COLLAR,10.3X12.7X15 92143 92143-1634 2
WASHER,10.5X19X2.3 92200 92200-1042 2
NUT,LOCK,10MM 92210 92210-1204 2
