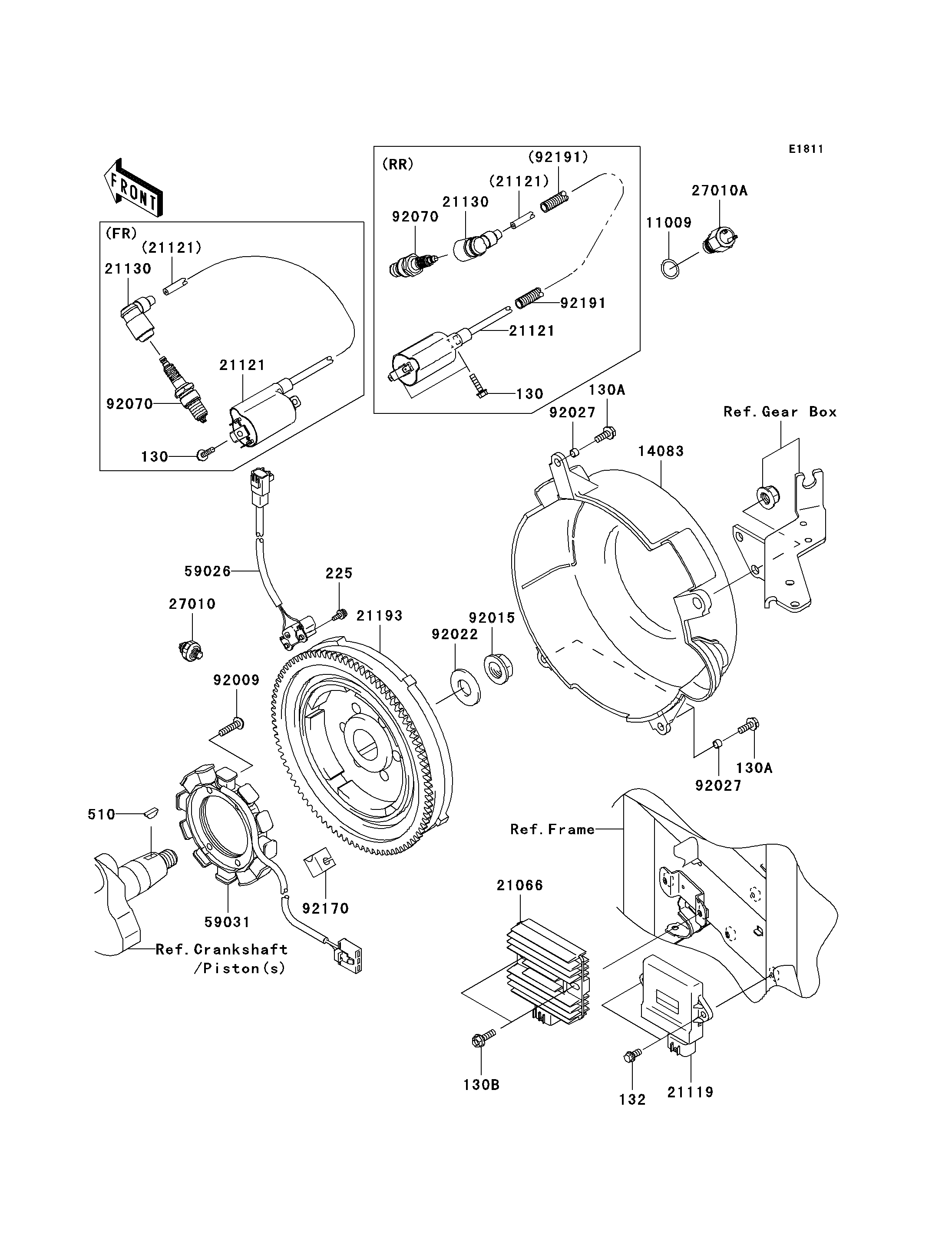

Mule 3010 Trans4x4 Hardwoods Green HD - Generator/Ignition Coil

130
130
130A
130A
130B
132
225
510
11009
14083
21066
21119
21121
21121
21130
21130
21193
27010
27010A
59026
59031
92009
92015
92022
92027
92027
92070
92070
92170
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130B0520 4
BOLT-FLANGED,6X16 130A 130B0616 3
BOLT-FLANGED,M6X20 130B 130J0620 2
BOLT-FLANGED-SMALL 132 132J0612 2
SCREW-PAN-WSP-CROS 225 225B0414 2
KEY-WOODRUFF 510 510A5100 1
GASKET 11009 11009-2766 1
COVER-FLYWHEEL 14083 14083-2052 1
REGULATOR-VOLTAGE 21066 21066-1127 1
IGNITER 21119 21119-0045 1
COIL-IGNITION 21121 21121-2092 2
CAP-SPARK PLUG 21130 21130-2060 2
FLYWHEEL-ASSY 21193 21193-2184 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
SWITCH,TEMP 27010A 27010-2182 1
COIL-PULSING 59026 59026-2065 1
COIL-CHARGING 59031 59031-2126 1
SCREW 92009 92009-2273 4
NUT 92015 92015-2167 1
WASHER 92022 92022-2229 1
COLLAR,6.2X7.8X5 92027 92027-2096 3
PLUG-SPARK,BPR2ES(NGK),SOLID 92070 92070-2110 2
CLAMP 92170 92170-2056 1
TUBE 92191 92191-2124 1
