132
21175
21176
21176A
21176B
27002
27002
92009
92055

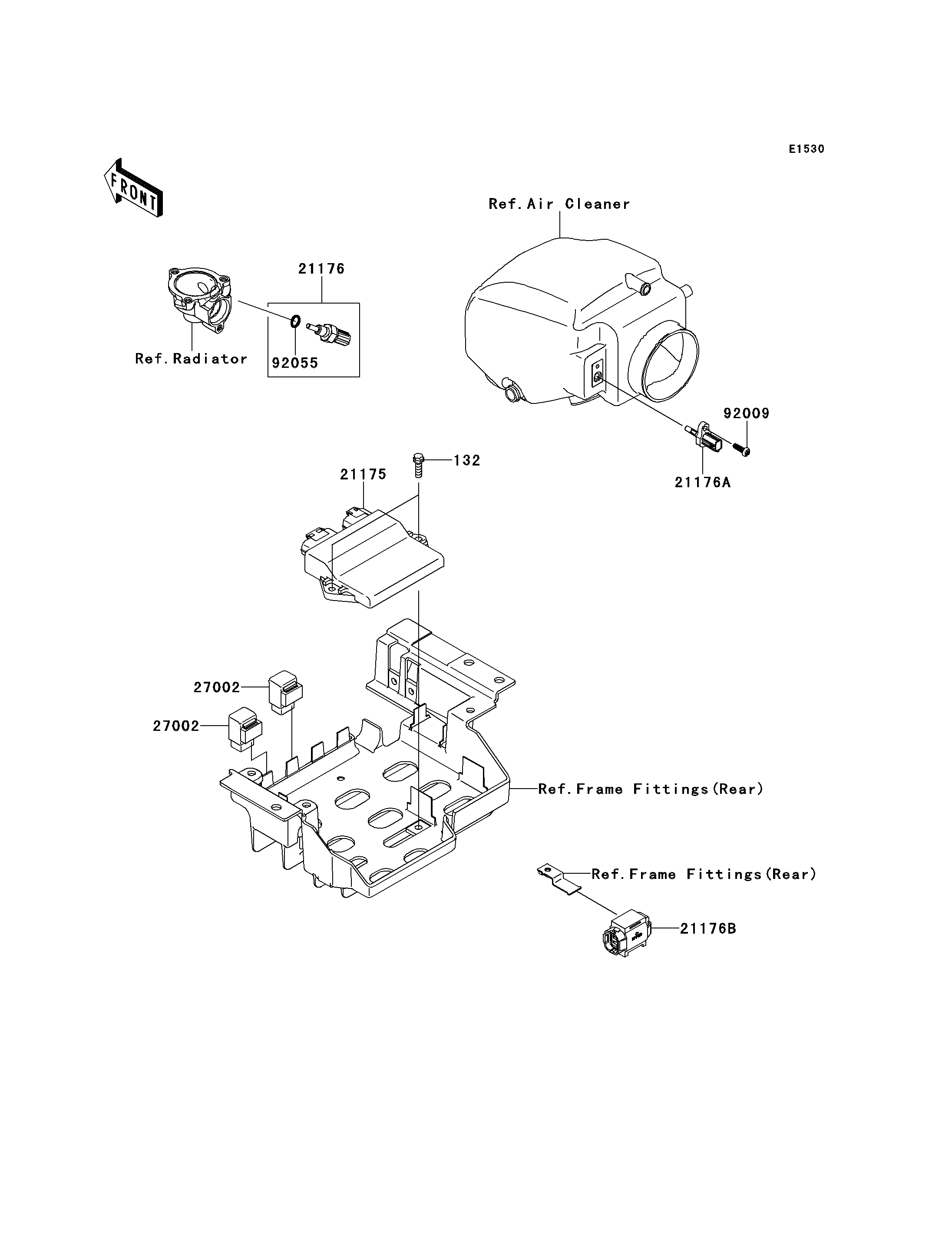

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X20 132 132BD0620 2
CONTROL UNIT-ELECTRONIC 21175 21175-0287 1
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,AIR TEMPERATURE 21176A 21176-0048 1
SENSOR,VEHICLE-DOWN 21176B 21176-0066 1
RELAY-ASSY 27002 27002-1062 2
SCREW,TAPPING,5X16 92009 92009-1984 1
RING-O,9.5X1.9 92055 92055-0016 1
