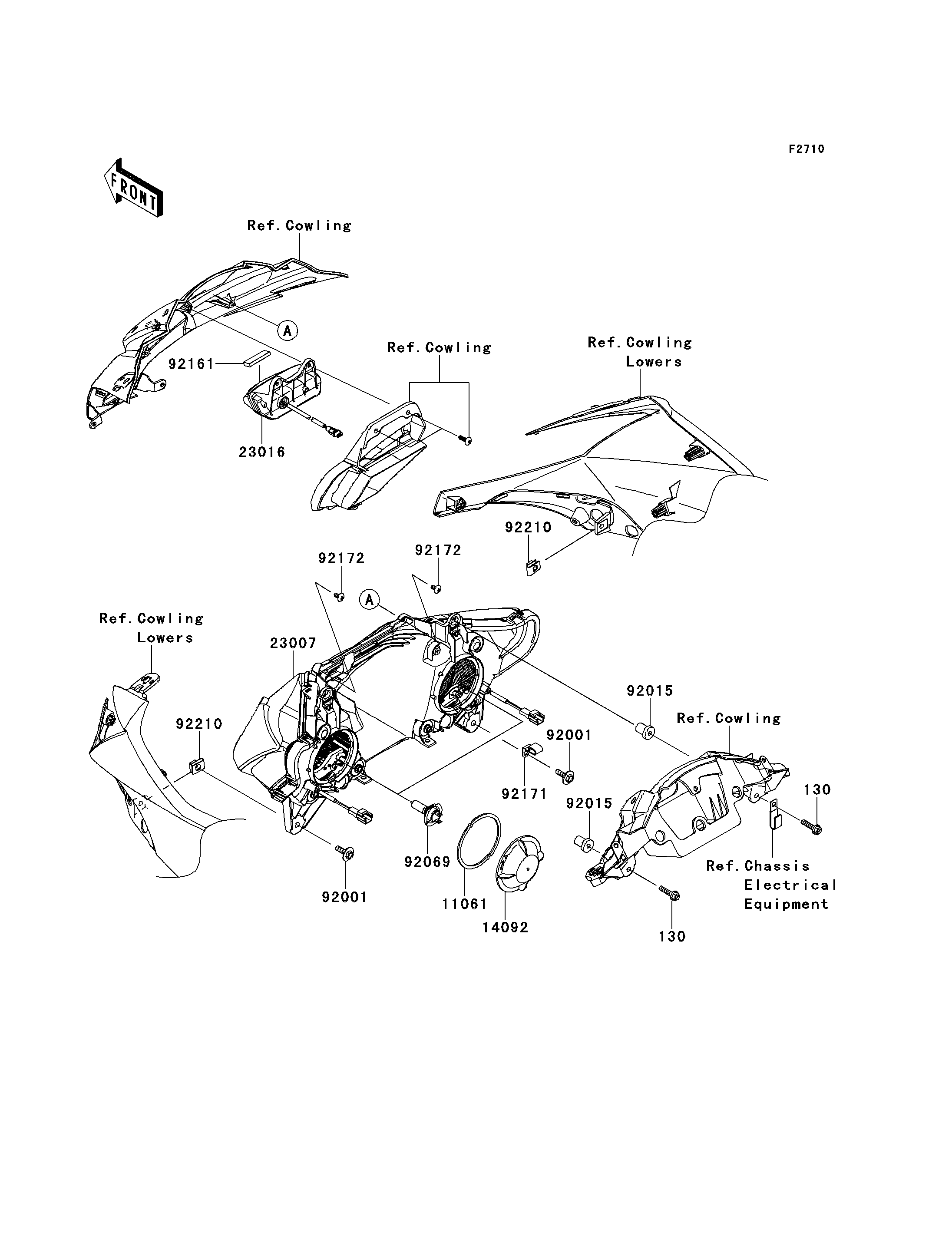

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BB0625 2
GASKET 11061 11061-0746 2
COVER,HEAD LAMP 14092 14092-0793 2
LENS-COMP,HEAD LAMP 23007 23007-0155 1
LAMP-ASSY,POSITION LAMP 23016 23016-0045 1
BOLT,UPSET-WP,6X22 92001 92001-1774 2
NUT,RUBBER,6MM 92015 92015-1692 2
BULB,12V 55W,H7 92069 92069-1126 2
DAMPER,12X40X5 92161 92161-0972 1
CLAMP 92171 92171-0926 1
SCREW,TAPPING,5X10 92172 92172-0262 2
NUT 92210 92210-0130 2
