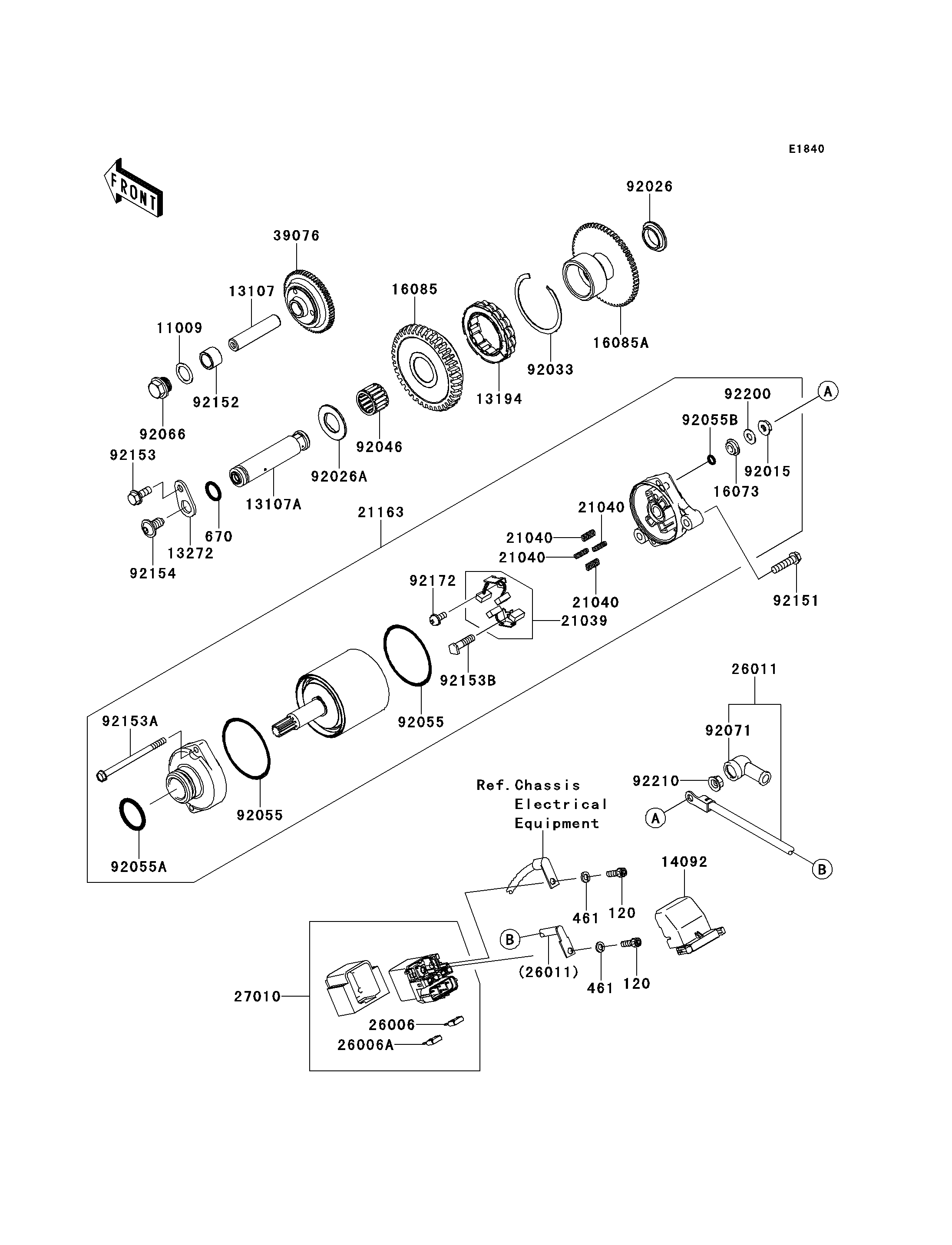

120
120
461
461
670
11009
13107
13107A
13194
13272
14092
16073
16085
16085A
21039
21040
21040
21040
21040
21163
26006
26006A
26011
27010
39076
92015
92026
92026A
92033
92046
92055
92055
92055A
92055B
92066
92071
92151
92152
92153
92153A
92153B
92154
92172
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X10 120 120CB0510 2
WASHER-SPRING,5MM,BLACK 461 461DB0500 2
O RING,14MM 670 670D2014 1
GASKET,14.3X20X1 11009 11009-1238 1
SHAFT 13107 13107-0231 1
SHAFT,ONEWAY CLUTCH 13107A 13107-0233 1
CLUTCH-ONEWAY 13194 13194-0553 1
PLATE 13272 13272-0888 1
COVER 14092 14092-0109 1
INSULATOR 16073 16073-0053 1
GEAR,39T 16085 16085-0142 1
GEAR,62T 16085A 16085-0143 1
BRUSH,CARBON 21039 21039-0004 1
SPRING-BRUSH 21040 21040-0003 4
STARTER-ELECTRIC 21163 21163-0064 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 1
FUSE,MINI BLADE,30A,GREEN 26006A 26006-1080 1
WIRE-LEAD 26011 26011-0308 1
SWITCH 27010 27010-0129 1
LIMITER 39076 39076-0553 1
NUT,STARTER MOTOR 92015 92015-1476 1
SPACER,RH 92026 92026-0157 1
SPACER,LH 92026A 92026-0158 1
RING-SNAP 92033 92033-3731 1
BEARING-NEEDLE,FMJ-182417 92046 92046-0040 1
RING-O 92055 92055-0136 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
PLUG,14X8 92066 92066-1273 1
GROMMET 92071 92071-0024 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 2
COLLAR,12.2X17X12 92152 92152-0870 1
BOLT,FLANGED,6X16 92153 92153-1551 1
BOLT 92153A 92153-1850 2
BOLT 92153B 92153-1866 1
BOLT,SOCKET,8X16 92154 92154-0397 1
SCREW 92172 92172-0334 1
WASHER 92200 92200-0386 1
NUT,6MM 92210 92210-0188 1
