130
11056
21003
21007
21066
92037
92150
92154
92154
92171
92172
92172
92172
92200

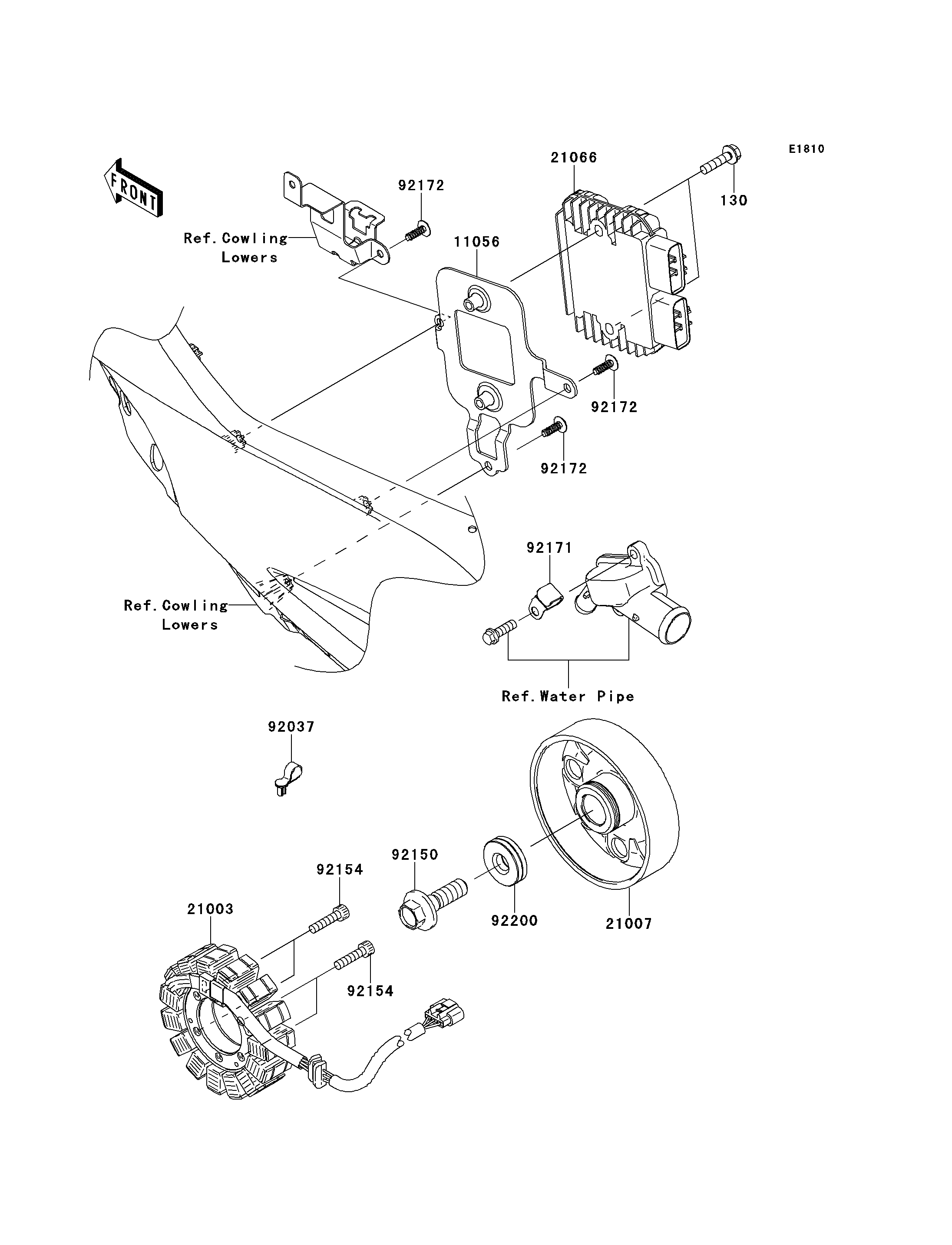

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BA0625 2
BRACKET,REGULATOR 11056 11056-0191 1
STATOR 21003 21003-0107 1
ROTOR 21007 21007-0157 1
REGULATOR-VOLTAGE 21066 21066-0028 1
CLAMP,SPEED,L=43 92037 92037-1290 1
BOLT,12X40 92150 92150-1717 1
BOLT,SOCKET,6X25 92154 92154-0477 4
CLAMP 92171 92171-0534 1
SCREW,TAPPING,5X16 92172 92172-0175 3
WASHER,12X34X9 92200 92200-0369 1
