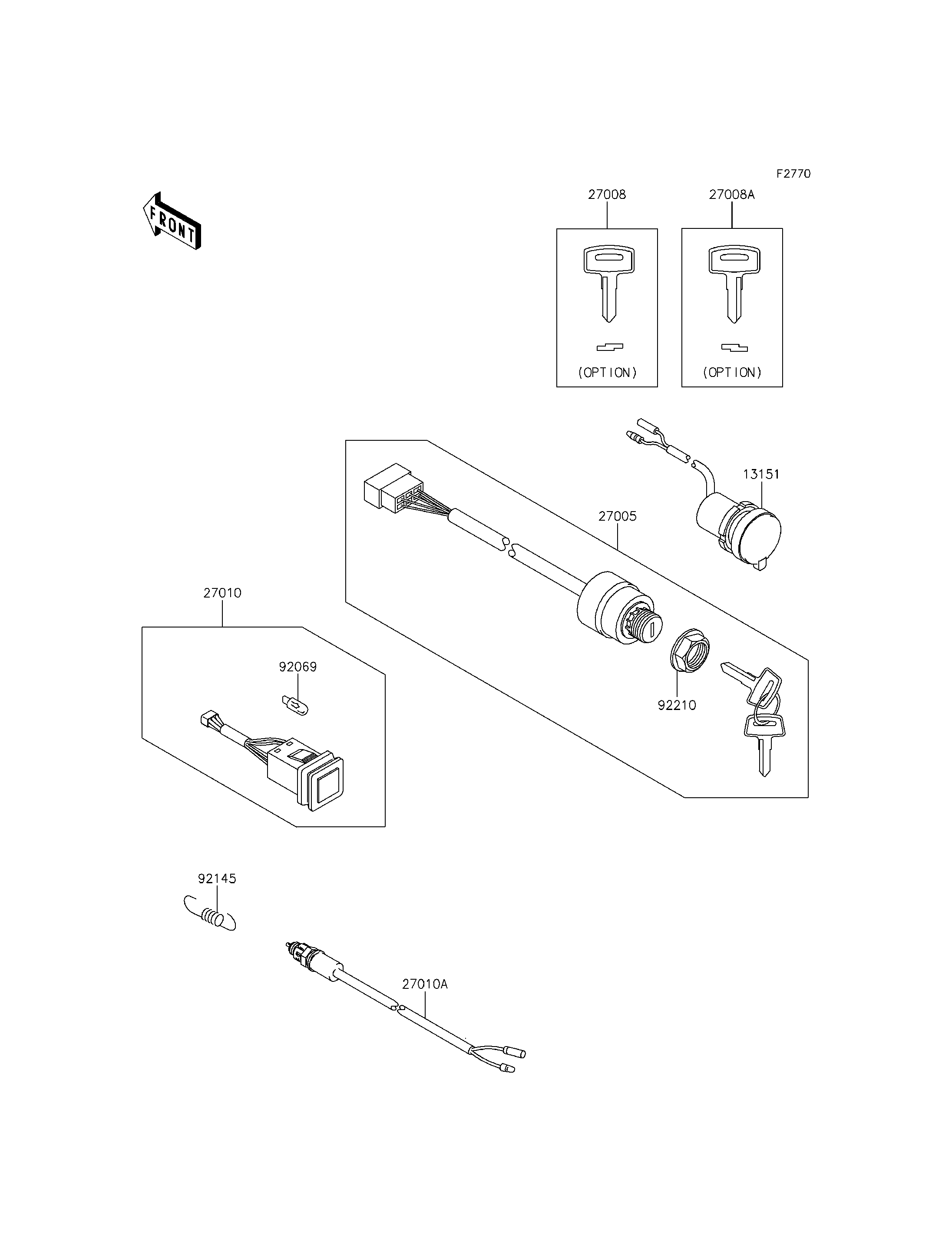

2014 MULE 610 4x4 XC CAMO - Ignition Switch

13151
27005
27008
27008A
27010
27010A
92069
92145
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-COMP,D.C.TERMINAL 13151 13151-0003 1
SWITCH-ASSY-IGNITION 27005 27005-0011 1
KEY-LOCK,BLANK 27008 27008-1153 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-1157 1 (OPTION)
SWITCH,HEAD LAMP 27010 27010-0105 1
SWITCH,REAR BRAKE 27010A 27010-1475 1
BULB,12V 1.7W 92069 92069-0036 1
SPRING,REAR BRAKE SWITCH 92145 92145-7508 1
NUT,IGNITION SWITCH 92210 92210-1264 1
