220
601
11009
11061
11065
13183
16126
49015
49120
59071
92043
92043
92043
92043
92049
92049A
92066
92066A
92066A
92150

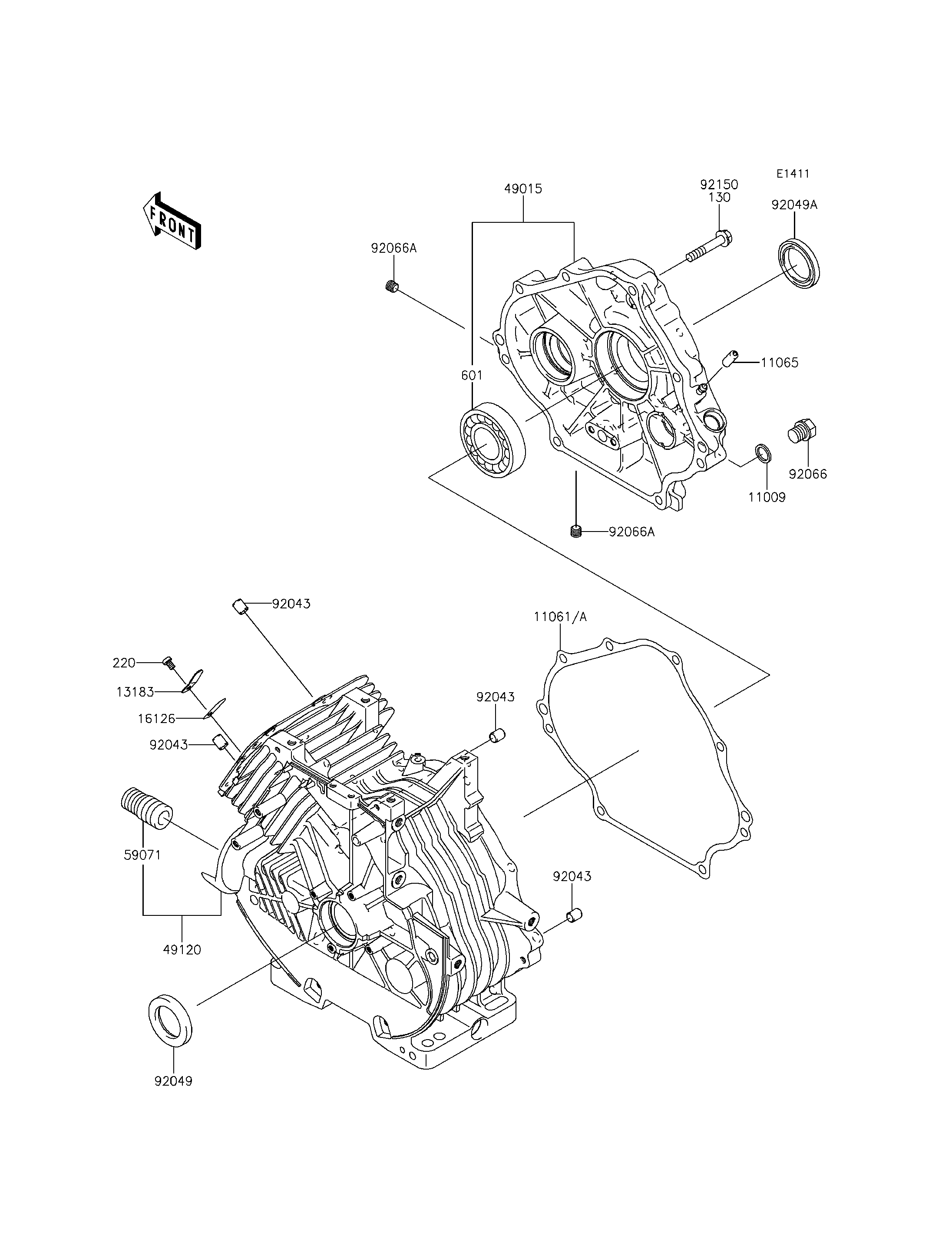

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,5X8 220 220AA0508 1
BEARING-BALL 601 601A6207 1
GASKET 11009 11009-2175 1
GASKET,COVER-CRANKCASE 11061 11061-0798 1 ( FJ400DE090806 - )
CAP 11065 11065-7005 1
PLATE 13183 13183-2120 1
VALVE 16126 16126-2146 1
COVER-CRANKCASE 49015 49015-7050 1
CRANKCASE-COMP 49120 49120-6162 1
JOINT 59071 59071-2079 1
PIN 92043 92043-7001 4
SEAL-OIL,SD 35X48X8 R HS 92049 92049-7010 1
SEAL-OIL 92049A 92049-7018 1
PLUG,14X12 92066 92066-2253 1
PLUG 92066A 92066-7026 2
BOLT,8X45 92150 92150-2252 8 ( FJ400DE090806 - )
