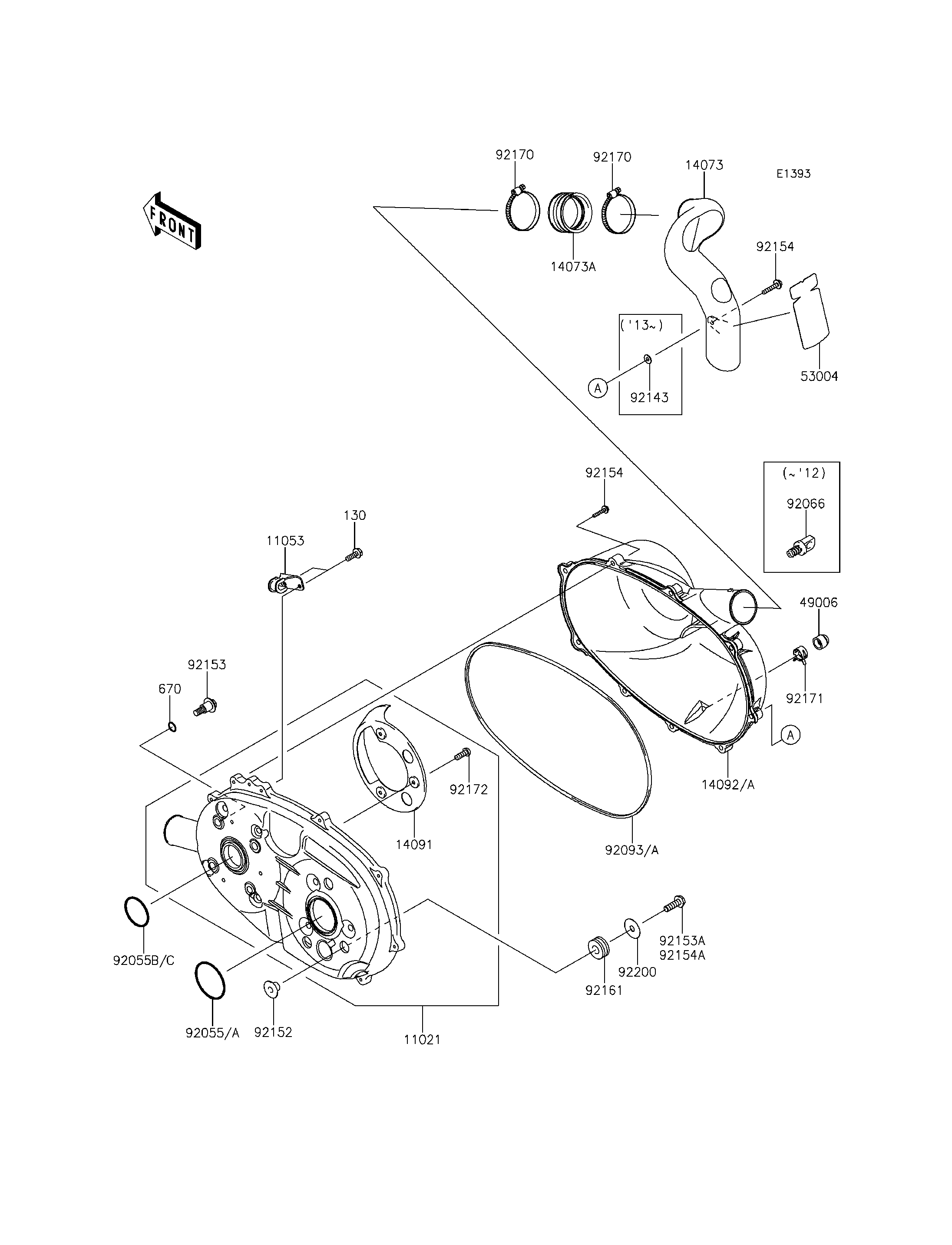

2014 MULE 610 4x4 XC CAMO - Converter Cover

130
670
11021
11053
14073
14073A
14091
14092
49006
53004
92055A
92055B
92093A
92143
92152
92153
92154
92154
92154A
92161
92170
92170
92171
92172
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130BB0618 2
O RING,12MM 670 670D2012 4
CASE-ASSY,BELT CONVERTER 11021 11021-0023 1
BRACKET 11053 11053-1483 1
DUCT,EXHAUST 14073 14073-0287 1
DUCT,JOINT 14073A 14073-1775 1
COVER 14091 14091-0391 1
COVER,BELT CONVERTER 14092 14092-1007 1
BOOT,DRAIN 49006 49006-3718 1
MAT 53004 53004-0051 1
RING-O,64MM 92055A 92055-0748 1
RING-O,49.4MM 92055B 92055-0749 1
SEAL 92093A 92093-0586 1
COLLAR 92143 92143-1087 1
COLLAR 92152 92152-0894 3
BOLT,8X26.5 92153 92153-0594 4
BOLT,6X35 92154 92154-0342 9
BOLT,FLANGED,8X25 92154A 92154-1068 3
DAMPER 92161 92161-1484 3
CLAMP 92170 92170-1764 2
CLAMP 92171 92171-0329 1
SCREW,5X14 92172 92172-0166 3
WASHER,8.5X29X0.8 92200 92200-0574 3
