35019
35019A
92009
92009
92009A
92015
92022
92143
92143
92143
92172

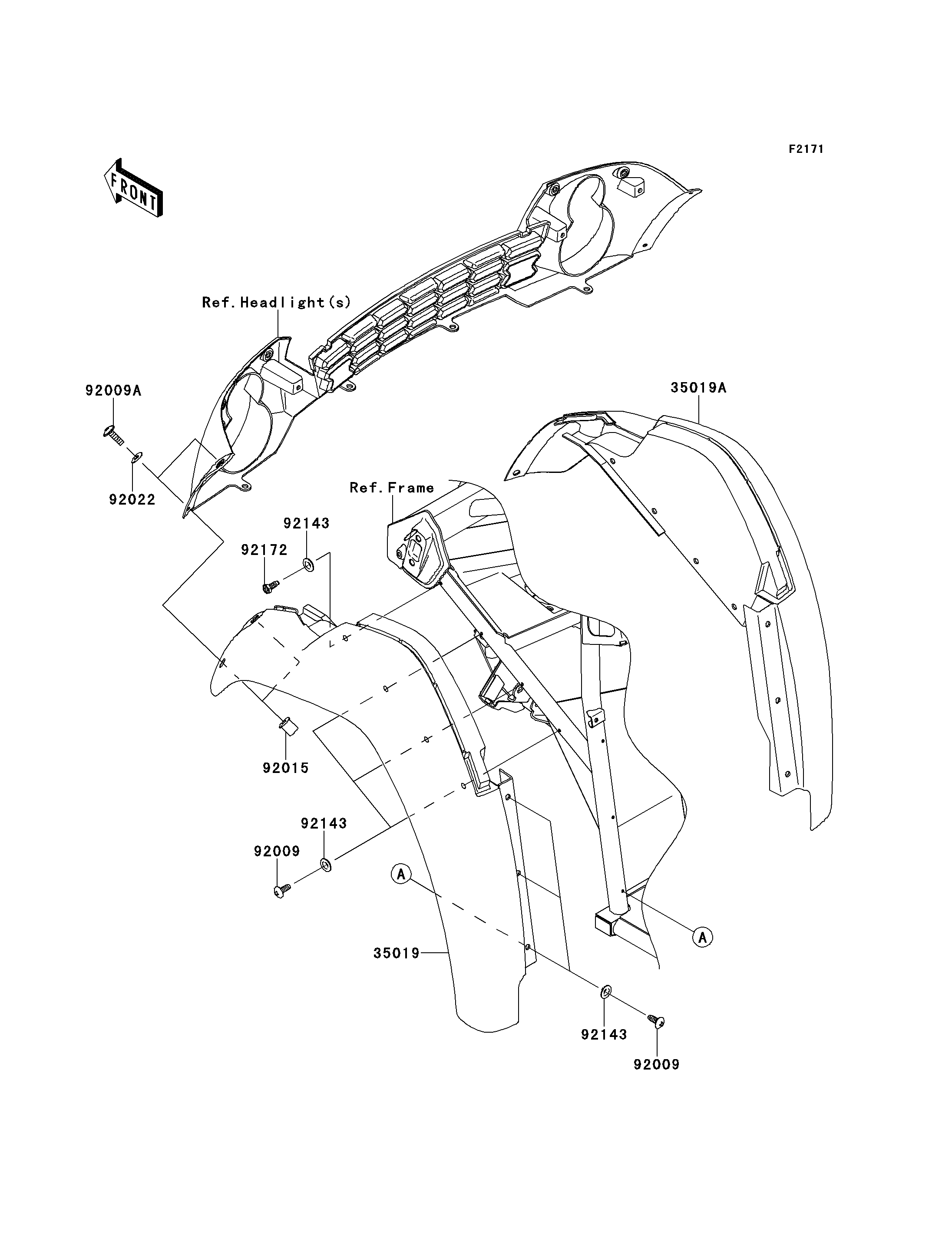

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FLAP,FR,LH,F.BLACK 35019 35019-0034-6Z 1
FLAP,FR,RH,F.BLACK 35019A 35019-0035-6Z 1
SCREW,TAPPING,6X16 92009 92009-1166 12
SCREW,6X22,BLACK 92009A 92009-1256 4
NUT 92015 92015-1700 4
WASHER,6.5X16X1 92022 92022-1143 4
COLLAR 92143 92143-1087 14
SCREW,TAPPING,6X16 92172 92172-0205 2
