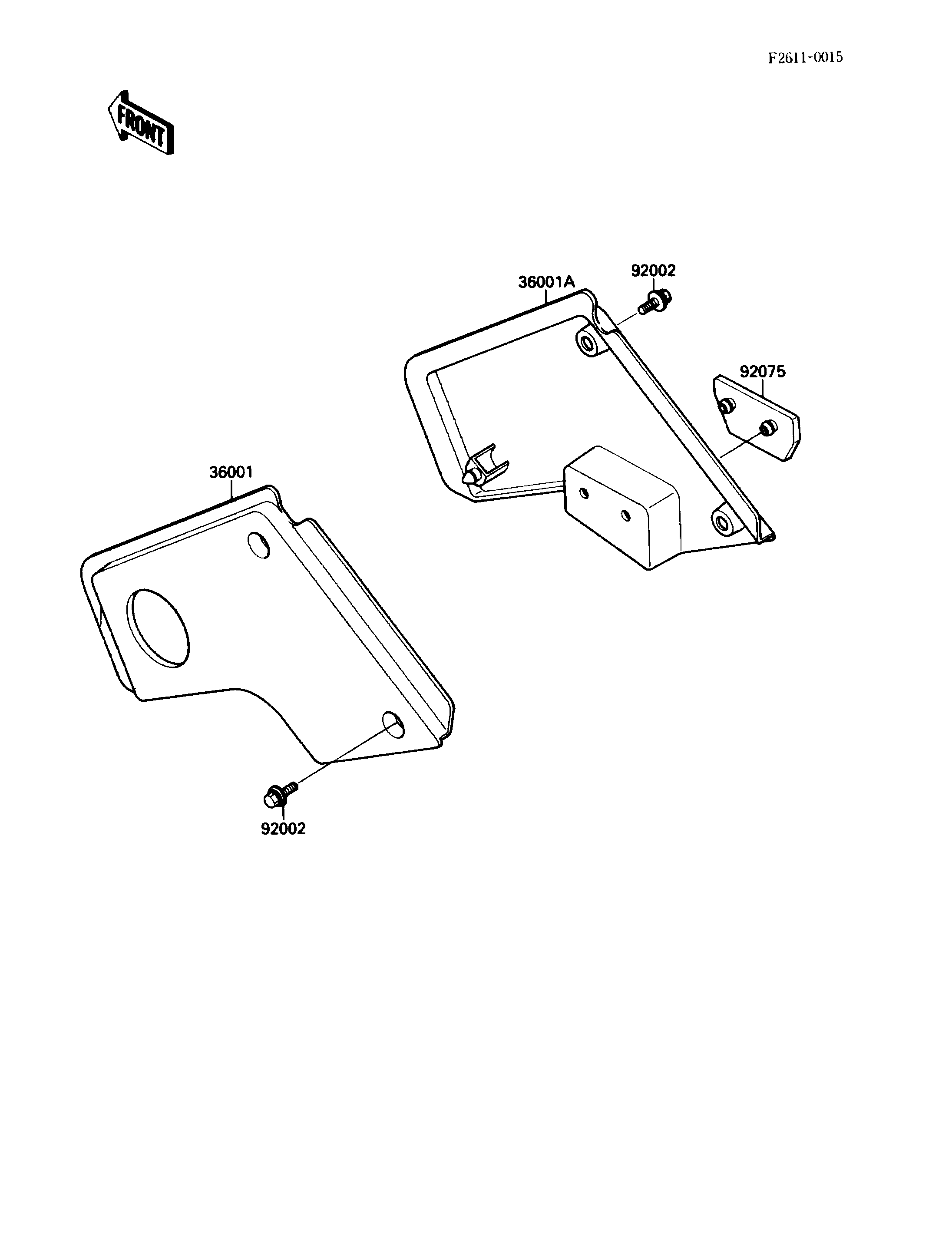

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,BLUE 36001 36001-1353-BG 1
COVER-SIDE,RH,BLUE 36001A 36001-1354-BG 1
BOLT,L=12 92002 92002-1662 4
DAMPER 92075 92075-1860 1
