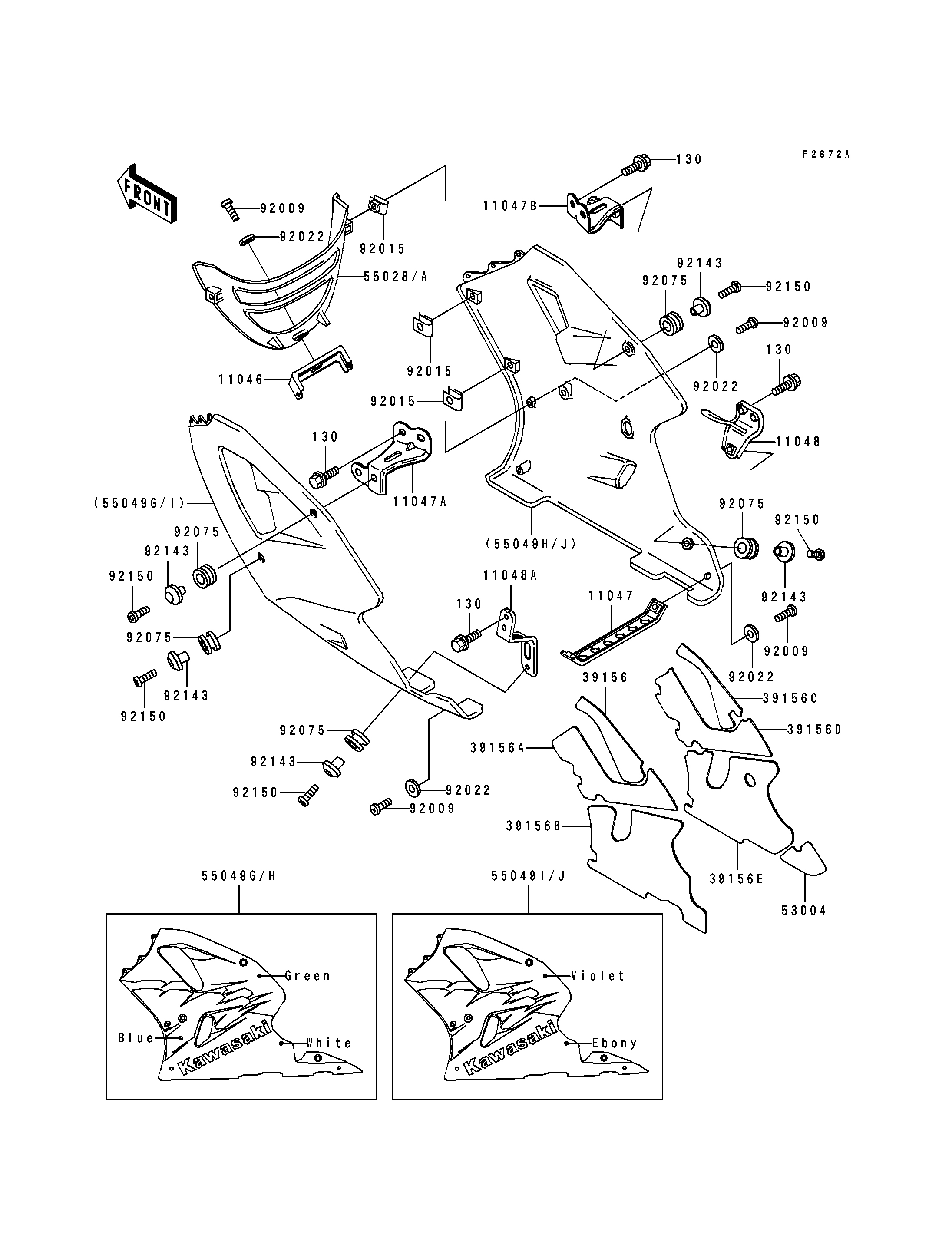

1994 Ninja® ZX-7 - Cowling Lowers(ZX750-L2)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LOWER COWLING,FR 11046 11046-1683 1
BRACKET,LWR COWLING,RR 11047 11047-1258 1
BRACKET,LWR COWLING,LH,UPP 11047A 11047-1863 1
BRACKET,LWR COWLING,RH,UPP 11047B 11047-1864 1
BRACKET,LWR COWLING,RH,LWR 11048 11048-1149 1
BRACKET,LWR COWLING,LH,LWR 11048A 11048-1310 1
PAD,LWR COWLING,LH,UPP 39156 39156-1320 1
PAD,LWR COWLING,LH,CNT 39156A 39156-1321 1
PAD,LWR COWLING,LH,LWR 39156B 39156-1322 1
PAD,LWR COWLING,RH,UPP 39156C 39156-1323 1
PAD,LWR COWLING,RH,CNT 39156D 39156-1324 1
PAD,LWR COWLING,RH,LWR 39156E 39156-1325 1
MAT,LWR COWLING,RH 53004 53004-1084 1
COWLING,FR,EBONY 55028 55028-1288-H8 1
COWLING,FR,P.A.WHITE 55028A 55028-1288-R1 1
COWLING.,LWR,LH,GREEN/WHITE 55049G 55049-5242-CK 1
COWLING.,LWR,RH,GREEN/WHITE 55049H 55049-5243-CK 1
COWLING.,LWR,LH,EBONY/VIOLET 55049I 55049-5245-74 1
COWLING.,LWR,RH,EBONY/VIOLET 55049J 55049-5246-74 1
SCREW,5X16 92009 92009-1654 7
NUT,5MM 92015 92015-1798 6
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 7
DAMPER 92075 92075-1634 6
COLLAR,BLACK 92143 92143-1226 6
BOLT,SOCKET,6X18 92150 92150-1553 6
BOLT-FLANGED,6X16,BLACK 130 130J0616 8
