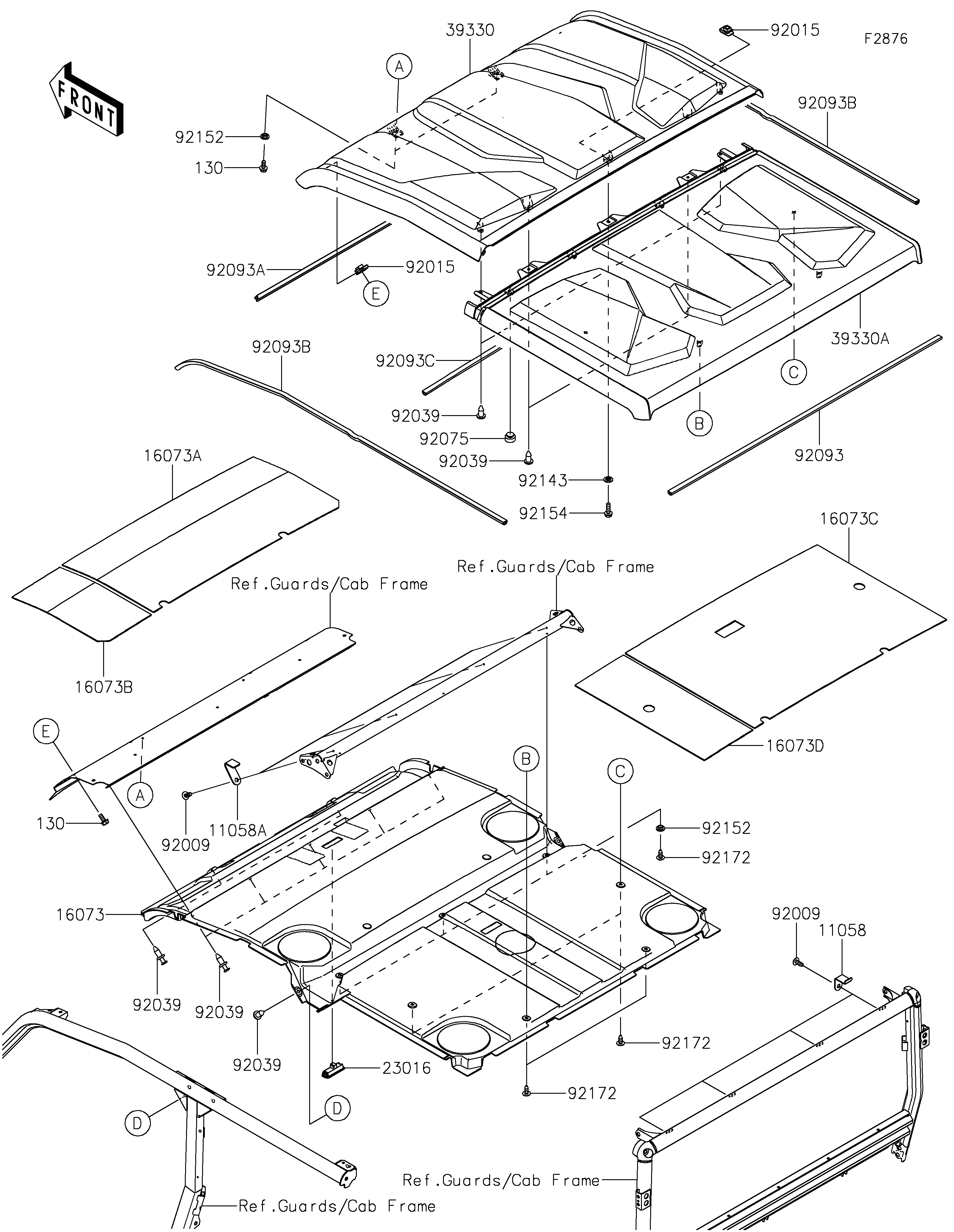

2025 RIDGE XR CREW - Sun Top

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
16073
16073A
16073B
16073C
16073D
23016
39330
39330A
92009
92009
92015
92015
92039
92039
92039
92039
92039
92075
92093
92093A
92093B
92093B
92093C
92143
92152
92152
92154
92172
92172
92172
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ROOF 11058 11058-0254 4
BRACKET,ROOF,MID 11058A 11058-2052 4
INSULATOR,ROOM LIGHT 16073 16073-0959 1
INSULATOR,HEAT,RH 16073A 16073-0981 1
INSULATOR,HEAT,LH 16073B 16073-0982 1
INSULATOR,RH 16073C 16073-0985 1
INSULATOR,LH 16073D 16073-0986 1
LAMP-ASSY,ROOM 23016 23016-0673 1
ROOF,FR 39330 39330-0003 1
ROOF,RR 39330A 39330-0004 1
SCREW,TAPPING,6X16 92009 92009-1166 8
NUT,6MM 92015 92015-1602 3
RIVET 92039 92039-0776 15
DAMPER 92075 92075-1598 4
SEAL,ROOF,RR 92093 92093-0778 1
SEAL,ROOF,FR 92093A 92093-0812 1
SEAL,ROOF,SIDE 92093B 92093-0814 2
SEAL,ROOF,MID 92093C 92093-0815 1
COLLAR 92143 92143-1087 1
COLLAR,6.3X9.5X4.1 92152 92152-1571 5
BOLT,FLANGED,6X20 92154 92154-7737 1
SCREW,TAPPING,6X16 92172 92172-1470 7
BOLT-FLANGED,6X14 130 130BA0614 4
