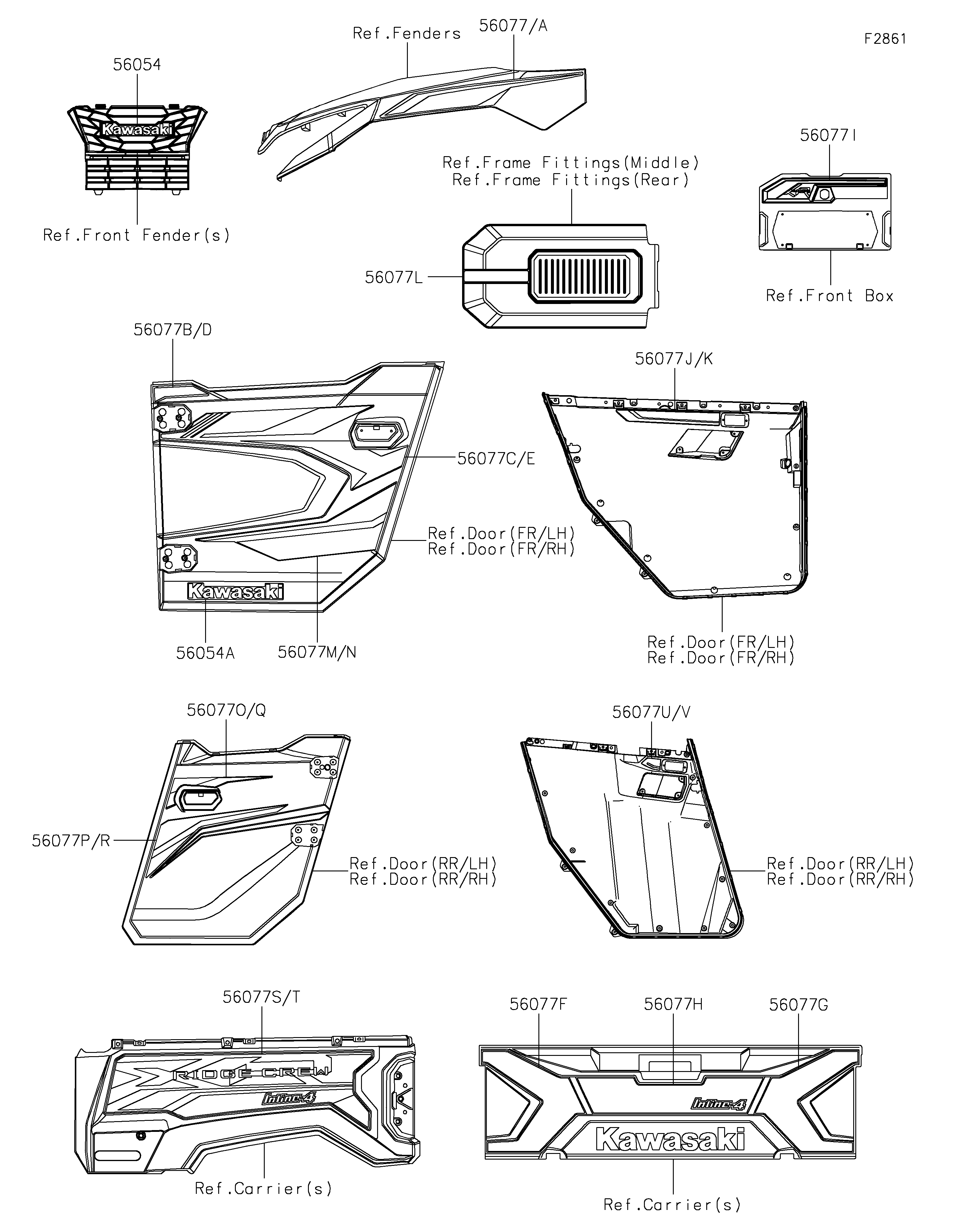

2025 RIDGE XR CREW - Decals(Gray)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077J
56077K
56077L
56077M
56077N
56077O
56077P
56077Q
56077R
56077S
56077T
56077U
56077V
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,KAWASAKI 56054 56054-3890 1
MARK,DOOR COVER,KAWASAKI 56054A 56054-4062 2
PATTERN,FR FENDER,LH 56077 56077-1133 1
PATTERN,FR FENDER,RH 56077A 56077-1134 1
PATTERN,DOOR COVER,LH,UPP 56077B 56077-1135 1
PATTERN,DOOR COVER,LH,CNT 56077C 56077-1136 1
PATTERN,DOOR COVER,RH,UPP 56077D 56077-1138 1
PATTERN,DOOR COVER,RH,CNT 56077E 56077-1139 1
PATTERN,TAIL GATE,LH 56077F 56077-1143 1
PATTERN,TAIL GATE,RH 56077G 56077-1144 1
PATTERN,TAIL GATE,CNT 56077H 56077-1145 1
PATTERN,PANEL COVER 56077I 56077-1146 1
PATTERN,DOOR COVER,LH,INNER 56077J 56077-1147 1
PATTERN,DOOR COVER,RH,INNER 56077K 56077-1148 1
PATTERN,CONSOLE COVER 56077L 56077-1149 2
PATTERN,FR DOOR COVER,LH,LWR 56077M 56077-2404 1
PATTERN,FR DOOR COVER,RH,LWR 56077N 56077-2406 1
PATTERN,RR DOOR COVER,LH,UPP 56077O 56077-2407 1
PATTERN,RR DOOR COVER,LH,LWR 56077P 56077-2408 1
PATTERN,RR DOOR COVER,RH,UPP 56077Q 56077-2409 1
PATTERN,RR DOOR COVER,RH,LWR 56077R 56077-2410 1
PATTERN,RR FENDER,LH 56077S 56077-2411 1
PATTERN,RR FENDER,RH 56077T 56077-2412 1
PATTERN,RR INNER DOOR,LH 56077U 56077-2414 1
PATTERN,RR INNER DOOR,RH 56077V 56077-2415 1
